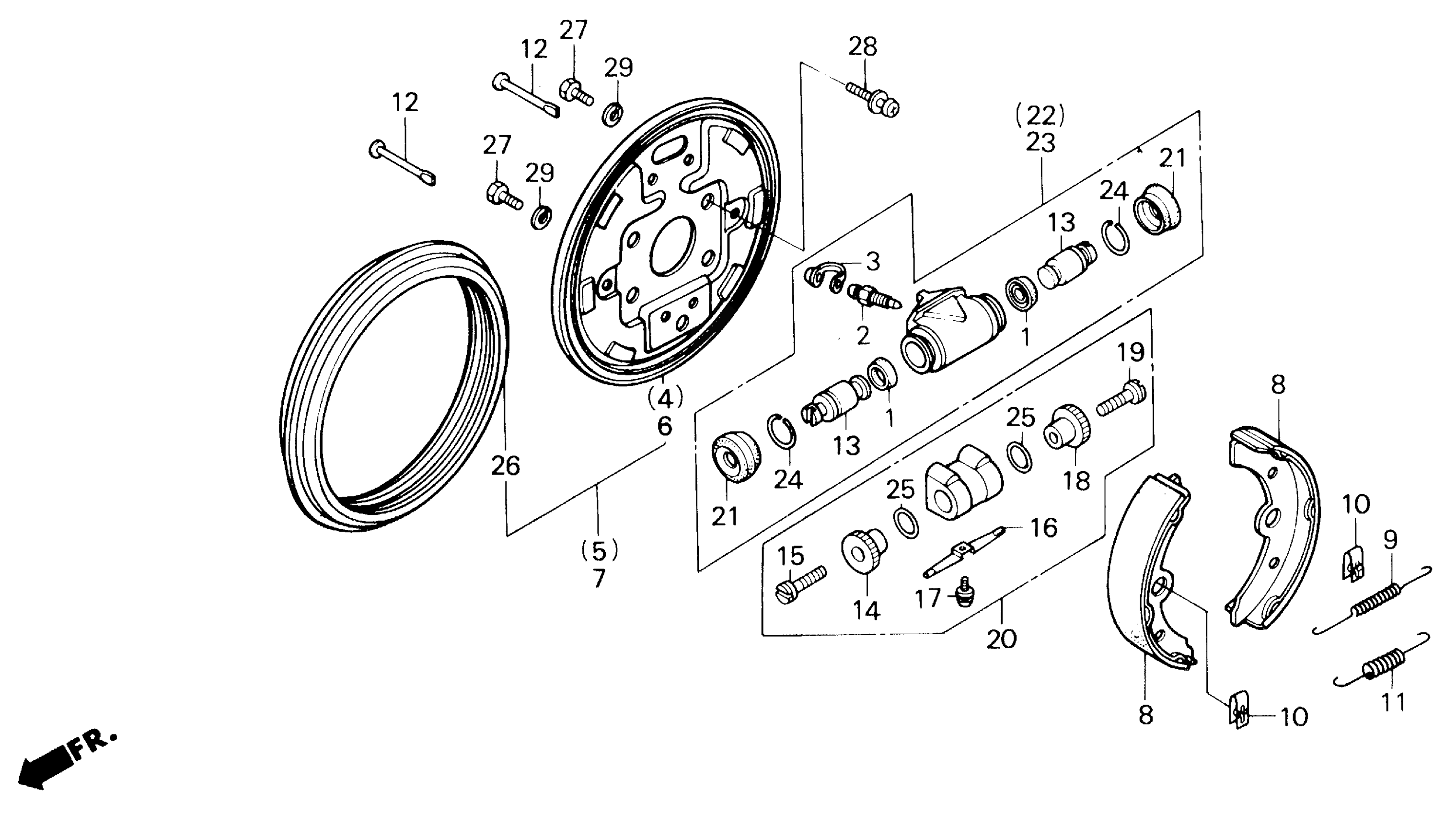

Honda TRX250A (87) FOURTRAX 250, JPN, VIN# JH3TE060-HC200001 TO JH3TE060-HC228151 FRONT BRAKE PANEL Diagram

#

Description
Price

NI

SHOE KIT, BRAKE

451A5-VM0-771

Unavailable

1

CUP, PISTON

43341-602-003

$5.27

2

SCREW, BLEEDER

43352-568-003

$7.95

3

CAP, BLEEDER

43353-461-771

$5.05

5

PLATE, R. BACK

45110-HA8-770

Unavailable

7

PLATE, L. BACK

45120-HA8-770

Unavailable

8

SHOE (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45151-VM0-771

Unavailable

9

SPRING A, BRAKE

45171-VM0-003

Unavailable

10

SPRING, SHOE CLAMP This part replaces 45172-SA0-003.

45172-S04-003

$1.80

10

SPRING, SHOE CLAMP

45172-S04-003

$1.80

11

BRAKE, SPRING B

45173-VM0-003

Unavailable

12

PIN, TENSIONER

45175-VM0-003

$3.77

13

PISTON, WHEEL CYLINDER

45314-VM0-003

Unavailable

14

NUT, R. ADJUSTER

45316-VM0-003

$9.18

15

SCREW, R. FR. ADJUSTING

45317-634-013

$5.78

16

SPRING, LOCK

45318-VM0-003

Unavailable

17

SCREW-WASHER (4X6)

45319-634-003

$2.48

18

NUT, L. ADJUSTER

45336-VM0-003

$9.74

19

SCREW, L. ADJUSTING

45337-634-013

$5.78

20

ADJUSTER ASSY.

45340-HA8-003

Unavailable

21

BOOT, WHEEL CYLINDER

45342-VM0-003

Unavailable

22

CYLINDER ASSY., R.

45350-HA8-003

Unavailable

23

CYLINDER ASSY., L.

45370-HA8-003

Unavailable

24

CLIP, PISTON

90651-VM0-003

Unavailable

25

O-RING (14X1.5)

91351-VM0-003

$2.61

26

SEAL, FR. BRAKE (NOT AVAILABLE)

91751-HA8-770

Unavailable

27

BOLT, HEX. (6X12) This part replaces 92000-06012-0H.

92101-06012-0H

$1.49

27

BOLT, HEX. (6X12) This part replaces 92000-06012-08.

92101-06012-0H

$1.49

27

BOLT, HEX. (6X20)

92101-06012-0H

$1.49

28

BOLT-WASHER (8X16)

93402-08016-08

$2.05

28

BOLT-WASHER (8X16) This part replaces 93492-08016-08.

93402-08016-08

$2.05

29

WASHER, SPRING (6MM)

94111-06800

$1.49
