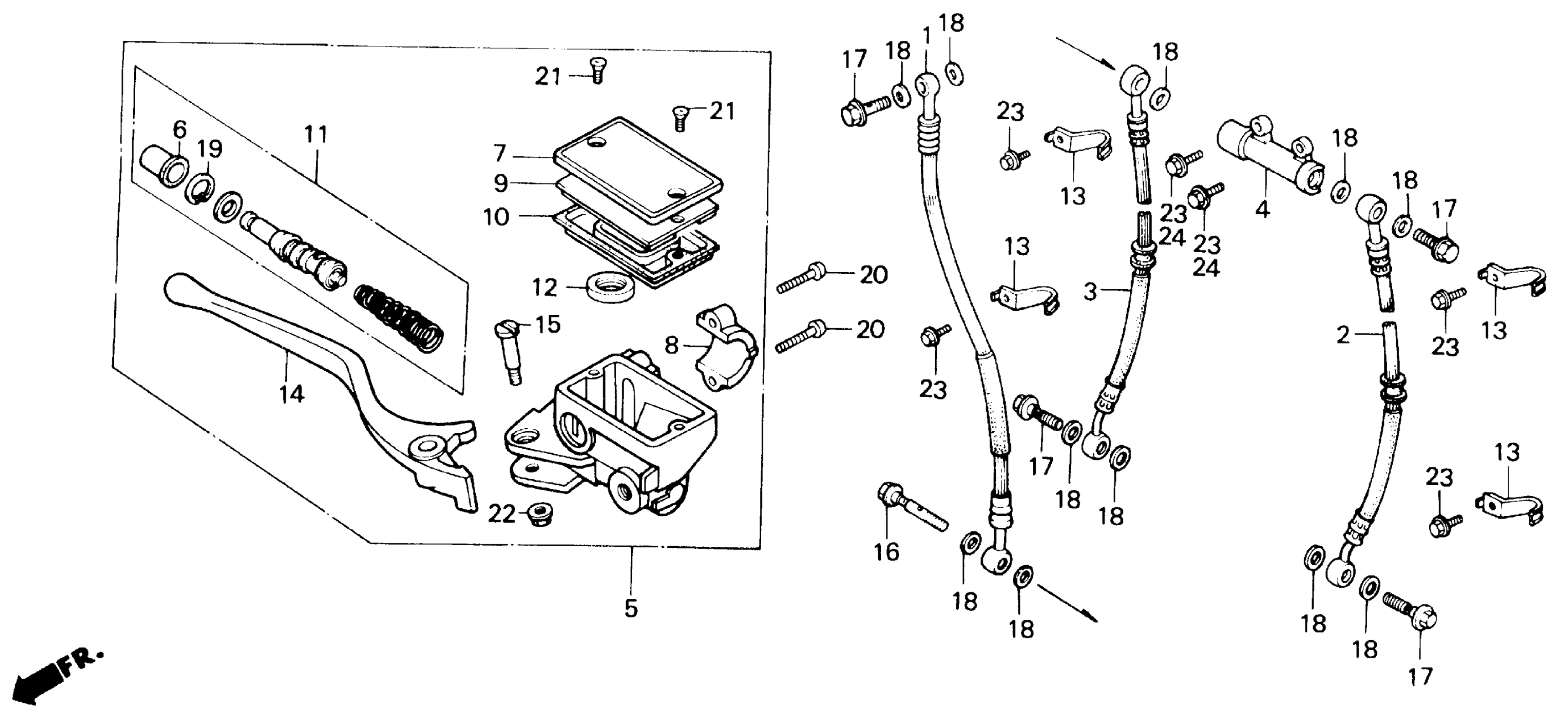

Honda TRX250A (87) FOURTRAX 250, JPN, VIN# JH3TE060-HC200001 TO JH3TE060-HC228151 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

HOSE A, FR. BRAKE (NOT AVAILABLE)

45123-HA8-013

Unavailable

2

HOSE, L. FR. BRAKE (NOT AVAILABLE)

45126-HA8-003

Unavailable

3

HOSE, R. FR. BRAKE (NOT AVAILABLE)

45127-HA8-003

Unavailable

4

JOINT, TWO-WAY (NISSIN) (NOT AVAILABLE)

45127-MA1-003

Unavailable

5

MASTER CYLINDER ASSY., FR. BRAKE

45500-HA8-771

Unavailable

6

BOOT

45504-410-003

$12.16

7

CAP, MASTER CYLINDER

45513-KE5-026

$41.77

8

HOLDER, MASTER CYLINDER

45517-MA5-671

$29.30

9

PLATE, DIAPHRAGM

45518-MB4-671

$12.13

10

DIAPHRAGM

45520-MA5-672

$18.13

11

MASTER CYLINDER SET

45530-HA8-771

$40.36

12

SEPARATOR

46666-961-013

$8.68

13

CLAMP, FR. BRAKE HOSE

51205-HA8-000

Unavailable

14

LEVER, R. HANDLE

53175-HA8-680

$29.11

15

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

16

BOLT, OIL (10X34) This part replaces 90145-MG5-670.

90145-MR8-014

$7.28

16

BOLT, OIL (10X34) This part replaces 90145-MR8-004.

90145-MR8-014

$7.28

17

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

17

BOLT, OIL (10X22)

90145-KM3-751

$11.02

18

WASHER, OIL BOLT

90545-300-000

$3.99

19

CIRCLIP

90651-MA5-671

$2.66

20

SCREW, PAN (6X22)

93500-06022-0A

$1.49

21

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

21

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

22

NUT, FLANGE (6MM)

94050-06000

$1.49

23

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

23

BOLT, FLANGE (6X10) This part replaces 95900-06010-07.

95701-06010-07

$1.62

24

BOLT, FLANGE (6X20) This part replaces 95700-06020-08.

95701-06020-08

$1.49

24

BOLT, FLANGE (6X20)

95701-06020-08

$1.49

24

BOLT, FLANGE (6X20) This part replaces 95900-06020-08.

95701-06020-08

$1.49
