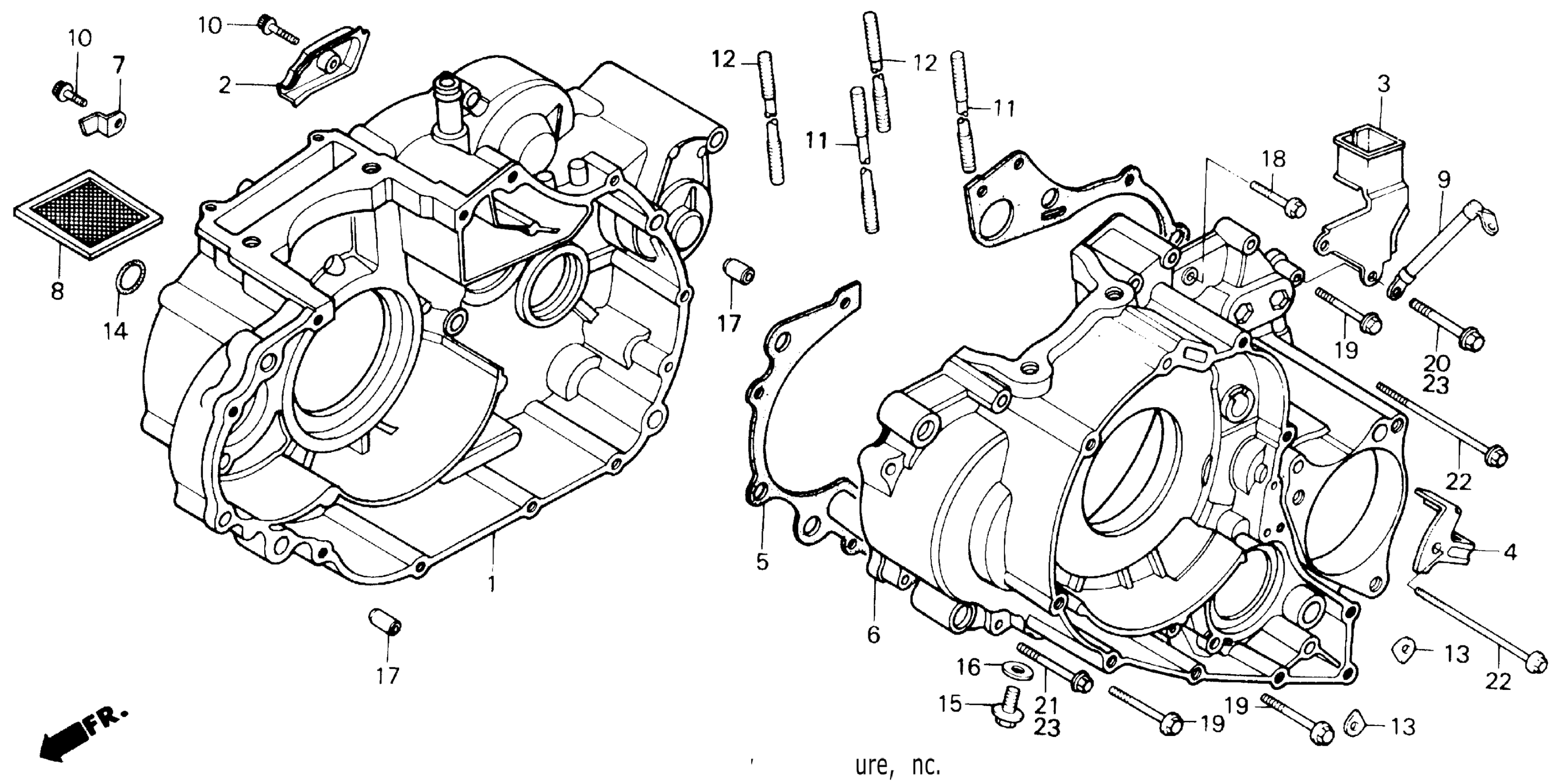

Honda TRX250A (87) FOURTRAX 250, JPN, VIN# JH3TE060-HC200001 TO JH3TE060-HC228151 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R.

11100-HA0-000

Unavailable

2

PLATE, BREATHER (NOT AVAILABLE)

11104-HA0-000

Unavailable

3

CLAMP, BREATHER TUBE (NOT AVAILABLE)

11106-HA0-000

Unavailable

4

CLAMP B, BREATHER TUBE

11107-HA0-680

Unavailable

5

GASKET, CRANKCASE (NOT AVAILABLE) This part replaces 11191-HA0-000.

11191-HC5-740

Unavailable

5

GASKET, CRANKCASE (NOT AVAILABLE) This part replaces 11191-HA7-306.

11191-HC5-740

Unavailable

5

GASKET, CRANKCASE (NOT AVAILABLE) This part replaces 11191-HA7-670.

11191-HC5-740

Unavailable

5

GASKET, CRANKCASE

11191-HC5-740

Unavailable

6

CRANKCASE, L. (NOT AVAILABLE)

11200-HA0-000

Unavailable

7

HOLDER, CHAIN GUIDE

14625-HA0-000

Unavailable

8

SCREEN, OIL FILTER

15421-428-000

$17.82

9

CABLE, BATTERY GROUND

32601-HA8-680

Unavailable

10

BOLT, SOCKET (6X12)

90003-HA0-003

$2.61

11

BOLT, STUD (10X156)

90031-HA0-000

Unavailable

12

BOLT, STUD (10X166)

90032-HA0-000

Unavailable

13

PLATE, BEARING HOLDER

90441-HA0-000

Unavailable

14

O-RING (17.0X2.5) (ARAI)

91333-KE5-003

$2.13

15

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

16

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

17

PIN A, DOWEL (10X16)

94301-10160

$2.28

18

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

19

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

22

BOLT, FLANGE (6X60)

96001-06060-00

$2.06

23

BOLT, FLANGE (6X45)

96001-06045-00

$1.95
