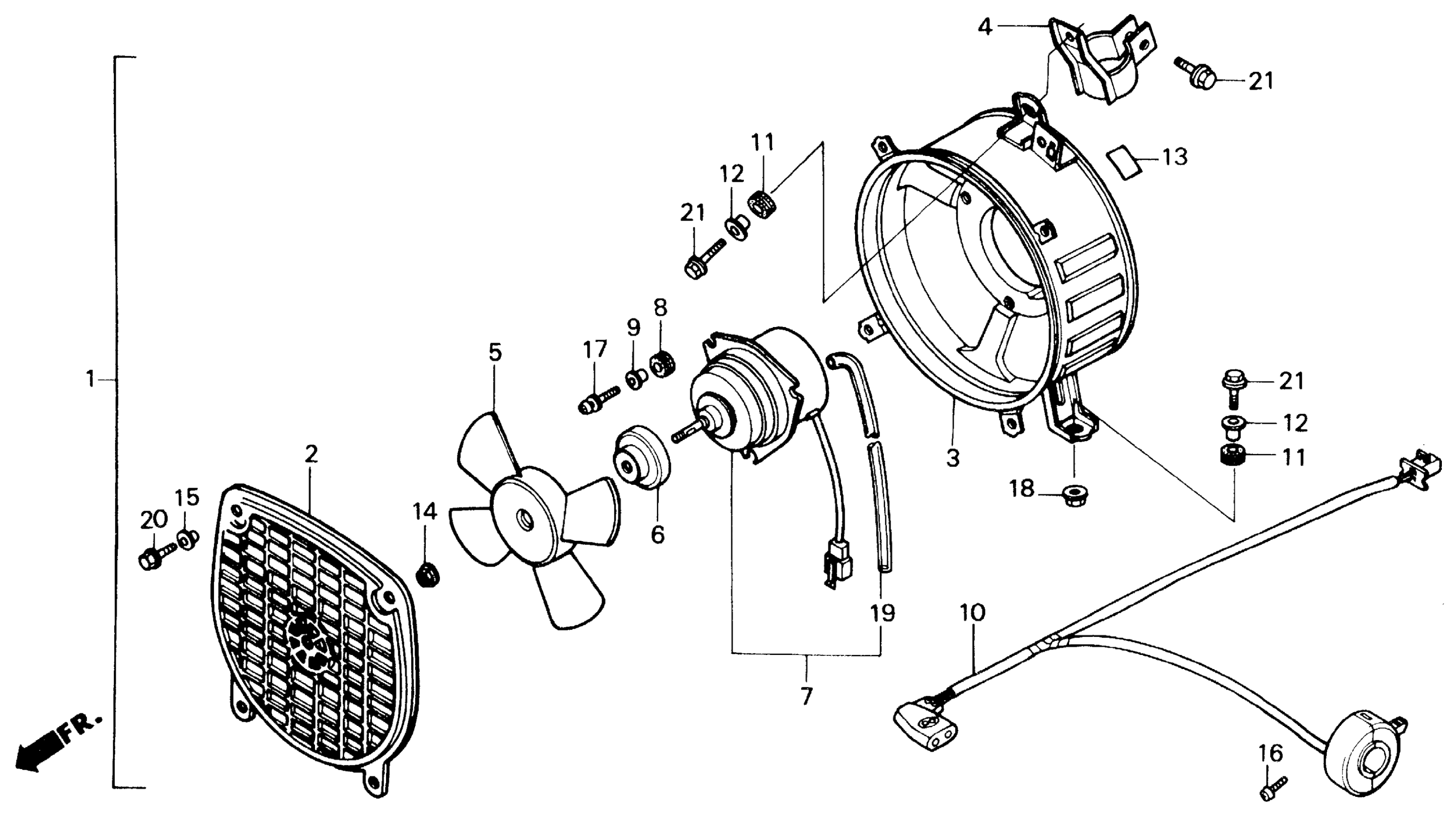

Honda TRX250A (87) FOURTRAX 250, JPN, VIN# JH3TE060-HC200001 TO JH3TE060-HC228151 COOLING FAN KIT Diagram

#

Description
Price

1

FAN KIT, COOLING

19000-HA8-305

Unavailable

2

PROTECTOR, FAN (NOT AVAILABLE)

19014-VM5-305

Unavailable

3

SHROUD

19015-HA8-305

Unavailable

4

BAND COMP.,SHROUD This part replaces 19019-HA8-315.

19019-HA8-305

Unavailable

5

FAN, COOLING (TOYO)

19020-PA0-004

$84.59

6

WASHER, CUP

19021-VM5-305

$20.30

7

MOTOR ASSY., COOLING FAN This part replaces 19030-HA8-305.

19030-HA8-315

Unavailable

7

MOTOR ASSY., COOLING FAN

19030-HA8-315

Unavailable

8

GROMMET

19031-HA7-671

$4.04

8

GROMMET This part replaces 19041-MB6-003.

19031-HA7-671

$4.04

9

COLLAR This part replaces 19044-MB6-003.

19032-HA7-671

$3.48

10

SWITCH ASSY., FAN MOTOR

35260-VM5-305

Unavailable

11

RUBBER, BATTERY BOX SETTING

50329-HA6-000

Unavailable

12

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

13

LABEL, FAN WARNING

87516-HA8-305

Unavailable

14

NUT, SPECIAL (5MM) (MITSUBA)

90311-MB6-003

$4.70

15

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.84

16

SCREW, PAN (4X16)

93500-04016-0G

$1.49

17

SCREW-WASHER (4X16)

93891-04016-07

$1.49

18

NUT, FLANGE (6MM)

94050-06080

$1.49

19

BULK HOSE, VINYL (4X7X8000) (4X7X700)

95003-07008-60M

$24.47

20

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

20

BOLT, FLANGE (6X12) This part replaces 95900-06012-07.

95701-06012-07

$1.62

21

BOLT, FLANGE (6X20) This part replaces 96000-06020-07.

96001-06020-07

$1.49

21

BOLT, FLANGE (6X20)

96001-06020-07

$1.49
