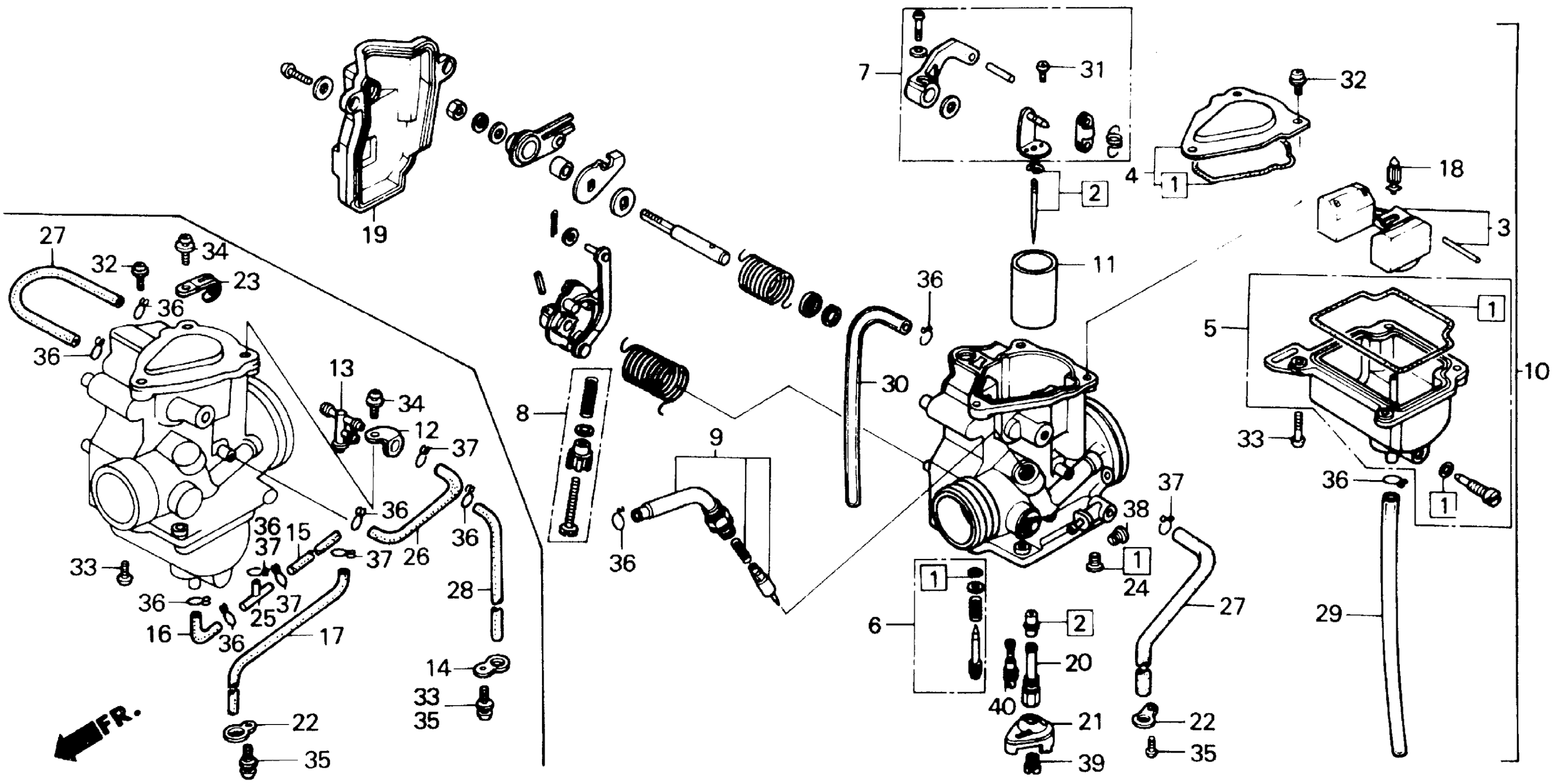

Honda TRX250A (87) FOURTRAX 250, JPN, VIN# JH3TE060-HC200001 TO JH3TE060-HC228151 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-HA0-681

$22.67

2

NEEDLE SET, JET

16012-HA8-003

Unavailable

3

FLOAT SET This part replaces 16013-HA0-003.

16013-HN5-671

$43.09

3

FLOAT SET

16013-HN5-671

$43.09

4

TOP SET This part replaces 16014-HA0-003.

16014-HM3-L00

Unavailable

4

TOP SET

16014-HM3-L00

Unavailable

5

CHAMBER SET, FLOAT

16015-HA0-682

Unavailable

6

SCREW SET This part replaces 16016-HA8-681.

16016-HM5-730

Unavailable

6

SCREW SET

16016-HM5-730

Unavailable

7

ARM SET, LINK | Use up to Frame SN QA09A B This part replaces 16018-HA0-003.

16018-HA7-771

Unavailable

7

ARM SET, LINK | Use up to Frame SN QA09A B This part replaces 16018-HA7-671.

16018-HA7-771

Unavailable

7

ARM SET, LINK | Use from Frame SN QA09A C

16018-HA8-681

Unavailable

8

SCREW SET This part replaces 16028-KR3-671.

16028-KR3-980

$46.87

8

SCREW SET This part replaces 16028-MB0-671.

16028-KR3-980

$46.87

9

VALVE SET, STARTER

16046-HA0-681

Unavailable

10

CARBURETOR ASSY. (NOT AVAILABLE) | Use up to Frame SN HC223193 This part replaces 16100-HA8-681.

16100-HA8-682

Unavailable

10

CARBURETOR ASSY. (NOT AVAILABLE) | Use from Frame SN HC223194

16100-HA8-682

Unavailable

11

PISTON, VACUUM

16111-HA0-003

Unavailable

12

BINDER

16119-HA8-003

Unavailable

13

JOINT

16133-HA0-003

Unavailable

14

BINDER | Use up to Frame SN QA09A B

16134-HA0-681

Unavailable

15

PIPE, OVERFLOW This part replaces 16143-HA8-003.

16198-ML4-405

Unavailable

15

PIPE, OVERFLOW This part replaces 16143-HA8-405.

16198-ML4-405

Unavailable

16

TUBE, FUEL

16143-PE1-761

Unavailable

17

PIPE, OVERFLOW | Use up to Frame SN QA09A B This part replaces 16143-HA8-405.

16198-ML4-405

Unavailable

17

PIPE, OVERFLOW | Use up to Frame SN QA09A B This part replaces 16144-HA8-003.

16198-ML4-405

Unavailable

17

TUBE | Use from Frame SN QA09A C

16199-HA8-405

Unavailable

17

TUBE | Use from Frame SN QA09A C This part replaces 16199-HA8-681.

16199-HA8-405

Unavailable

18

VALVE, FLOAT

16155-397-971

$41.45

19

BODY, COVER

16160-HA0-003

Unavailable

20

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-HA8-003

Unavailable

21

HOLDER, JET This part replaces 16168-HA5-003.

16168-HC4-003

$12.24

21

HOLDER, JET This part replaces 16168-HA5-004.

16168-HC4-003

$12.24

21

HOLDER, JET

16168-HC4-003

$12.24

22

BINDER

16179-HA0-003

$12.85

23

BINDER

16179-HA8-003

Unavailable

24

CAP, SEALING (NOT AVAILABLE)

16179-HA0-681

Unavailable

25

T-JOINT This part replaces 16180-MB2-881.

17194-MN5-000

$12.39

26

TUBE, AIR VENT (NOT AVAILABLE)

16199-HA0-681

Unavailable

27

TUBE, AIR VENT This part replaces 16199-HA8-003.

16199-KR3-405

Unavailable

28

TUBE, FUEL | Use up to Frame SN QA09A B This part replaces 16199-187-003.

16199-KG4-405

$9.49

28

TUBE, VINYL | Use from Frame SN QA09A C

16198-GY6-405

Unavailable

28

TUBE, VINYL | Use from Frame SN QA09A C This part replaces 16198-HA8-681.

16198-GY6-405

Unavailable

31

SCREW, PAN (3X6)

93500-03006-0H

$1.49

31

SCREW, PAN (3X6) This part replaces 93500-03006-1H.

93500-03006-0H

$1.49

32

SCREW, PAN (4X8)

93500-04008-0H

$1.49

32

SCREW, PAN (4X8) This part replaces 93500-04008-1H.

93500-04008-0H

$1.49

33

SCREW, PAN (4X14) | Use up to Frame SN QA09A B

93500-04014-0H

$1.49

33

SCREW, PAN (4X14) | Use from Frame SN QA09A C

93500-04014-0H

$1.49

33

SCREW, PAN (4X14) | Use up to Frame SN QA09A B This part replaces 93500-04014-1H.

93500-04014-0H

$1.49

33

SCREW, PAN (4X14) | Use from Frame SN QA09A C This part replaces 93500-04014-1H.

93500-04014-0H

$1.49

34

SCREW-WASHER (4X10)

93892-04010-08

$1.49

34

SCREW-WASHER (4X10) This part replaces 93892-04010-18.

93892-04010-08

$1.49

35

SCREW-WASHER (4X16) | Use up to Frame SN QA09A B

93892-04016-08

$1.49

35

SCREW-WASHER (4X16) | Use from Frame SN QA09A C

93892-04016-08

$1.49

35

SCREW-WASHER (4X16) | Use up to Frame SN QA09A B This part replaces 93892-04016-1H.

93892-04016-08

$1.49

35

SCREW-WASHER (4X16) | Use from Frame SN QA09A C This part replaces 93892-04016-1H.

93892-04016-08

$1.49

35

SCREW-WASHER (4X16) | Use up to Frame SN QA09A B This part replaces 93892-04016-18.

93892-04016-08

$1.49

35

SCREW-WASHER (4X16) | Use from Frame SN QA09A C This part replaces 93892-04016-18.

93892-04016-08

$1.49

36

CLIP, TUBE (B7) | Use up to Frame SN QA09A B

95002-02070

$1.80

36

CLIP, TUBE (B7) | Use from Frame SN QA09A C

95002-02070

$1.80

37

CLIP, TUBE (B8) | Use up to Frame SN QA09A B

95002-02080

$1.80

37

CLIP, TUBE (B8) | Use from Frame SN QA09A C

95002-02080

$1.80

38

JET, BY-STARTER (#80) This part replaces 99101-HA5-0800.

99112-HC4-0800

Unavailable

38

JET, BY-STARTER (#80)

99112-HC4-0800

Unavailable

39

JET (#128) This part replaces 99101-GHB-1280.

99101-PH9-1280

$6.58

39

JET (#128) This part replaces 99101-393-1280.

99101-PH9-1280

$6.58

40

JET, SLOW (#38)

99103-MA4-0380

$27.62
