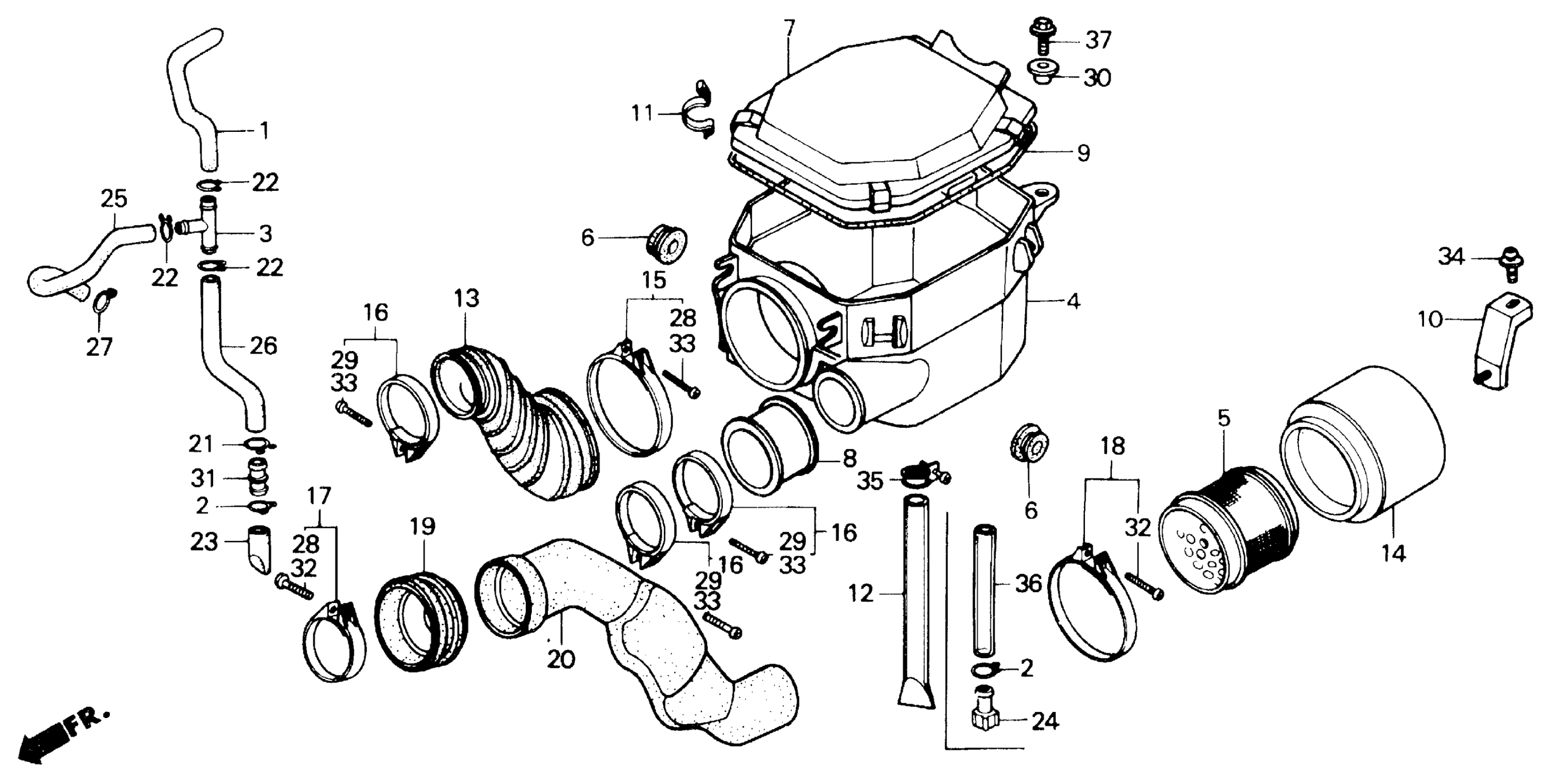

Honda TRX250A (87) FOURTRAX 250, JPN, VIN# JH3TE060-HC200001 TO JH3TE060-HC228151 AIR CLEANER Diagram

#

Description
Price

1

TUBE, BREATHER (B) (NOT AVAILABLE)

15762-HA8-000

Unavailable

2

CLIP, BREATHER TUBE

15772-292-010

$2.92

3

JOINT, BREATHER THREE-WAY

15772-376-000

$19.49

4

HOUSING, AIR CLEANER (NOT AVAILABLE)

17210-HA8-770

Unavailable

5

BODY, AIR CLEANER (NOT AVAILABLE)

17211-HA8-770

Unavailable

6

RUBBER, AIR CLEANER HOUSING SETTING (NOT AVAILABLE)

17216-965-000

Unavailable

7

LID, AIR CLEANER HOUSING (NOT AVAILABLE)

17217-HA6-000

Unavailable

8

TUBE, AIR CLEANER IN. (NOT AVAILABLE)

17218-HA8-000

Unavailable

9

SEAL, AIR CLEANER COVER

17219-HA2-405

$5.96

9

SEAL, AIR CLEANER COVER This part replaces 17219-HA6-000.

17219-HA2-405

$5.96

10

STAY, AIR CLEANER ELEMENT

17221-HA6-000

Unavailable

11

SPRING, AIR CLEANER LID SETTING

17223-HB3-003

$7.88

12

TUBE, VINYL (11X15X180) (NOT AVAILABLE)

17224-HA0-000

Unavailable

13

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE)

17253-HA6-010

Unavailable

14

ELEMENT, AIR CLEANER

17254-964-003

$24.74

15

BAND, CONNECTING TUBE (NOT AVAILABLE) This part replaces 17256-HA8-680.

17256-HA6-680

Unavailable

16

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17257-HA0-000.

95018-60250

$6.25

16

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17257-HA0-680.

95018-60250

$6.25

17

BAND B, AIR CLEANER CONNECTING TUBE (NOT AVAILABLE) This part replaces 17257-HA8-680.

17257-357-000

Unavailable

18

BAND, AIR CLEANER

17257-HB5-000

$14.02

18

BAND, AIR CLEANER This part replaces 17257-360-700.

17257-HB5-000

$14.02

19

SEAL, AIR CLEANER DUCT (NOT AVAILABLE)

17258-HA8-000

Unavailable

20

DUCT, AIR CLEANER (NOT AVAILABLE)

17259-HA8-000

Unavailable

21

CLIP, BREATHER TUBE

17316-HA0-000

$4.74

22

CLIP, BREATHER TUBE

17316-611-000

$9.23

23

TUBE, DRAIN This part replaces 17358-HA0-680.

17358-HM8-000

$4.94

23

TUBE, DRAIN

17358-HM8-000

$4.94

25

TUBE, BREATHER (UPPER) (NOT AVAILABLE)

17562-965-000

Unavailable

26

BULK HOSE, VACUUM (12X1000) (12X180)

95005-12001-20M

$34.11

27

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

28

SCREW, PAN (4X20) (NOT AVAILABLE)

90106-HA0-680

Unavailable

29

SCREW, PAN (4X25)

90107-HA0-680

$2.52

30

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.84

31

JOINT, TUBE

91463-393-780

$1.80

32

SCREW, PAN (4X20)

93500-04020-0A

$1.49

34

SCREW-WASHER (6X12)

93891-06012-08

$1.49

35

CLIP, TUBE (A16)

95002-01160

$4.05

37

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

37

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
