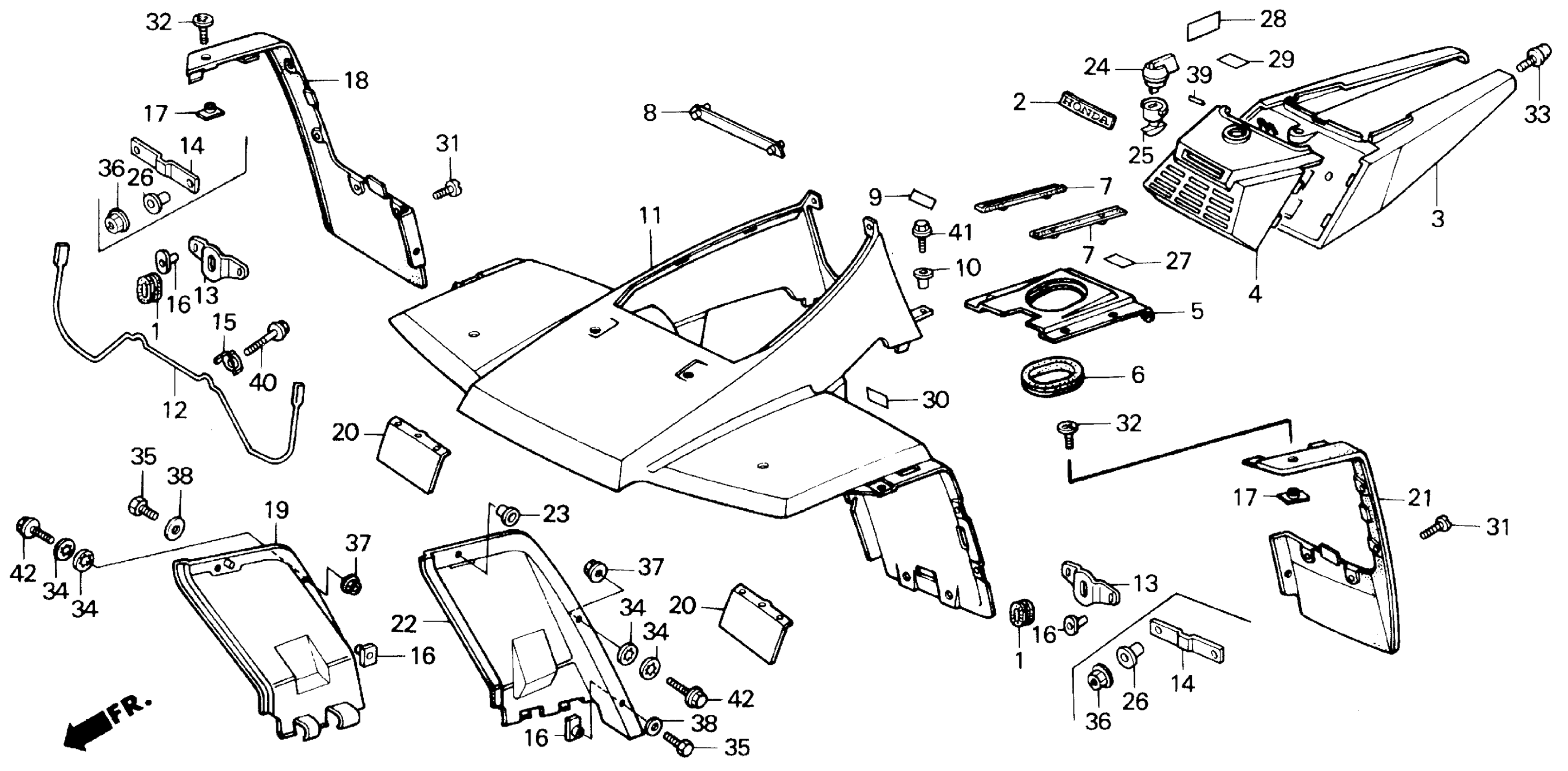

Honda TRX250A (86) FOURTRAX 250, JPN, VIN# JH3TE060-GC100011 TO JH3TE060-GC175567 FRONT FENDER Diagram

#

Description
Price

1

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

2

EMBLEM, TANK COVER (NOT AVAILABLE)

17609-HA8-000

Unavailable

3

COVER, FUEL TANK *NH53L* (SPACY GRAY) (NOT AVAILABLE)

17610-HA8-680ZA

Unavailable

4

LID, TANK COVER *NH53L* (SPACY GRAY) (NOT AVAILABLE)

17611-HA8-680ZA

Unavailable

5

COVER, TANK CENTER *NH53L* (SPACY GRAY) (NOT AVAILABLE)

17612-HA8-680ZA

Unavailable

6

RUBBER, CENTER (NOT AVAILABLE)

17613-VM5-000

Unavailable

7

RUBBER, SIDE

17614-VM5-000

Unavailable

8

STAY, TANK COVER

17615-HA8-000

Unavailable

9

LABEL, SUB-FUSE

38216-HA8-000

Unavailable

10

COLLAR, CHAIN GUARD

52159-KB7-000

$6.34

11

FENDER, FR. *R109* (PASSION RED) This part replaces 61100-HA8-681ZA.

61100-HA8-770ZA

Unavailable

11

FENDER, FR. *R109* (PASSION RED)

61100-HA8-770ZA

Unavailable

12

STAY, FENDER SUPPORT (NOT AVAILABLE)

61101-HA8-000

Unavailable

13

PLATE, FR. FENDER (NOT AVAILABLE)

61102-HA8-000

Unavailable

15

WASHER, FENDER SUPPORT

61103-VM5-000

Unavailable

16

NUT, SPECIAL (6X8.5)

61304-HA8-680

Unavailable

17

NUT, SPECIAL (6X7)

61304-958-003

$3.24

18

SPLASH GUARD, R. FR. *NH105* (MAT BLACK)

61861-VM5-000ZA

Unavailable

19

FENDER, R. FR. (INNER) *NH105* (MAT BLACK) (NOT AVAILABLE)

61862-HA8-680ZA

Unavailable

20

SPLASH GUARD, TOP

61863-HA8-680

Unavailable

21

SPLASH GUARD, L. FR. *NH105* (MAT BLACK)

61866-VM5-000ZA

Unavailable

22

FENDER, L. FR. (INNER) *NH105* (MAT BLACK) (NOT AVAILABLE)

61867-HA8-680ZA

Unavailable

23

COLLAR, LOCK SETTING

83119-MG9-000

$5.90

24

BODY, KNOB

83507-HA8-000

Unavailable

25

STOPPER, KEY BODY

83508-965-000

Unavailable

27

LABEL, USE CAUTION (NOT AVAILABLE) This part replaces 87504-HA8-680.

87504-HA0-771

Unavailable

28

LABEL, HELMET HOLDER (NOT AVAILABLE)

87511-VM6-680

Unavailable

29

LABEL, TANK COVER (LID)

87514-HA8-680

Unavailable

31

SCREW,FRONT COVER This part replaces 90102-VM4-003.

64321-GBG-760

Unavailable

32

SCREW, SPLASH GUARD

90103-VM4-000

$10.13

32

SCREW, SPLASH GUARD

90103-VM4-003

$10.13

32

SCREW, SPLASH GUARD

90120-HA7-670

$10.13

33

SCREW-WASHER (5X8) This part replaces 90110-VM5-000.

93894-05008-07

$1.49

34

WASHER, LOCK (6MM)

90432-898-000

$1.49

35

BOLT, HEX. (6X12) This part replaces 92000-06012-0H.

92101-06012-0H

$1.49

35

BOLT, HEX. (6X12) This part replaces 92000-06012-08.

92101-06012-0H

$1.49

35

BOLT, HEX. (6X20)

92101-06012-0H

$1.49

37

NUT, FLANGE (6MM)

94050-06080

$1.49

38

WASHER, PLAIN (6MM)

94103-06800

$1.49

39

PIN, SPRING (2X14)

94305-20142

$1.49

40

BOLT, FLANGE (6X14) This part replaces 95700-06014-08.

95701-06014-08

$1.55

40

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

40

BOLT, FLANGE (6X14) This part replaces 95900-06014-08.

95701-06014-08

$1.55

41

BOLT, FLANGE (6X20) This part replaces 95700-06020-08.

95701-06020-08

$1.49

41

BOLT, FLANGE (6X20)

95701-06020-08

$1.49

42

BOLT, FLANGE (6X14) This part replaces 95700-06014-08.

95701-06014-08

$1.55

42

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

42

BOLT, FLANGE (6X14) This part replaces 95900-06014-08.

95701-06014-08

$1.55
