- TRX250A (86) FOURTRAX 250, JPN, VIN# JH3TE060-GC100011 TO JH3TE060-GC175567
ALTERNATOR

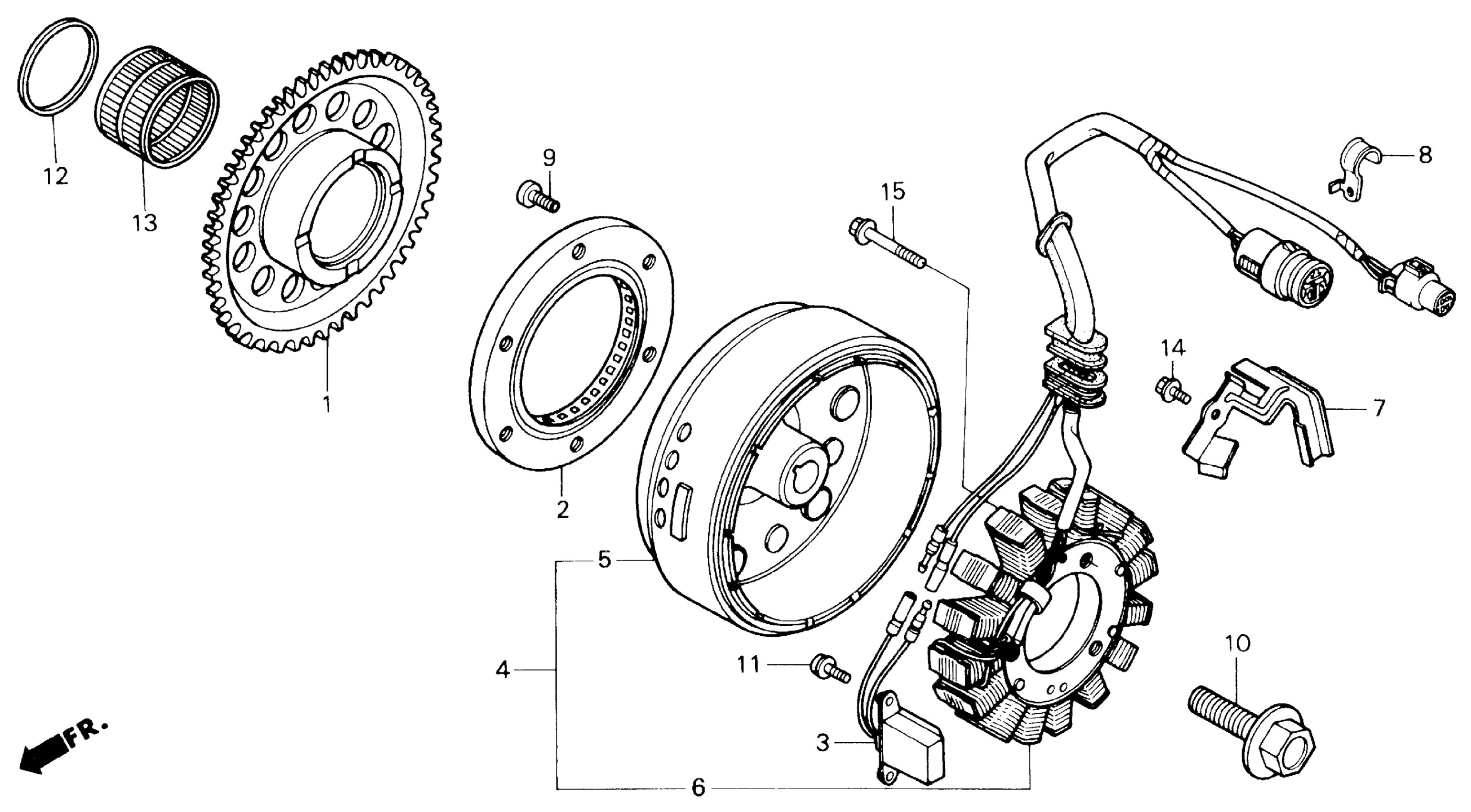

Honda TRX250A (86) FOURTRAX 250, JPN, VIN# JH3TE060-GC100011 TO JH3TE060-GC175567 ALTERNATOR Diagram
#
Description
Price
1
GEAR, STARTING DRIVEN (70T) (NOT AVAILABLE)
28110-HA0-000
Unavailable
2
CLUTCH, STARTING ONE-WAY
28125-HA0-681
Unavailable
4
ALTERNATOR ASSY., FLYWHEEL TYPE (MITSUBA) (NOT AVAILABLE)
31100-HA0-023
Unavailable
4
ALTERNATOR ASSY., FLYWHEEL TYPE (DENSO) (NOT AVAILABLE) This part replaces 31100-HA0-024.
31100-HA0-771
Unavailable
5
FLYWHEEL (MITSUBA)
31110-HA0-003
Unavailable
5
FLYWHEEL (DENSO) This part replaces 31110-HA0-004.
31110-HA0-771
Unavailable
5
FLYWHEEL (DENSO)
31110-HA0-771
Unavailable
6
STATOR (MITSUBA)
31120-HA0-023
Unavailable
6
STATOR (DENSO) This part replaces 31120-HA0-024.
31120-HA0-771
Unavailable
6
STATOR (DENSO)
31120-HA0-771
Unavailable
7
CLAMP, WIRE
32111-HA0-030
Unavailable
8
CLAMP, ALTERNATOR CABLE
32922-HA0-000
Unavailable
9
BOLT, SOCKET (8MM)
90010-HA0-680
Unavailable
10
BOLT, FLANGE (12X45) This part replaces 90023-428-000.
90024-MT3-000
Unavailable
10
BOLT, FLANGE (12X45) This part replaces 90023-HA7-670.
90024-MT3-000
Unavailable
10
BOLT, FLANGE (12X45)
90024-MT3-000
Unavailable
12
WASHER, THRUST (30.1MM)
90458-422-000
Unavailable
13
BEARING, NEEDLE (30X35X26ZW)
91061-KE5-003
Unavailable
14
BOLT, FLANGE (6X12) | Use up to Engine SN 5151530 This part replaces 96000-06012-00.
96001-06012-00
$1.80
