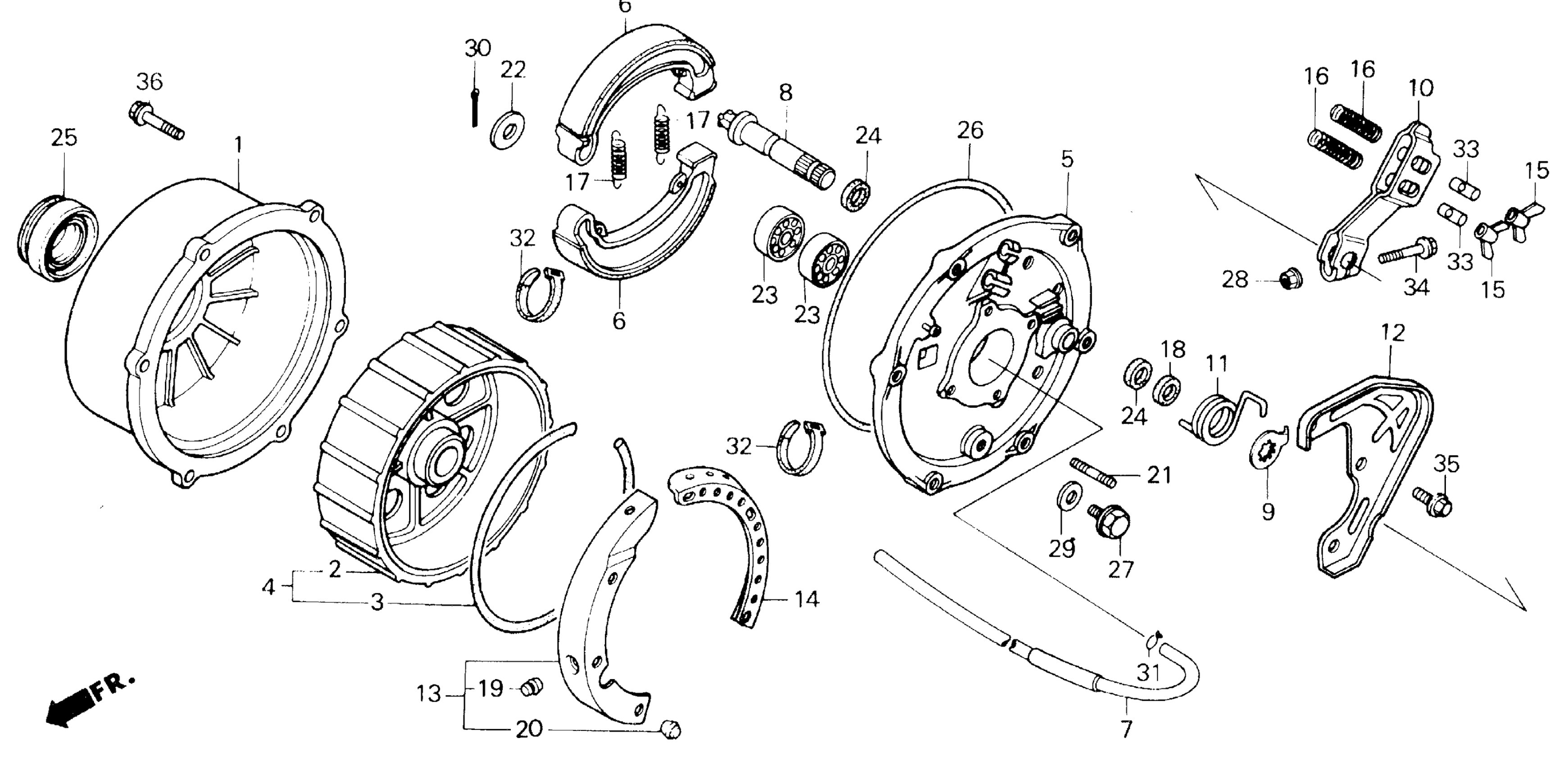

Honda TRX250A (85) FOURTRAX 250, JPN, VIN# JH3TE060-FC000021 TO JH3TE060-FC057385 REAR BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, RR. BRAKE This part replaces 06430-HC4-671.

06430-HM5-A80

$36.79

NI

SHOE SET, RR. BRAKE This part replaces 06430-HC4-901.

06430-HM5-A80

$36.79

NI

SHOE SET, RR. BRAKE

06430-HM5-A80

$36.79

NI

SHOE SET, RR. BRAKE This part replaces 431A2-KG4-006.

06430-HM5-A80

$36.79

1

COVER, RR. BRAKE (NOT AVAILABLE)

40532-HA8-000

Unavailable

2

DRUM, RR. BRAKE

42622-HA8-000

Unavailable

5

PANEL, RR. BRAKE (NOT AVAILABLE)

43100-HA8-000

Unavailable

6

SHOE, RR. BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 43120-KG4-003.

43120-KG4-006

Unavailable

6

SHOE, RR. BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

43120-KG4-006

Unavailable

7

TUBE, BREATHER (3.5X1140)

43122-HA8-000

Unavailable

8

CAM, RR. BRAKE (NOT AVAILABLE)

43141-HA8-000

Unavailable

9

INDICATOR, BRAKE (NOT AVAILABLE)

43145-HA0-000

Unavailable

10

ARM, R. RR. BRAKE (NOT AVAILABLE)

43410-HA0-010

Unavailable

11

SPRING, RR. BRAKE ARM RETURN

43415-HA0-000

Unavailable

13

GUARD, PANEL

43430-HA8-000

Unavailable

14

PLATE, RR. BRAKE SIDE

43431-HA8-000

Unavailable

15

NUT, BRAKE ADJUSTING

43459-HM5-A10

$9.78

15

NUT, BRAKE ADJUSTING This part replaces 43459-VM4-000.

43459-HM5-A10

$9.78

16

SPRING, RR. BRAKE ROD

43467-HA0-000

Unavailable

17

SPRING, FR. BRAKE SHOE

45133-329-000

$2.75

18

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

19

RUBBER B, STOPPER

50354-428-000

$2.75

20

RUBBER C, STOPPER

50355-434-000

$4.45

21

BOLT, STUD (10X28) (NOT AVAILABLE)

90151-HA8-000

Unavailable

22

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

23

BEARING, RADIAL BALL (28X58X16) This part replaces 91057-HA8-004.

91057-HA0-681

$25.73

23

BEARING, RADIAL BALL (28X58X16)

91057-HA0-681

$25.73

24

OIL SEAL (14X20X4) (NIPPON OIL-SEAL)

91208-611-005

$4.35

25

DUST SEAL (41X67X10.5)

91262-HA8-003

Unavailable

26

O-RING (190X3.0) This part replaces 91307-HA8-003.

91311-393-003

Unavailable

26

O-RING (190X3.0)

91311-393-003

Unavailable

27

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

28

NUT, FLANGE (6MM)

94050-06000

$1.49

29

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

30

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

30

PIN, COTTER (2.0X22)

94201-20220

$1.49

30

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

30

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

30

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

30

PIN, COTTER (2.0X35)

94201-20350

$1.49

30

PIN, COTTER (2.0X22)

94201-29220

$1.49

31

CLIP, TUBE (B7)

95002-02070

$1.80

32

BAND B1, CABLE

32161-404-000

$2.23

32

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

33

JOINT, BRAKE ARM

95015-32001

$1.49

34

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

34

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

36

BOLT, FLANGE (6X28) This part replaces 95800-06028-08.

95801-06028-08

$1.73

36

BOLT, FLANGE (6X28)

95801-06028-08

$1.73

36

BOLT, FLANGE (6X28) This part replaces 95900-06028-08.

95801-06028-08

$1.73
