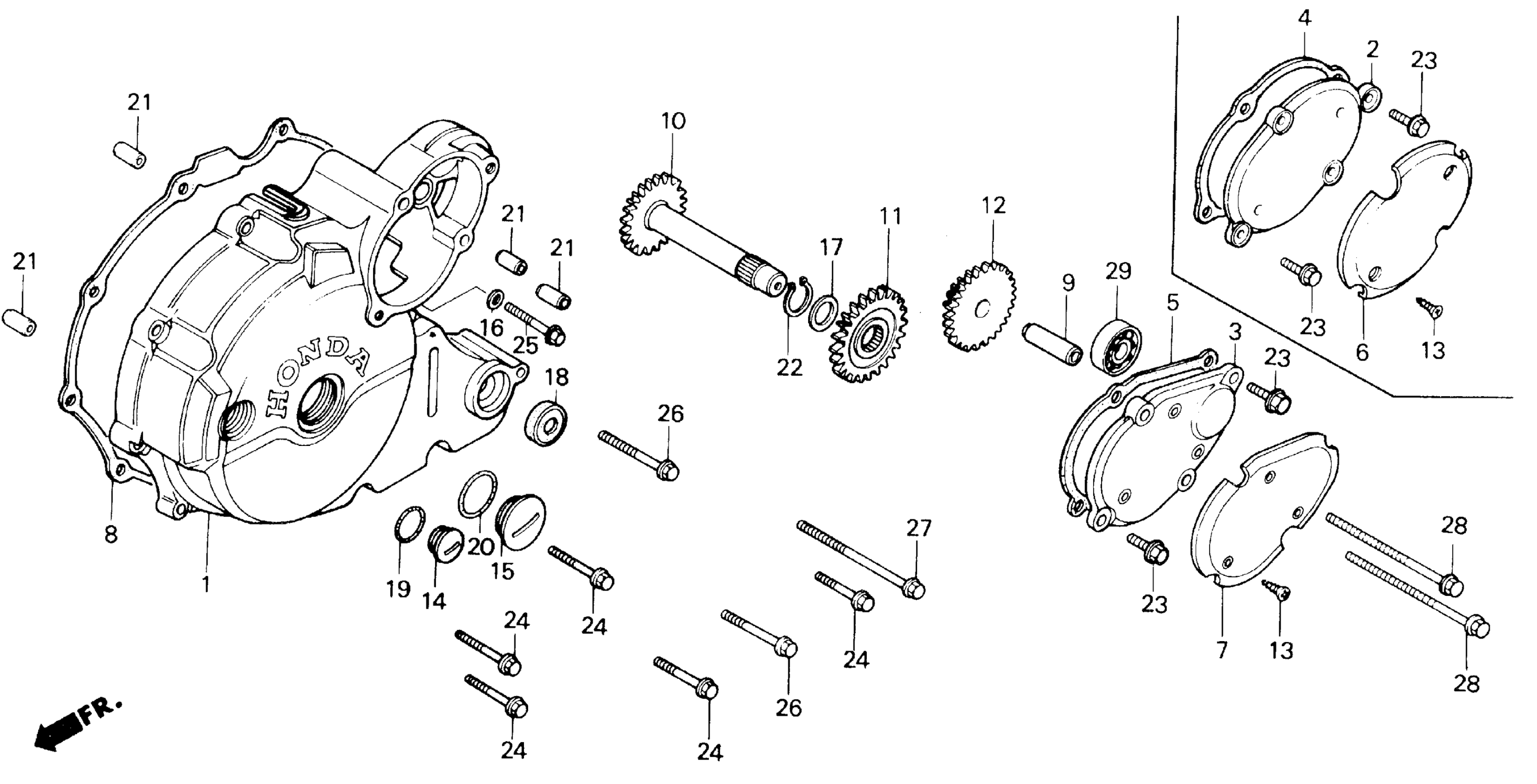

Honda TRX250A (85) FOURTRAX 250, JPN, VIN# JH3TE060-FC000021 TO JH3TE060-FC057385 LEFT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE) This part replaces 11341-HA0-000.

11341-HA6-010

Unavailable

2

COVER, STARTING GEAR (NOT AVAILABLE) | Use up to Engine SN 5004415 This part replaces 11355-HA0-000.

11355-HA0-010

Unavailable

2

COVER, STARTING GEAR (NOT AVAILABLE) | Use from Engine SN 5004416

11355-HA0-010

Unavailable

4

GASKET, STARTING GEAR COVER This part replaces 11356-HA0-010.

11356-HA0-308

$3.88

4

GASKET, STARTING GEAR COVER

11356-HA0-308

$3.88

6

PROTECTOR, STARTING GEAR COVER (NOT AVAILABLE)

11357-HA0-000

Unavailable

8

GASKET, L. CRANKCASE COVER This part replaces 11395-HA0-000.

11395-HC5-740

$17.46

8

GASKET, L. CRANKCASE COVER

11395-HC5-740

$17.46

9

PIN, PISTON This part replaces 13111-GK8-000.

13111-GS7-000

$9.55

9

PIN, PISTON

13111-GS7-000

$9.55

9

PIN, PISTON This part replaces 13111-122-000.

13111-GS7-000

$9.55

10

SHAFT SET, STARTING This part replaces 28130-HA0-000.

28145-HA0-305

Unavailable

10

SHAFT SET, STARTING

28145-HA0-305

Unavailable

11

GEAR SET, STARTING This part replaces 28131-HA0-000.

28135-HA0-315

Unavailable

11

GEAR SET, STARTING This part replaces 28135-HA0-305.

28135-HA0-315

Unavailable

11

GEAR SET, STARTING

28135-HA0-315

Unavailable

12

GEAR SET, STARTING This part replaces 28131-HA0-000.

28135-HA0-315

Unavailable

12

GEAR SET, STARTING This part replaces 28135-HA0-305.

28135-HA0-315

Unavailable

12

GEAR SET, STARTING

28135-HA0-315

Unavailable

12

GEAR SET, STARTING | Use up to Engine SN 5004415 This part replaces 28140-HA0-000.

28135-HA0-315

Unavailable

12

GEAR SET, STARTING This part replaces 28140-HA0-010.

28135-HA0-315

Unavailable

13

SCREW, TAPPING (4X12)

90017-HA0-000

$2.59

14

CAP, ALTERNATOR This part replaces 90084-428-000.

90084-471-000

Unavailable

14

CAP, ALTERNATOR

90084-471-000

Unavailable

15

CAP (30MM) This part replaces 90087-428-000.

90087-KF9-900

Unavailable

16

WASHER, SEALING (6MM)

90441-909-000

Unavailable

17

WASHER, THRUST (12MM)

90451-GF6-000

$2.13

18

OIL SEAL (13X28X7) (KOYO) This part replaces 91201-HA0-003.

91203-HC4-005

$6.45

18

OIL SEAL (13X28X7) (NOK)

91201-HA0-004

Unavailable

18

OIL SEAL (13X28X7) (KOYO)

91203-HC4-005

$6.45

19

O-RING (13.8X2.5)

91303-377-000

$3.42

20

O-RING (27X2.0)

91305-KF0-003

$2.92

21

PIN A, DOWEL (8X14)

94301-08140

$2.25

22

CIRCLIP (OUTER) (15MM)

94510-15000

$1.49

23

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.80

23

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

24

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

24

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

25

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

25

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

26

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

26

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

27

BOLT, FLANGE (6X55) This part replaces 96000-06055-00.

96001-06055-00

$1.62

27

BOLT, FLANGE (6X55)

96001-06055-00

$1.62

28

BOLT, FLANGE (6X90) This part replaces 96000-06090-00.

96001-06090-00

$1.95

28

BOLT, FLANGE (6X90)

96001-06090-00

$1.95
