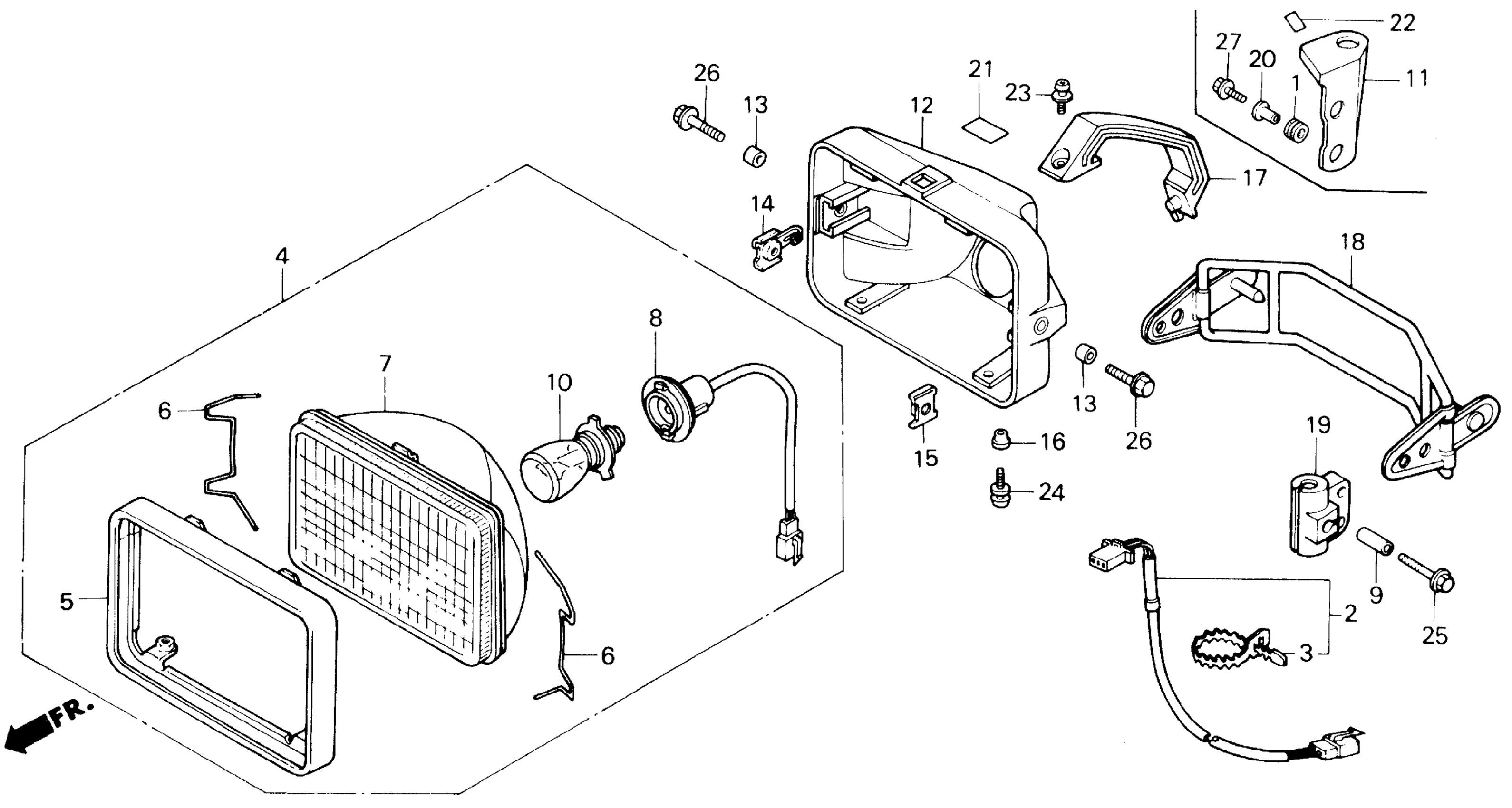

Honda TRX250A (85) FOURTRAX 250, JPN, VIN# JH3TE060-FC000021 TO JH3TE060-FC057385 HEADLIGHT Diagram

#

Description
Price

1

GROMMET A, RR. COVER

11344-MB0-000

$2.75

2

SUB-WIRE HARNESS, HEADLIGHT

32120-HA8-000

Unavailable

3

BAND, WIRE (NOT AVAILABLE)

32121-VM5-003

Unavailable

4

HEADLIGHT ASSY. (12V 45/45W) (NOT AVAILABLE) This part replaces 33100-HA8-003.

33100-HA8-680

Unavailable

5

RIM, HEADLIGHT (NOT AVAILABLE)

33101-VM5-003

Unavailable

6

SPRING, UNIT HOLDER

33109-440-931

Unavailable

7

HEADLIGHT UNIT (NOT AVAILABLE)

33120-HA8-003

Unavailable

8

SOCKET ASSY., HEADLIGHT (NOT AVAILABLE)

33130-HA8-003

Unavailable

9

COLLAR A, TURN SIGNAL SET

33646-GB2-721

Unavailable

10

BULB, HEADLIGHT (12V45/45W) (STANLEY) This part replaces 34901-HB6-003.

34901-HC3-003

$10.57

10

BULB, HEADLIGHT (12V45/45W) (STANLEY)

34901-HC3-003

$10.57

10

BULB, HEADLIGHT (12V45/45W) (STANLEY) This part replaces 34901-323-750.

34901-HC3-003

$10.57

11

STAY, WARNING LAMP (NOT AVAILABLE)

53231-HA8-000

Unavailable

12

CASE, HEADLIGHT *NH105* (MAT BLACK)

61301-VM5-003

Unavailable

12

CASE, HEADLIGHT *NH105* (MAT BLACK) This part replaces 61301-VM5-003ZA.

61301-VM5-003

Unavailable

13

COLLAR A, HEADLIGHT CASE

61302-964-000

Unavailable

14

NUT, HEADLIGHT CASE

61303-VM6-000

Unavailable

15

NUT, HEADLIGHT CASE

61303-105-000

$3.81

16

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.47

17

HANDLE, HEADLIGHT (NOT AVAILABLE)

61305-HA8-003

Unavailable

18

BRACKET, HEADLIGHT CASE (NOT AVAILABLE)

61311-HA8-000

Unavailable

19

MOUNT, HEADLIGHT BRACKET (NOT AVAILABLE)

61315-VM5-010

Unavailable

20

COLLAR, LOCK SETTING

83119-MG9-000

$5.90

21

LABEL, CORD CAUTION

87512-HA8-000

Unavailable

22

LABEL, OIL TEMPERATURE

87515-HA8-000

Unavailable

23

SCREW-WASHER (5X12)

93892-05012-07

$1.49

24

SCREW-WASHER (5X16)

93892-05016-00

$1.49

25

BOLT, FLANGE (6X32) This part replaces 95700-06032-07.

95701-06032-07

$1.49

25

BOLT, FLANGE (6X32)

95701-06032-07

$1.49

26

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

26

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

27

BOLT, FLANGE (6X35) | Use from Frame SN FC031207

95701-06035-07

$1.80

27

BOLT, FLANGE (6X40) | Use up to Frame SN FC031206

95701-06040-07

$1.80

27

BOLT, FLANGE (6X35) | Use from Frame SN FC031207 This part replaces 95900-06035-07.

95701-06035-07

$1.80

27

BOLT, FLANGE (6X40) | Use up to Frame SN FC031206 This part replaces 95900-06040-07.

95701-06040-07

$1.80
