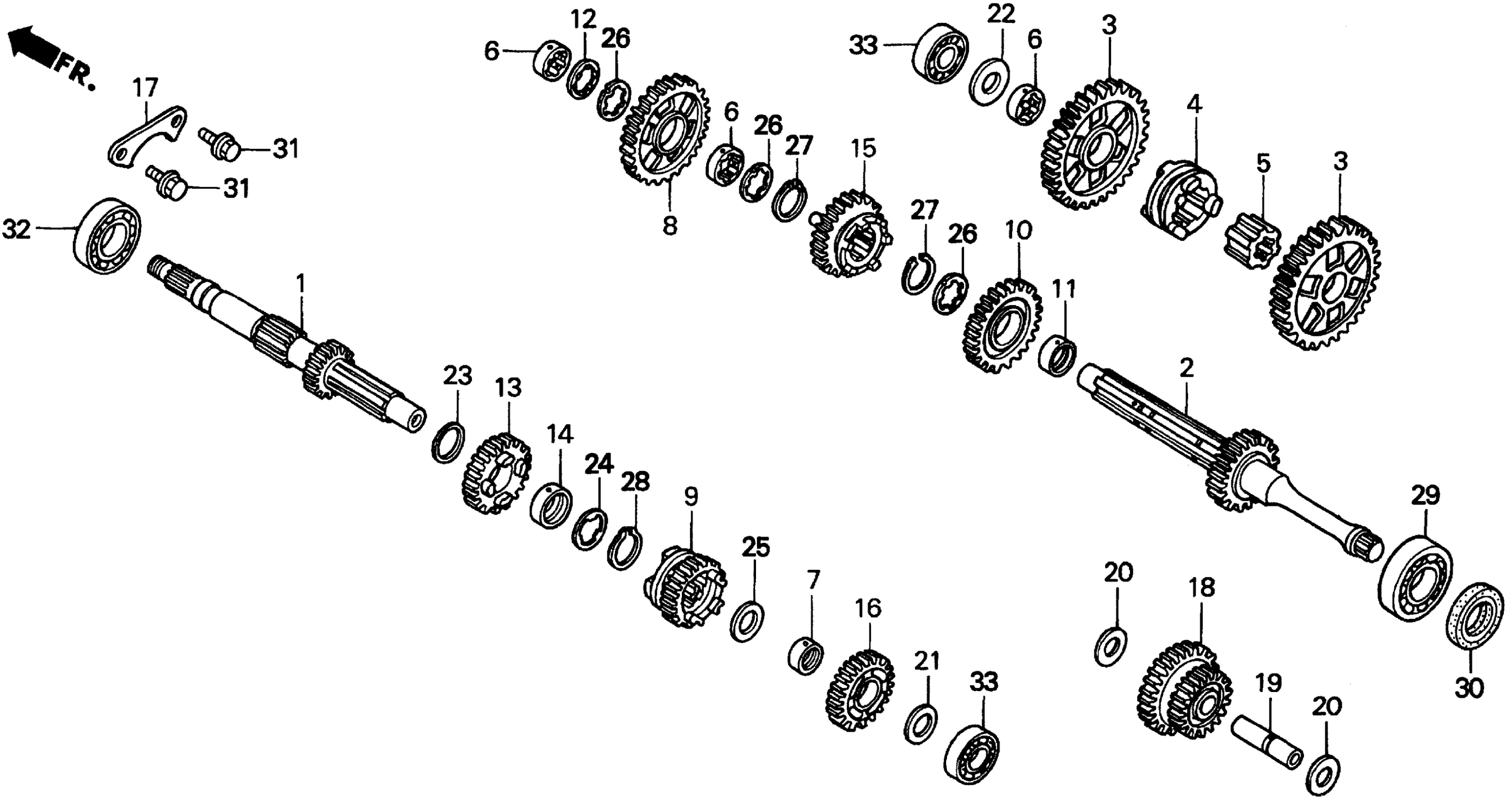

Honda TRX250A (01) TRX250 RECON, USA, VIN# 478TE210-14100001 TRANSMISSION Diagram

MAINSHAFT, TRANSMISSION

23211-HB3-000

$140.59

COUNTERSHAFT

23221-HM8-000

Unavailable

GEAR, COUNTERSHAFT LOW & REVERSE (39T)

23411-HM8-000

$90.97

SHIFTER, REVERSE COUNTERSHAFT LOW GEAR

23412-HB3-000

Unavailable

COLLAR, SPLINE

23413-HB3-000

$65.95

BUSH, SPLINE (22X8.5)

23414-HB3-000

$19.64

BUSH (15MM)

23415-HB3-000

$16.80

GEAR, COUNTERSHAFT SECOND (34T)

23431-HB3-000

Unavailable

GEAR, MAINSHAFT THIRD (19T)

23441-HM8-000

Unavailable

GEAR, COUNTERSHAFT THIRD (31T)

23451-HM8-000

Unavailable

BUSH (22MM)

23452-HB3-000

$19.64

WASHER, LOCK

23456-KA3-000

$5.87

GEAR, MAINSHAFT FOURTH (22T)

23461-HF1-910

Unavailable

BUSH (20MM)

23462-HB3-000

$19.64

GEAR, COUNTERSHAFT FOURTH (28T)

23471-HM8-000

Unavailable

GEAR, MAINSHAFT FIFTH (25T)

23481-HB3-010

Unavailable

PLATE, BEARING SETTING

23521-HM8-000

$5.72

GEAR, REVERSE IDLE (20T/33T)

23721-HM8-000

Unavailable

SHAFT, REVERSE IDLE

23731-HB3-000

$24.61

WASHER, THRUST (13X27X1)

90451-HB3-000

$3.20

WASHER, THRUST (15MM)

90451-107-000

$1.49

WASHER, THRUST (15MM)

90452-HB3-000

$8.07

WASHER, THRUST (20MM)

90454-107-000

$1.80

WASHER A, SPLINE (20MM)

90455-107-000

$1.92

WASHER, THRUST (15X1)

90457-HB3-000

$2.89

WASHER, SPLINE (22MM)

90464-KE8-000

$4.20

CIRCLIP (22MM)

90601-329-000

$2.67

SET-RING (20MM)

90605-200-000

$2.92

BEARING, RADIAL BALL (S6205) (KOYO)

91002-HE0-003

$16.79

OIL SEAL (25X41.25X6)

91202-898-003

$8.71

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22

BEARING, RADIAL BALL (6202U)

96140-62020

$13.60

BEARING, RADIAL BALL (6202U) This part replaces 96140-62020-00.

96140-62020

$13.60
