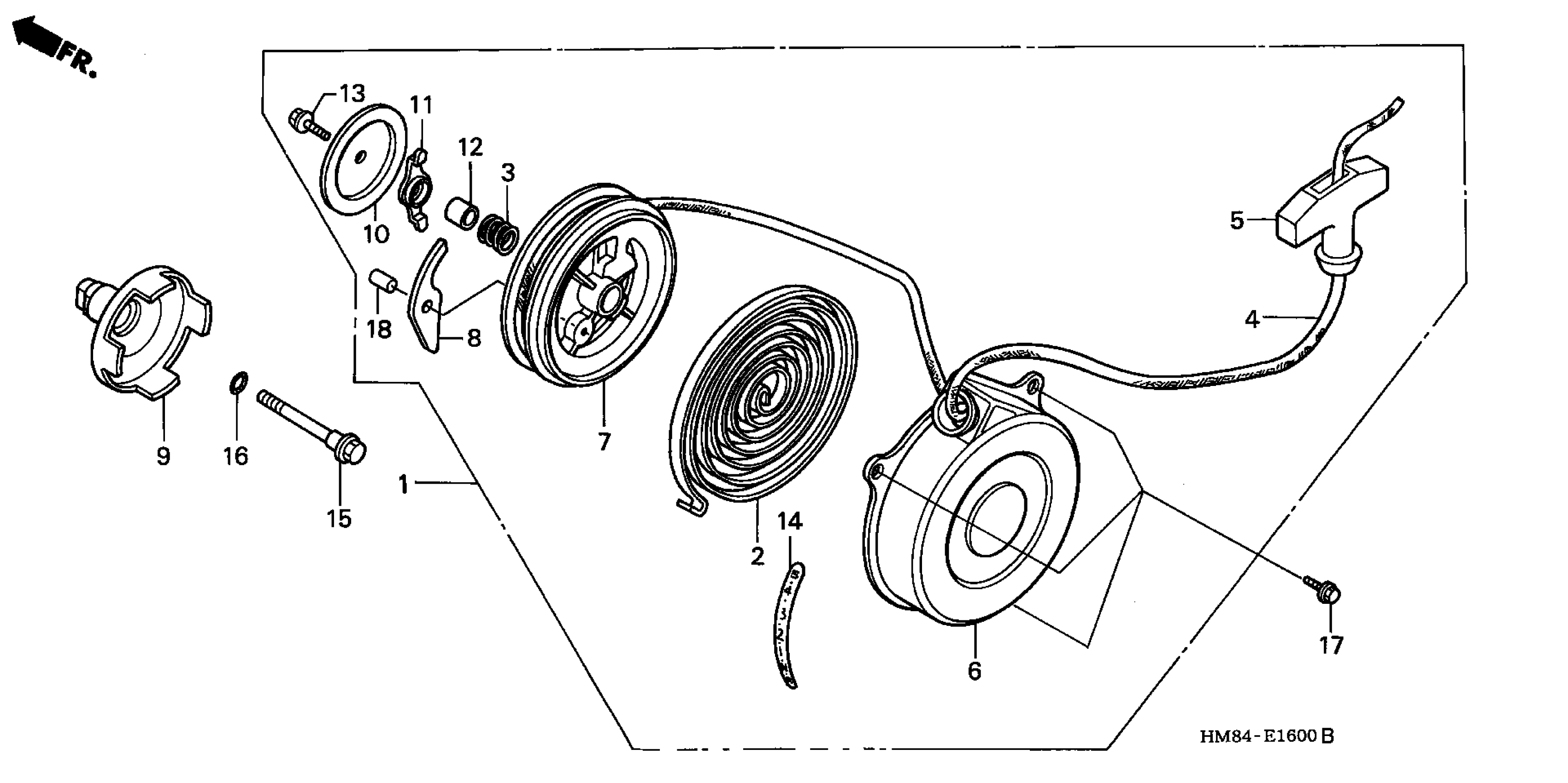

Honda TRX250A (01) TRX250 RECON, USA, VIN# 478TE210-14100001 RECOIL STARTER Diagram

STARTER ASSY., RECOIL This part replaces 28400-HM8-B21.

28400-HM8-B22

$22.41

STARTER ASSY., RECOIL

28400-HM8-B22

$22.41

STARTER ASSY., RECOIL This part replaces 28400-HM8-003.

28400-HM8-B22

$22.41

SPRING, RECOIL STARTER

28402-HB6-004

$31.41

SPRING, FRICTION

28404-968-004

$3.38

ROPE, RECOIL STARTER

28407-HM8-000

Unavailable

KNOB, STARTER

28408-HM8-000

Unavailable

CASE, RECOIL STARTER

28410-HM8-000

Unavailable

REEL, RECOIL STARTER

28420-HB6-004

Unavailable

RATCHET, STARTER

28422-ZE1-003

$4.80

PULLEY, RECOIL

28430-HM8-000

Unavailable

PLATE, FRICTION

28431-ZE1-003

$5.08

GUIDE, RATCHET

28433-968-004

Unavailable

COVER, SPRING

28446-968-004

$5.84

BOLT

28448-HB6-004

Unavailable

LABEL, SHIFT PATTERN

87104-HB3-000

Unavailable

BOLT, FLANGE UBS (10X66)

90001-HM8-000

$4.94

O-RING (1.5X9.5)

91306-MG3-000

$2.33

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

PIN, STARTER RATCHET

28432-HB6-004

$2.48
