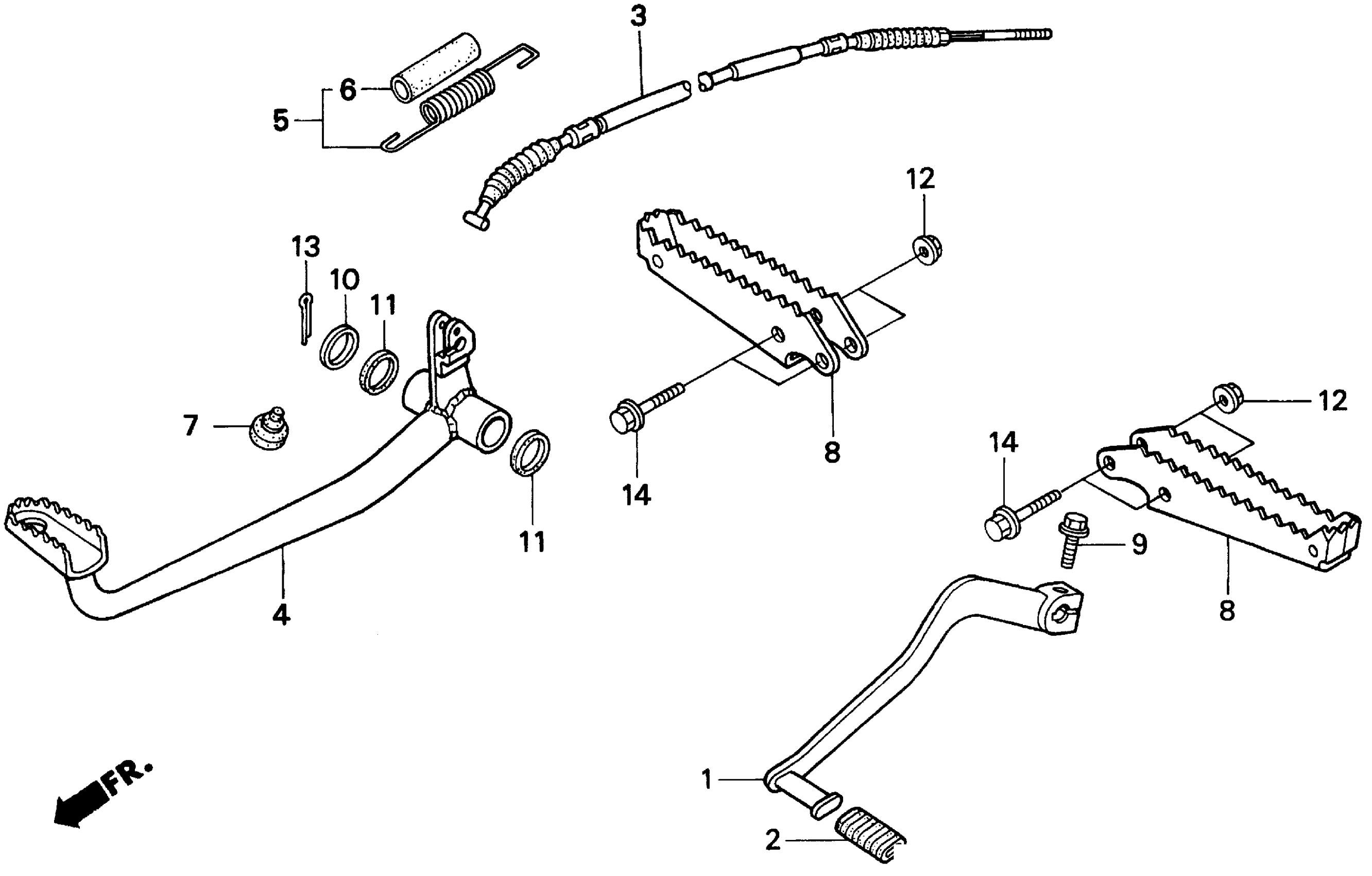

Honda TRX250A (01) TRX250 RECON, USA, VIN# 478TE210-14100001 PEDAL Diagram

PEDAL, GEARSHIFT

24701-HM8-000

$57.33

RUBBER, CHANGE PEDAL

24781-371-000

$5.13

CABLE, FOOT BRAKE

43470-HM8-000

$8.76

PEDAL, BRAKE

46500-HM8-000

Unavailable

SPRING ASSY., RR. BRAKE PEDAL

46513-HM7-000

$11.69

TUBE, BRAKE PEDAL SPRING

46515-HM7-000

$2.13

RUBBER, STAND STOPPER

50505-GA7-730

$2.13

STEP

50610-HM8-000

$17.17

BOLT, FLANGE (6X20)

90118-968-000

$4.24

WASHER (17.5MM)

90512-303-000

$1.77

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.69

NUT, FLANGE (8MM)

94050-08000

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, SPLIT (3.0X45)

94201-30450

$1.49

BOLT, FLANGE (8X45)

95801-08045-00

$1.80
