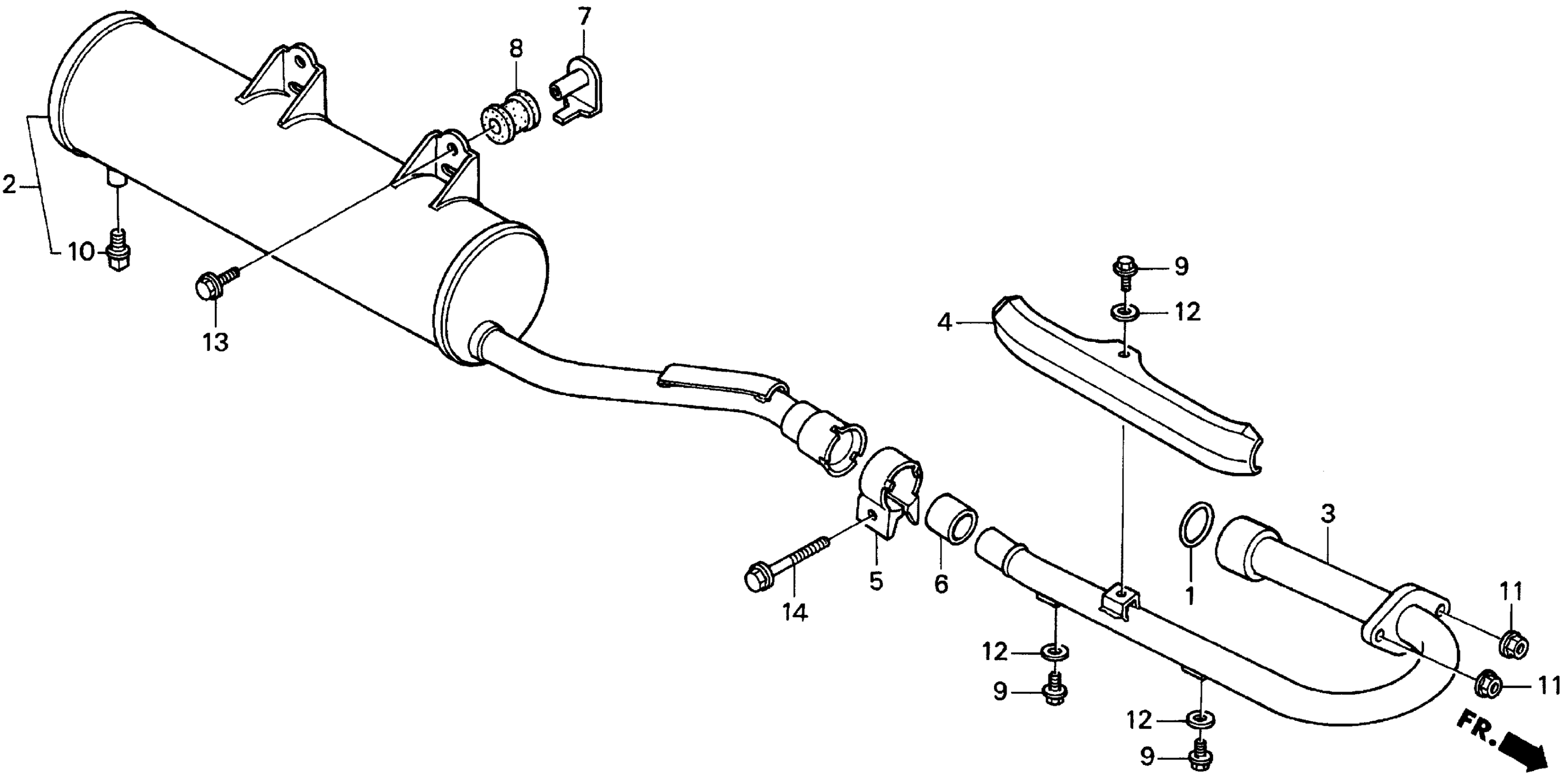

Honda TRX250A (01) TRX250 RECON, USA, VIN# 478TE210-14100001 MUFFLER Diagram

GASKET, EX. PIPE

18291-MN4-920

$5.07

MUFFLER This part replaces 18310-HM8-B00.

18310-HM8-B40

Unavailable

MUFFLER

18310-HM8-B40

Unavailable

MUFFLER This part replaces 18310-HM8-000.

18310-HM8-B40

Unavailable

PIPE, EX.

18320-HM8-670

$442.00

COVER, EX. PIPE

18321-HM8-000

$132.99

BAND, L. EX. PIPE

18374-MN1-670

$13.23

GASKET, MUFFLER

18391-HM8-000

$7.35

NUT, MOUNTING RUBBER This part replaces 50607-HM8-000.

50607-HN1-A70

$21.95

NUT, MOUNTING RUBBER

50607-HN1-A70

$21.95

RUBBER, MUFFLER MOUNTING

50608-HM7-000

$4.60

BOLT, FLANGE (6X12)

90011-750-801

$1.31

BOLT, ARRESTER

90183-HM5-850

$2.31

NUT, FLANGE (8MM)

90301-HM8-000

$2.50

WASHER, PLAIN (6MM)

94103-06700

$0.66

BOLT, FLANGE (8X16)

95701-08016-07

$1.62

BOLT, FLANGE (8X35)

95701-08035-08

$1.29
