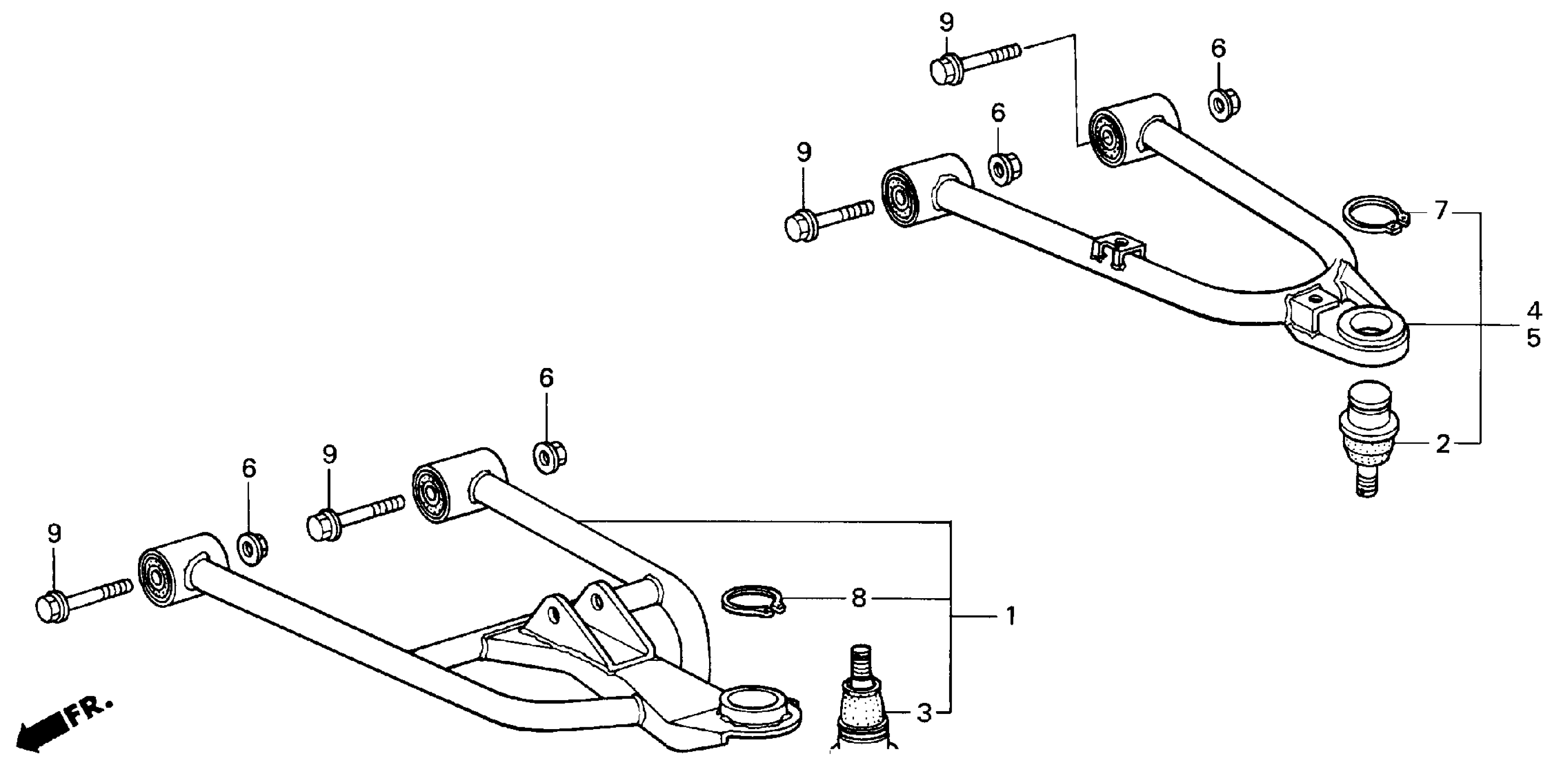

Honda TRX250A (01) TRX250 RECON, USA, VIN# 478TE210-14100001 FRONT ARM Diagram

ARM ASSY. (LOWER)

51350-HM8-000

$452.10

JOINT A, ARM BALL This part replaces 51355-HM5-A81.

51355-HP5-601

$19.41

JOINT A, ARM BALL

51355-HP5-601

$19.41

JOINT A, ARM BALL

51355-HM8-005

$90.70

ARM ASSY., R. (UPPER)

51370-HM8-A00

$429.38

ARM ASSY., L. (UPPER)

51380-HM8-A00

$440.11

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

CIRCLIP (OUTER) (32MM)

94514-32000

$1.49

CIRCLIP (OUTER) (40MM)

94514-40000

$2.03

BOLT, FLANGE (10X62)

90151-HC5-000

$7.99

BOLT, FLANGE (10X62) This part replaces 95801-10065-00.

90151-HC5-000

$7.99
