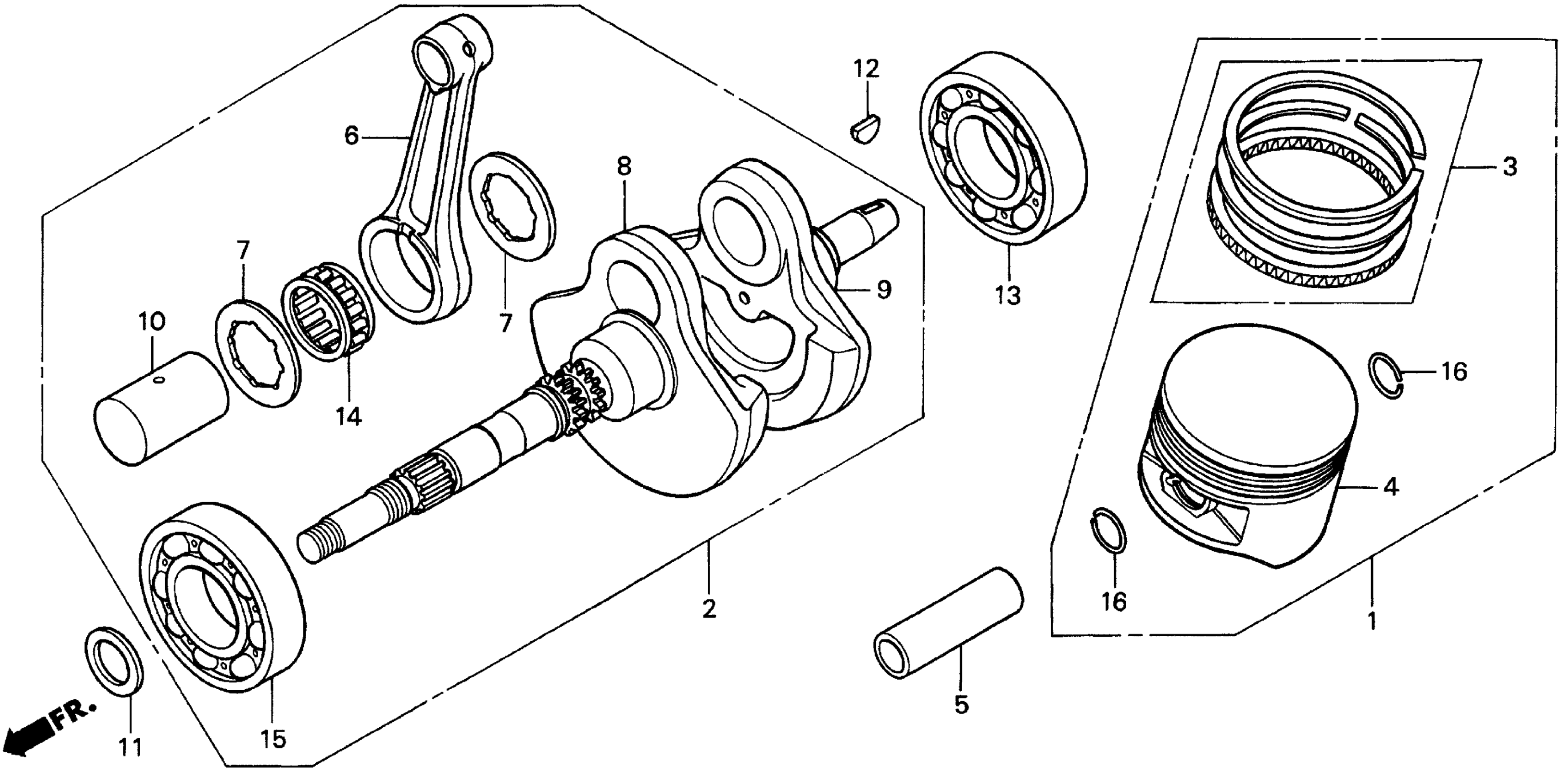

Honda TRX250A (01) TRX250 RECON, USA, VIN# 478TE210-14100001 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

PISTON KIT (STD)

06131-HM8-000

Unavailable

1

PISTON KIT (OVER SIZE) (0.25) | (Optional).

06132-HM8-000

Unavailable

1

PISTON KIT (OVER SIZE) (0.50) | (Optional).

06133-HM8-000

Unavailable

1

PISTON KIT (OVER SIZE) (0.75) | (Optional).

06134-HM8-000

Unavailable

1

PISTON KIT (1.00) | (Optional).

06135-HM8-000

Unavailable

2

CRANKSHAFT

13000-HM8-000

$511.21

3

RING SET, PISTON (STD)

13011-HM8-003

$47.31

3

RING SET, PISTON (O.S. 0.25) | (Optional).

13021-HM8-003

$47.31

3

RING SET, PISTON (O.S. 0.50) | (Optional).

13031-HM8-003

$47.31

3

RING SET, PISTON (O.S. 0.75) | (Optional).

13041-HM8-003

$50.18

3

RING SET, PISTON (O.S. 1.00) | (Optional).

13051-HM8-003

$47.31

4

PISTON (STD)

13101-HM8-000

Unavailable

4

PISTON (OVER SIZE) (0.25) | (Optional).

13102-HM8-000

Unavailable

4

PISTON (OVER SIZE) (0.50) | (Optional).

13103-HM8-000

Unavailable

4

PISTON (O.S. 0.75) | (Optional).

13104-HM8-000

Unavailable

4

PISTON (OS 1.00) | (Optional).

13105-HM8-000

Unavailable

5

PIN, PISTON This part replaces 13111-422-000.

13111-425-000

$21.65

5

PIN, PISTON

13111-425-000

$21.65

6

ROD, CONNECTING

13201-KCN-300

Unavailable

7

PLATE, CONNECTING ROD SIDE

13202-958-300

$12.02

8

CRANKSHAFT, FR. (NA USE ALT:13000-HM8-000)

13311-HM8-300

Unavailable

9

CRANKSHAFT, RR. (NA USE ALT:13000-HM8-000)

13321-HM8-300

Unavailable

10

PIN, CRANK

13381-HF1-670

Unavailable

11

WASHER, THRUST (24MM)

90402-HA5-000

$3.67

12

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

13

BEARING, BALL (6207C3)

91001-HM8-003

$27.85

14

BEARING A, CONNECTING ROD LARGE END (RED)

91002-446-771

$33.59

14

BEARING B, CONNECTING ROD LARGE END (BLUE)

91003-446-771

$33.59

14

BEARING C, CONNECTING ROD LARGE END (WHITE)

91004-446-771

$33.59

15

BEARING, BALL C (6207) (KOYO)

91005-PE6-014

$50.39

16

CLIP, PISTON PIN (15MM)

94601-15000

$1.49
