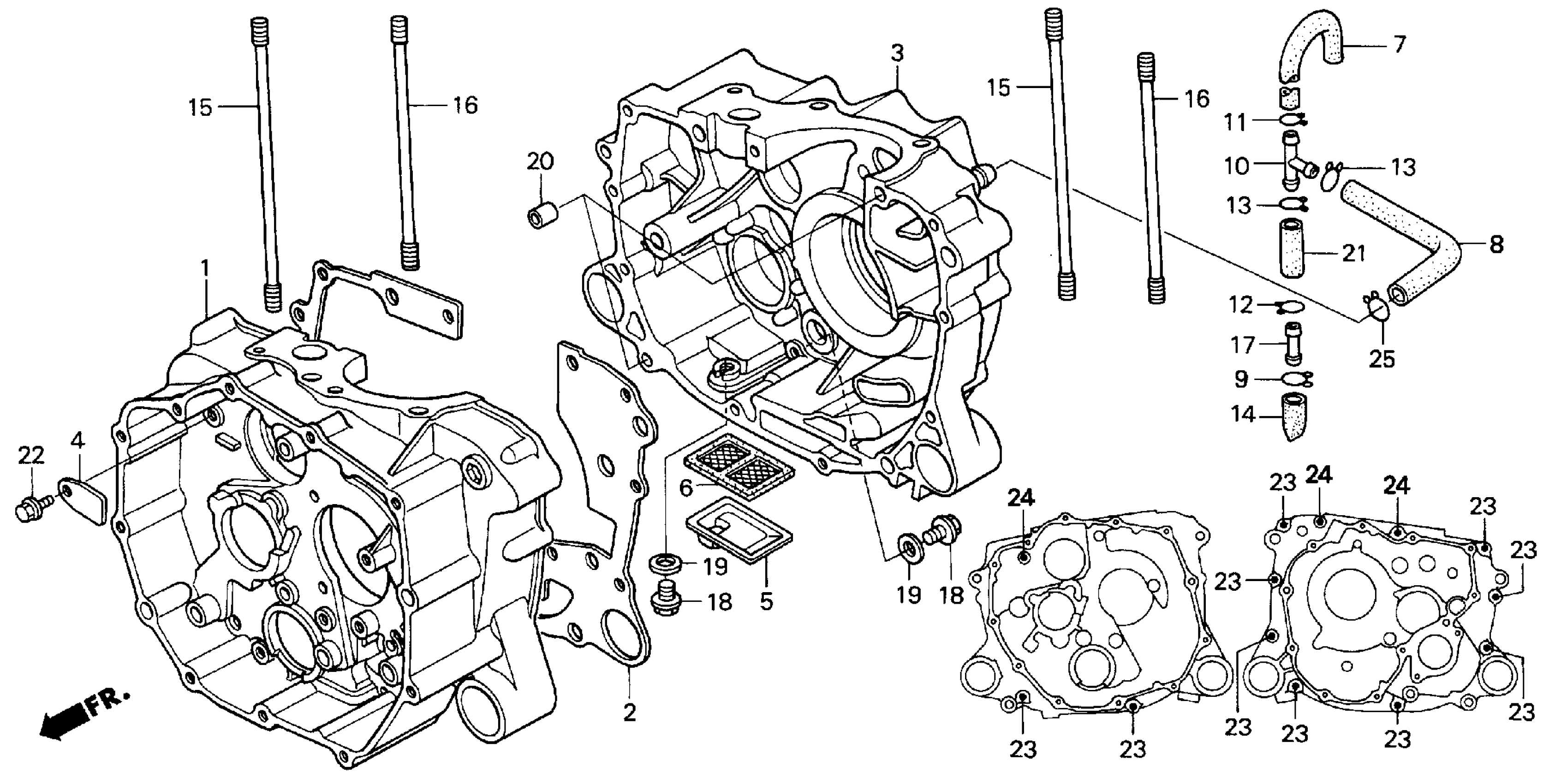

Honda TRX250A (01) TRX250 RECON, USA, VIN# 478TE210-14100001 CRANKCASE Diagram

CRANKCASE, FR.

11100-HM8-000

$398.59

GASKET, CRANKCASE

11191-HM8-000

$25.74

CRANKCASE, RR.

11200-HM8-000

Unavailable

PLATE, CAM FIXING

14115-HM8-000

$4.72

STRAINER, OIL

15153-HM8-000

$6.31

SCREEN, OIL FILTER

15421-ZE9-003

$12.72

BOLT, STUD (8X193)

90031-HM8-000

Unavailable

BOLT, STUD (8X117)

90032-HM8-000

Unavailable

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

BOLT, FLANGE (6X65)

95701-06065-00

$1.51
