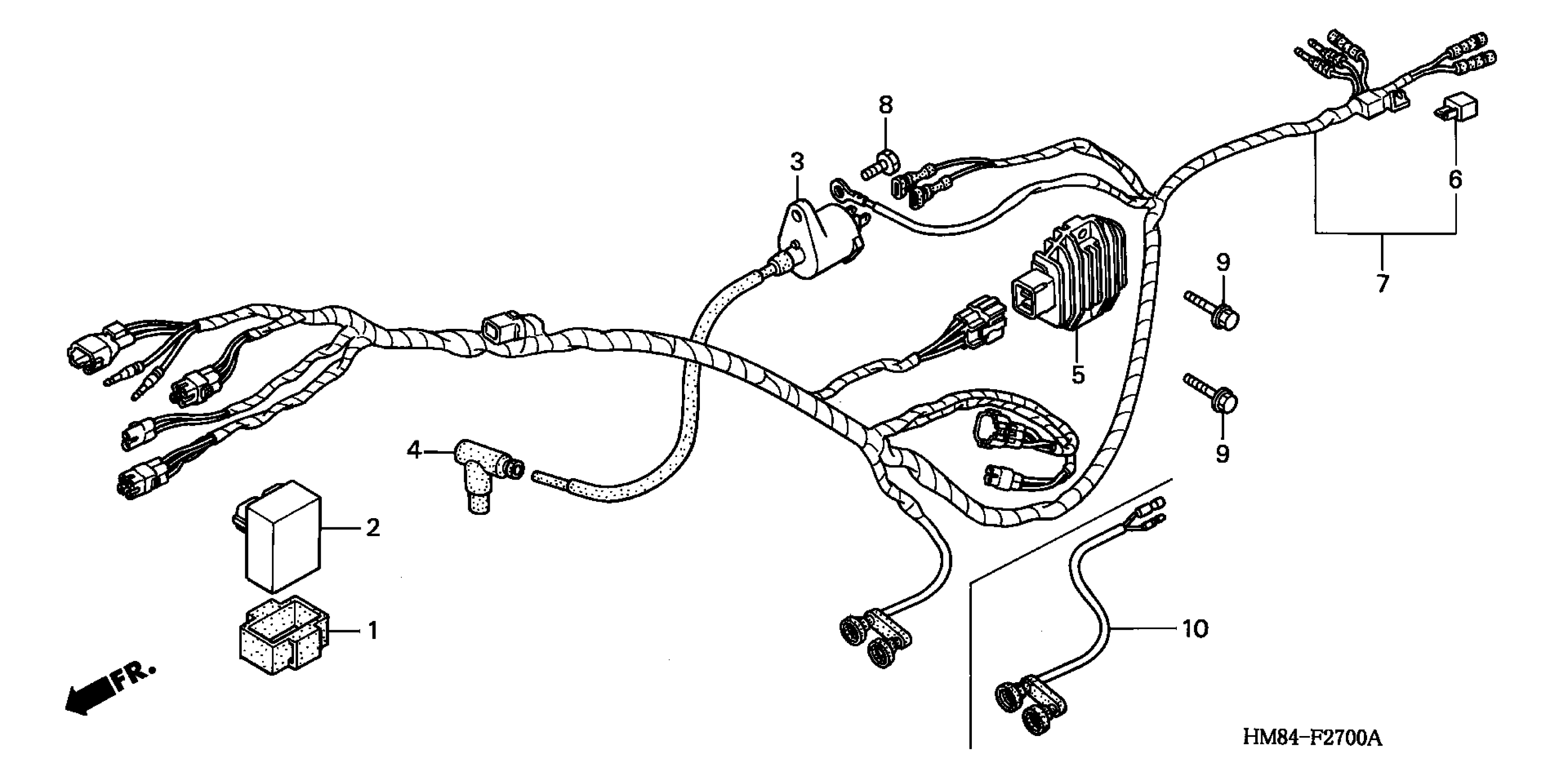

Honda TRX250A (00) TRX250 RECON, USA, VIN# 478TE210-Y4000001 WIRE HARNESS Diagram

#

Description

Price

1

CUSHION, IGNITION CONTROL MODULE (CDI) This part replaces 30401-HB6-000.

30401-HB6-010

$3.56

2

MODULE, IGNITION CONTROL (CDI)

30410-HM8-003

$112.79

3

COIL, IGNITION

30510-HM8-000

$83.57

4

CAP ASSY. This part replaces 30700-KY4-900.

30700-KY4-901

$27.04

5

RECTIFIER ASSY., REGULATOR This part replaces 31600-HM8-003.

31600-HM8-013

$65.75

5

RECTIFIER ASSY., REGULATOR

31600-HM8-013

$65.75

6

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$27.27

7

WIRE HARNESS

32100-HM8-000

Unavailable

8

BOLT, FLANGE (5X22)

90112-GK8-010

$2.62

9

BOLT, FLANGE (6X20)

95701-06020-00

$1.63
