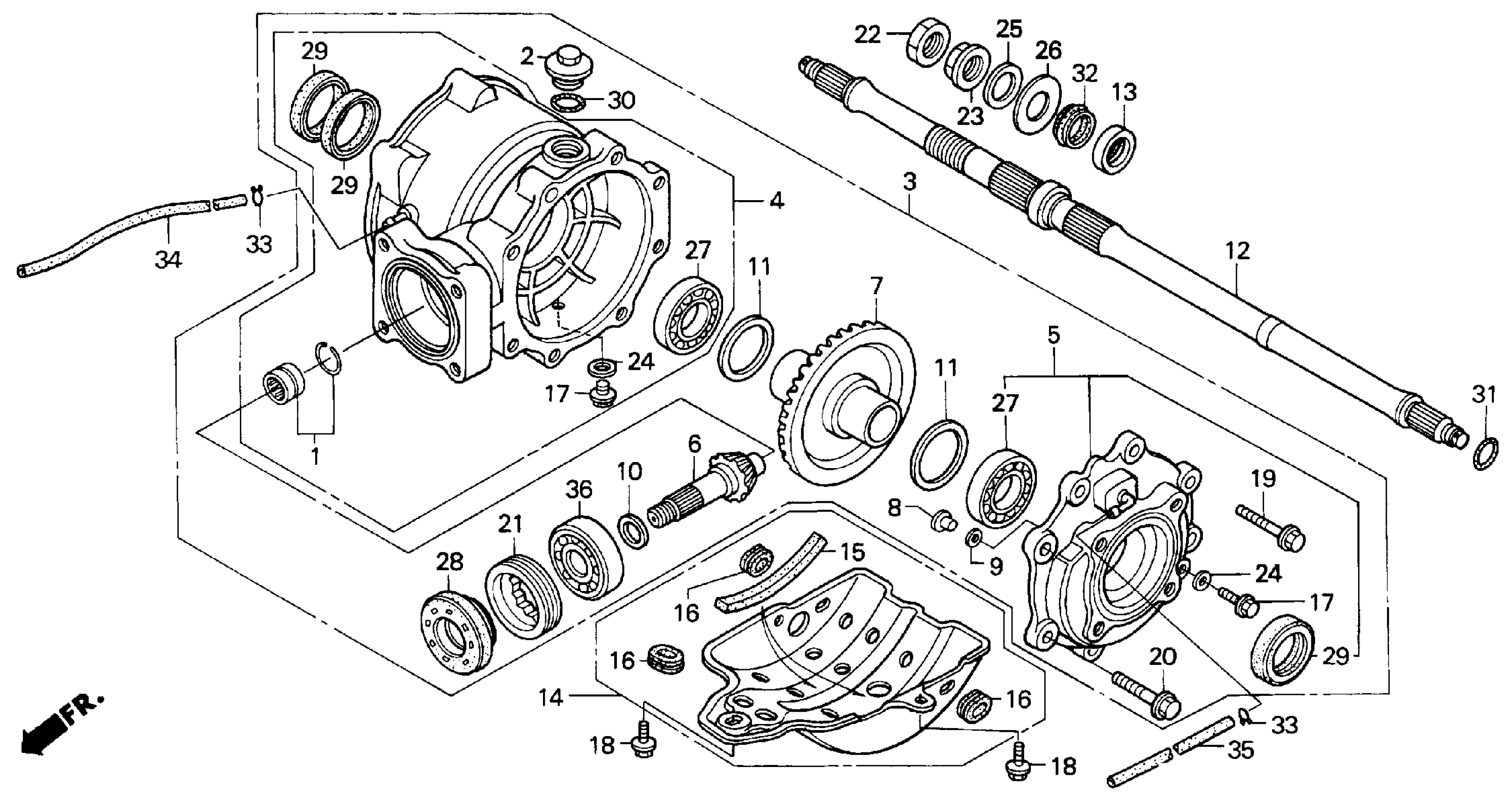

Honda TRX250A (00) TRX250 RECON, USA, VIN# 478TE210-Y4000001 REAR FINAL GEAR Diagram

#

Description
Price

1

BEARING SET, NEEDLE

06910-HM4-850

$31.53

2

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

2

CAP, VALVE ADJ.

12361-300-000

Unavailable

2

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

3

GEAR ASSY., RR. FINAL This part replaces 41300-HM8-000.

41300-HM8-010

$1,259.79

3

GEAR ASSY., RR. FINAL

41300-HM8-010

$1,259.79

4

CASE SET, FINAL

41311-HM8-000

$292.64

5

COVER SET, GEAR CASE This part replaces 41320-HM8-000.

41320-HM8-020

$99.39

5

COVER SET, GEAR CASE This part replaces 41320-HM8-010.

41320-HM8-020

$99.39

5

COVER SET, GEAR CASE

41320-HM8-020

$99.39

6

GEAR, PINION This part replaces 41421-HM8-000.

41421-HN5-670

$115.74

6

GEAR, PINION

41421-HN5-670

$115.74

7

GEAR, RING

41431-HM8-000

$238.38

8

PIN, RING GEAR STOPPER

41436-MB0-310

$31.90

9

SHIM A, STOPPER PIN (0.10)

41437-MB0-310

$5.45

9

SHIM B, STOPPER PIN (0.15)

41438-MB0-310

$5.14

10

SHIM A, PINION GEAR (1.64)

41447-HM8-000

$7.99

10

SHIM B, PINION GEAR (1.70)

41448-HM8-000

$7.99

10

SHIM C, PINION GEAR (1.76)

41449-HM8-000

$7.99

10

SHIM D, PINION GEAR (1.82)

41451-HM8-000

$8.79

10

SHIM E, PINION GEAR (1.88)

41452-HM8-000

$7.99

10

SHIM F, PINION GEAR (1.94)

41453-HM8-000

$8.79

10

SHIM G, PINION GEAR (2.00)

41454-HM8-000

$8.79

10

SHIM H, PINION GEAR (2.06)

41455-HM8-000

$7.99

10

SHIM I, PINION GEAR (2.12)

41456-HM8-000

$8.79

10

SHIM J, PINION GEAR (2.18)

41457-HM8-000

$8.79

11

SPACER A, RING GEAR (1.26)

41540-HC4-000

$12.72

11

SPACER B, RING GEAR (1.32)

41541-HC4-000

$12.72

11

SPACER C, RING GEAR (1.38)

41542-HC4-000

$12.72

11

SPACER D, RING GEAR (1.44)

41543-HC4-000

$12.72

11

SPACER E, RING GEAR (1.50)

41544-HC4-000

$12.72

11

SPACER F, RING GEAR (1.56)

41545-HC4-000

$11.99

11

SPACER G, RING GEAR (1.62)

41546-HC4-000

$12.72

11

SPACER H, RING GEAR (1.68)

41547-HC4-000

$11.99

11

SPACER I, RING GEAR (1.74)

41548-HC4-000

$12.72

11

SPACER J, RING GEAR (1.80)

41549-HC4-000

$12.72

11

SPACER K, RING GEAR (1.86)

41550-HC4-000

$11.99

12

SHAFT, RR. AXLE

42311-HM8-000

$250.52

13

COLLAR, RR. AXLE

42625-HM8-000

$11.43

14

PLATE, SKID

50355-HM8-000

$44.77

15

RUBBER, STOPPER

50356-HM7-300

$1.61

16

GROMMET, SIDE COVER

83551-HM5-730

$1.49

17

BOLT, SEALING (8MM)

90109-371-000

$2.58

18

BOLT, FLANGE (8X14) This part replaces 90127-SM4-951.

95701-08014-08

$1.80

18

BOLT, FLANGE (8X14)

95701-08014-08

$1.80

19

BOLT, FLANGE (8X27)

90133-MB0-000

$8.11

20

BOLT, FLANGE (10X35)

90134-HA0-000

$7.88

21

NUT, LOCK (64MM)

90242-MB0-000

$32.52

22

NUT, RR. AXLE

90307-HM5-930

$3.40

23

NUT A, RR. AXLE

90308-HM5-930

$3.83

24

GASKET (8MM)

90471-580-000

$2.92

25

WASHER, TAPER

90481-HC4-000

$7.70

26

WASHER (32X60X1.5)

90501-HM8-000

$5.44

27

BEARING, RADIAL BALL (43X68X13)

91051-HC4-003

$47.70

28

OIL SEAL (34X70X11)

91251-HM8-003

$15.59

29

OIL SEAL (42X51X7)

91271-HC4-004

$10.65

30

O-RING (30.8MM)

91302-001-020

$3.75

31

O-RING (29.5X3)

91301-401-000

$3.53

31

O-RING (29.5X3) This part replaces 91302-436-003.

91301-401-000

$3.53

31

O-RING (29.5X3) This part replaces 91302-436-004.

91301-401-000

$3.53

32

RING, SEAL

91351-HB3-004

$3.78

33

CLIP, TUBE (C6.5)

95002-35000

$1.49

34

BULK HOSE, VACUUM (3.5X1000) (3.5X800)

95005-35001-30M

$8.63

35

BULK HOSE, VACUUM (3.5X1000) (3.5X900)

95005-35001-30M

$8.63

36

BEARING, RADIAL BALL (6206)

96100-62060-00

$23.53
