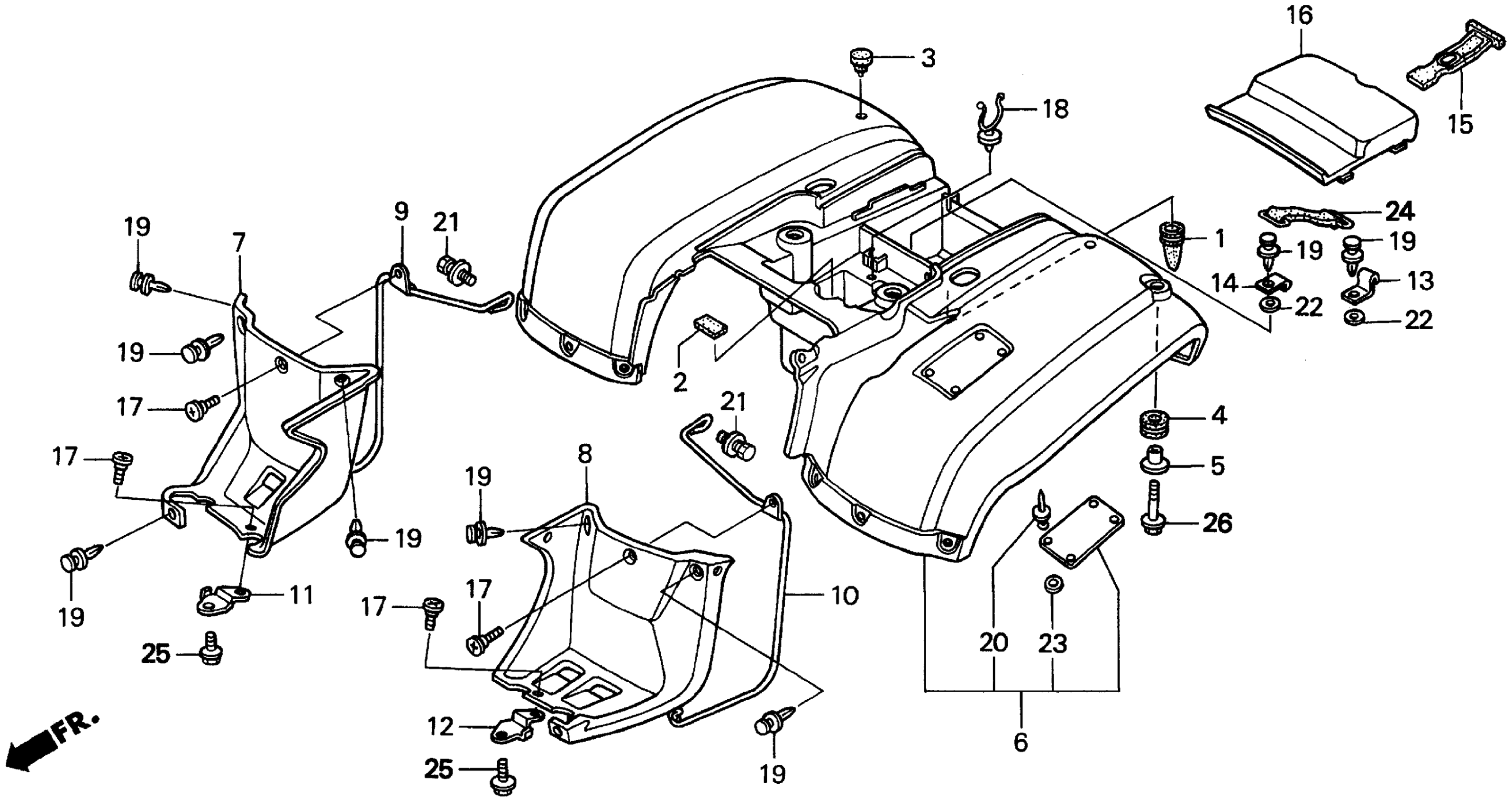

Honda TRX250A (00) TRX250 RECON, USA, VIN# 478TE210-Y4000001 REAR FENDER Diagram

#

Description
Price

1

TUBE, DRAIN

17358-VM4-000

$9.44

2

RUBBER, BATTERY (30X40X3)

50384-HM5-670

$2.44

3

RUBBER, STAND STOPPER

50505-GA7-730

$2.06

4

RUBBER, FR. FENDER MOUNTING

61103-HM5-850

$1.37

5

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

Unavailable

5

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

Unavailable

6

FENDER, RR. *R232* (PATRIOT RED)

80100-HM8-000ZB

Unavailable

6

FENDER, RR. *G152* (ADVENTURE GREEN)

80100-HM8-000ZC

Unavailable

6

FENDER, RR. *YR176* (HARVEST BEIGE)

80100-HM8-000ZD

Unavailable

7

SPLASH GUARD, R. RR. *NH1* (BLACK)

80121-HM8-000ZA

$106.74

8

SPLASH GUARD, L. RR. *NH1* (BLACK)

80122-HM8-000ZA

$106.74

9

STAY, R. RR. SPLASH GUARD

80123-HM8-000

Unavailable

10

STAY, L. RR. SPLASH GUARD

80124-HM8-000

Unavailable

11

SUB-STAY, R. RR. SPLASH GUARD

80127-HM8-000

Unavailable

12

SUB-STAY, L. RR. SPLASH GUARD

80128-HM8-000

Unavailable

13

STAY A, TOOL BOX

80131-HM8-000

Unavailable

14

STAY B, TOOL BOX

80132-HM8-000

$1.47

15

BAND, TOOL BOX

80214-HM5-850

$2.29

16

COVER, TOOL BOX *R232* (PATRIOT RED)

80311-HM8-000ZB

Unavailable

16

COVER, TOOL BOX *G152* (ADVENTURE GREEN)

80311-HM8-000ZC

Unavailable

16

COVER, TOOL BOX *YR176* (HARVEST BEIGE)

80311-HM8-000ZD

Unavailable

17

SCREW, SPECIAL (6X8)

90102-HM7-000

$2.74

18

CLAMP, HARNESS

90119-HA7-670

$3.56

19

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

20

RIVET, POP (3.2)

90841-HF1-910

$0.12

21

BOLT-WASHER (6X16)

93404-06016-07

$1.63

22

WASHER, PLAIN (8MM)

94101-08000

Unavailable

23

WASHER, PLAIN (3MM)

94103-03800

$0.79

24

BAND A, BATTERY

95012-11001

$2.80

25

BOLT, FLANGE (6X12)

95701-06012-00

$2.03

26

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
