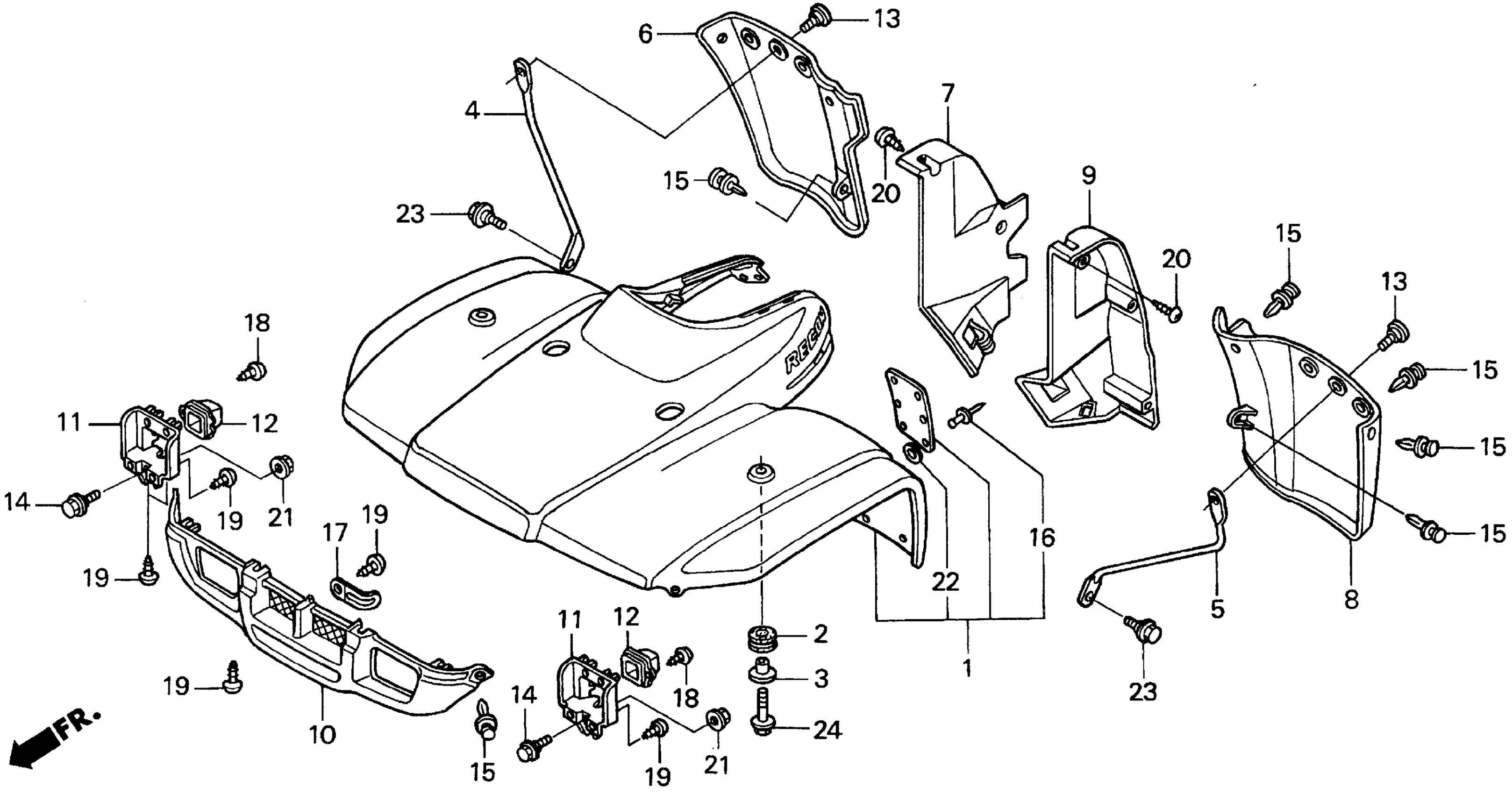

Honda TRX250A (00) TRX250 RECON, USA, VIN# 478TE210-Y4000001 FRONT FENDER Diagram

FENDER, FR. *G152* (WOL) (ADVENTURE GREEN)

61100-HM8-670ZA

$270.18

FENDER, FR. *R232* (WOL) (PATRIOT RED)

61100-HM8-670ZB

$270.18

FENDER, FR. *YR176* (WOL) (HARVEST BEIGE)

61100-HM8-670ZC

Unavailable

RUBBER, FR. FENDER MOUNTING

61103-HM5-850

$1.52

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

STAY, R. FR. FENDER SUPPORT

61105-HM8-000

$37.00

STAY, L. FR. FENDER SUPPORT

61106-HM8-000

$65.61

SPLASH GUARD, R. FR. *NH1* (BLACK)

61861-HM8-000ZA

$73.04

FENDER, R. (INNER)

61862-HM8-000

$14.07

SPLASH GUARD, L. FR. *NH1* (BLACK)

61866-HM8-000ZA

$76.33

FENDER, L. (INNER)

61867-HM8-000

$14.92

GRILLE, FR. *R232* (PATRIOT RED)

66300-HM8-000ZC

$55.23

GRILLE, FR. *G152* (ADVENTURE GREEN)

66300-HM8-000ZD

$78.89

GRILLE, FR. *YR176* (HARVEST BEIGE)

66300-HM8-000ZE

Unavailable

COVER, HEADLIGHT

66301-HM8-000

$26.80

CAP, HEADLIGHT TAIL

66303-HM7-000

$3.37

SCREW, SPECIAL (6X8)

90102-HM7-000

$2.92

BOLT, FLANGE (6MM)

90112-GC6-000

$3.90

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

RIVET, POP (3.2)

90841-HF1-910

$1.49

CLIP (4X60)

91410-KT7-000

$5.03

SCREW, TAPPING (4X12)

93903-24320

$1.49

SCREW, TAPPING (5X12)

93903-25220

$1.49

SCREW, TAPPING (6X16)

93904-26210

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

WASHER, PLAIN (3MM)

94103-03800

$1.49

BOLT, FLANGE (6X14)

95701-06014-07

$1.49

BOLT, FLANGE (6X22)

95701-06022-00

$1.80
