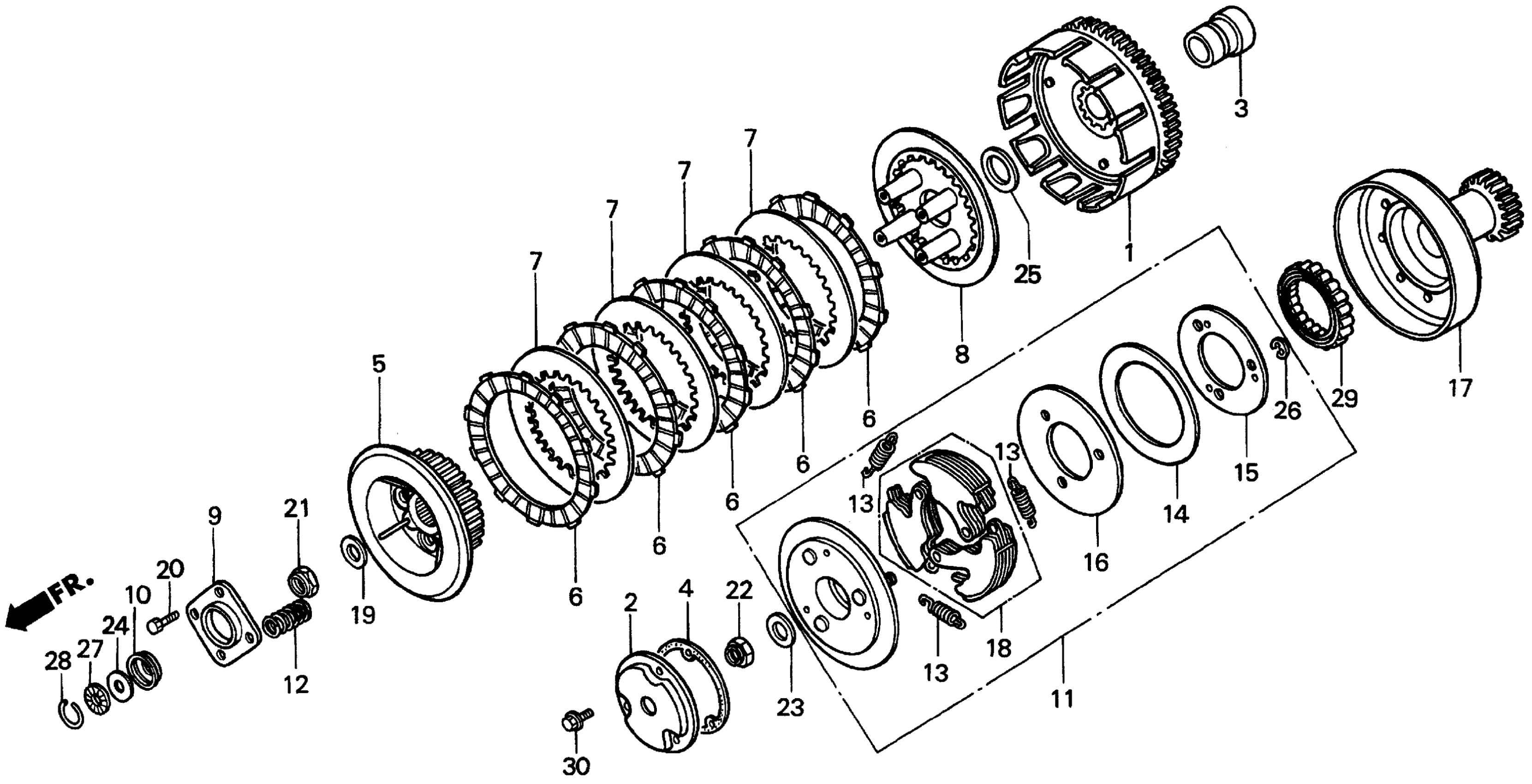

Honda TRX250A (00) TRX250 RECON, USA, VIN# 478TE210-Y4000001 CLUTCH Diagram

#

Description
Price

1

CLUTCH OUTER This part replaces 22100-HB3-000.

22100-HM8-A40

$223.54

1

CLUTCH OUTER

22100-HM8-A40

$223.54

2

COVER, OIL FILTER

22111-HB3-771

$24.20

3

GUIDE, CLUTCH (OUTER)

22116-HB3-000

$24.03

4

GASKET, OIL FILTER COVER

22119-HF1-910

Unavailable

5

CENTER, CLUTCH

22121-HM8-000

$66.79

6

DISK, CLUTCH FRICTION

22201-166-000

$17.44

7

PLATE, CLUTCH

22321-KE8-000

$12.71

8

PLATE, CLUTCH PRESSURE

22350-HB3-000

$41.35

9

PLATE, CLUTCH LIFTER (NOT AVAILABLE)

22361-HB3-840

Unavailable

10

COLLAR, CLUTCH LIFTER

22362-KK0-000

Unavailable

11

PLATE ASSY., DRIVE

22400-HM8-000

Unavailable

12

SPRING, CLUTCH This part replaces 22401-HB3-010.

22401-KE7-000

$4.06

12

SPRING, CLUTCH

22401-KE7-000

$4.06

13

SPRING, CLUTCH

22463-HB3-770

$3.81

14

SPRING, CONE DISK

22470-HB3-770

$13.93

15

WASHER (48X92X1.6) (NOT AVAILABLE)

22480-HM8-000

Unavailable

16

WASHER (48X100X1.2) This part replaces 22481-HB3-770.

22481-HM8-A40

$10.08

16

WASHER (48X100X1.2)

22481-HM8-A40

$10.08

17

DRUM, CLUTCH (23T) This part replaces 22500-HF1-670.

22500-HS0-A00

$120.92

17

DRUM, CLUTCH (23T) This part replaces 22500-HM8-A40.

22500-HS0-A00

$120.92

18

WEIGHT SET, CLUTCH This part replaces 22535-HM8-305.

22535-HM8-306

$82.43

18

WEIGHT SET, CLUTCH

22535-HM8-306

$82.43

19

WASHER, STEERING PIVOT

53044-HA7-670

$7.34

20

BOLT, HEX. (6X28)

90001-HA5-000

$4.04

21

NUT, SPECIAL (16MM)

90201-HB3-000

$7.49

22

NUT, SPECIAL (18MM)

90235-HB3-000

$10.45

23

WASHER (18MM)

90432-KE5-000

$4.85

24

WASHER, THRUST (12MM) (TOYO)

90452-147-003

$3.62

24

WASHER, THRUST (12MM) (THOMPSON)

90452-147-006

$3.97

25

WASHER, THRUST (20MM)

90452-413-000

$2.53

26

CIRCLIP (7MM)

90605-HM8-000

$2.02

27

BEARING, NEEDLE (12MM) (NTN)

91001-147-003

$12.58

28

CLIP, NEEDLE THRUST BEARING (12MM)

91012-KF0-000

$2.97

29

CLUTCH, ONE-WAY

91101-958-003

$152.01

30

BOLT, FLANGE (6X8)

95701-06008-00

$3.46
