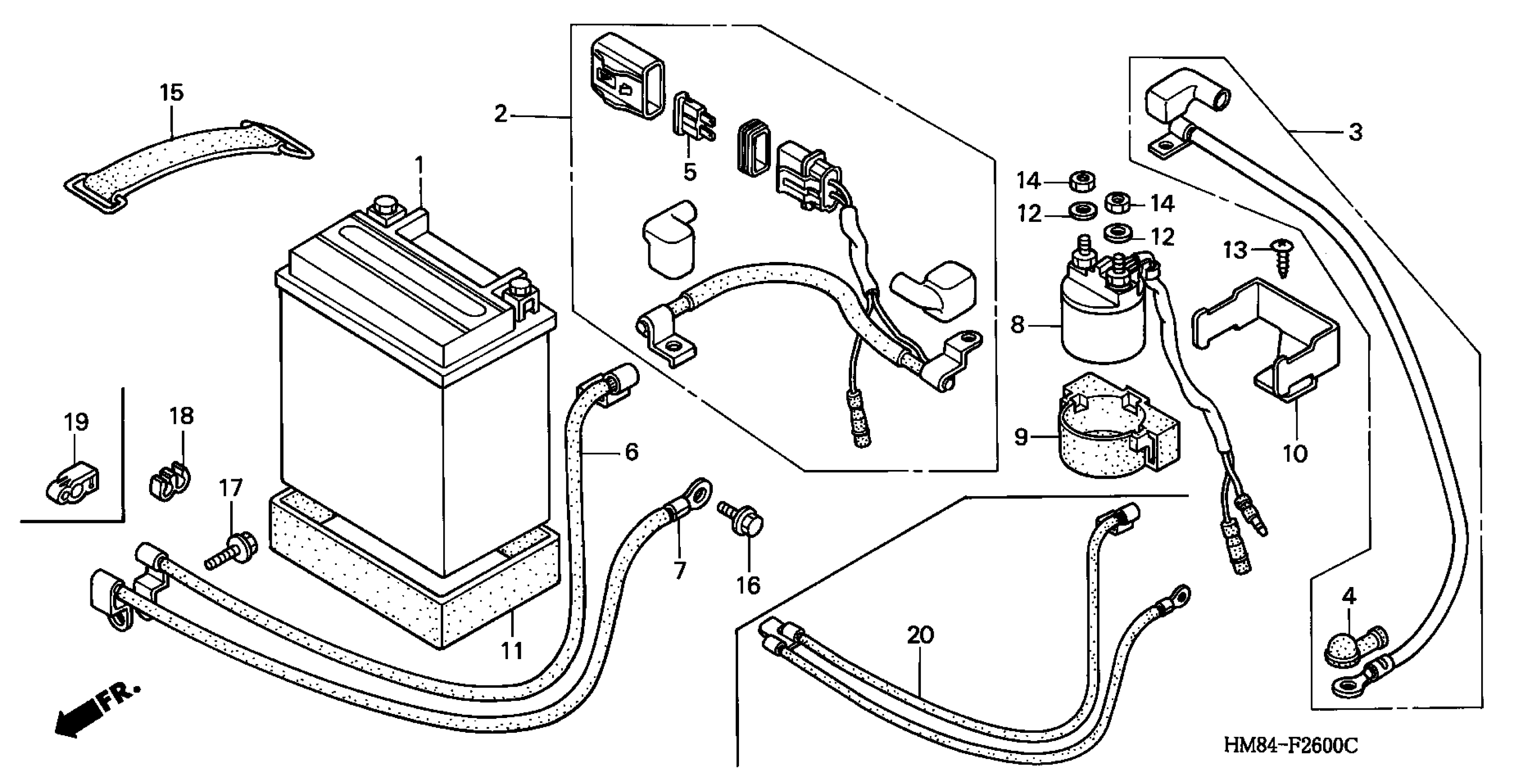

Honda TRX250A (00) TRX250 RECON, USA, VIN# 478TE210-Y4000001 BATTERY Diagram

BATTERY (YTX12-BS) This part replaces 31500-HF1-678AH.

31500-HS0-AK1AH

Unavailable

CABLE, STARTER BATTERY

32401-HM8-000

$47.51

CABLE, STARTER MOTOR

32402-HM8-000

Unavailable

COVER, TERMINAL

32411-473-000

$6.05

FUSE, BLADE (15A) This part replaces 32504-SM4-003.

98200-31500

$1.49

FUSE, BLADE (15A)

98200-31500

$1.49

CABLE, BATTERY GROUND

32601-HM8-000

Unavailable

CABLE, GROUND

32602-HM8-000

Unavailable

SWITCH ASSY., STARTER MAGNETIC

35850-HM8-000

$87.13

RUBBER, MAGNETIC SHOCK

35856-425-000

$10.91

STAY, STARTER MAGNETIC

50326-HC4-000

$8.61

RUBBER, BATTERY BAND

50383-HF1-670

$8.08

WASHER, SPRING (6MM)

90052-ZA0-800

$1.49

SCREW, TAPPING (5X12)

93903-25220

$1.49

NUT, HEX. (6MM)

94002-06390-0S

$1.49

BAND B2, BATTERY

95012-13001

$5.28

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

CLIP, BRAKE HOSE

45401-HM5-850

$1.93
