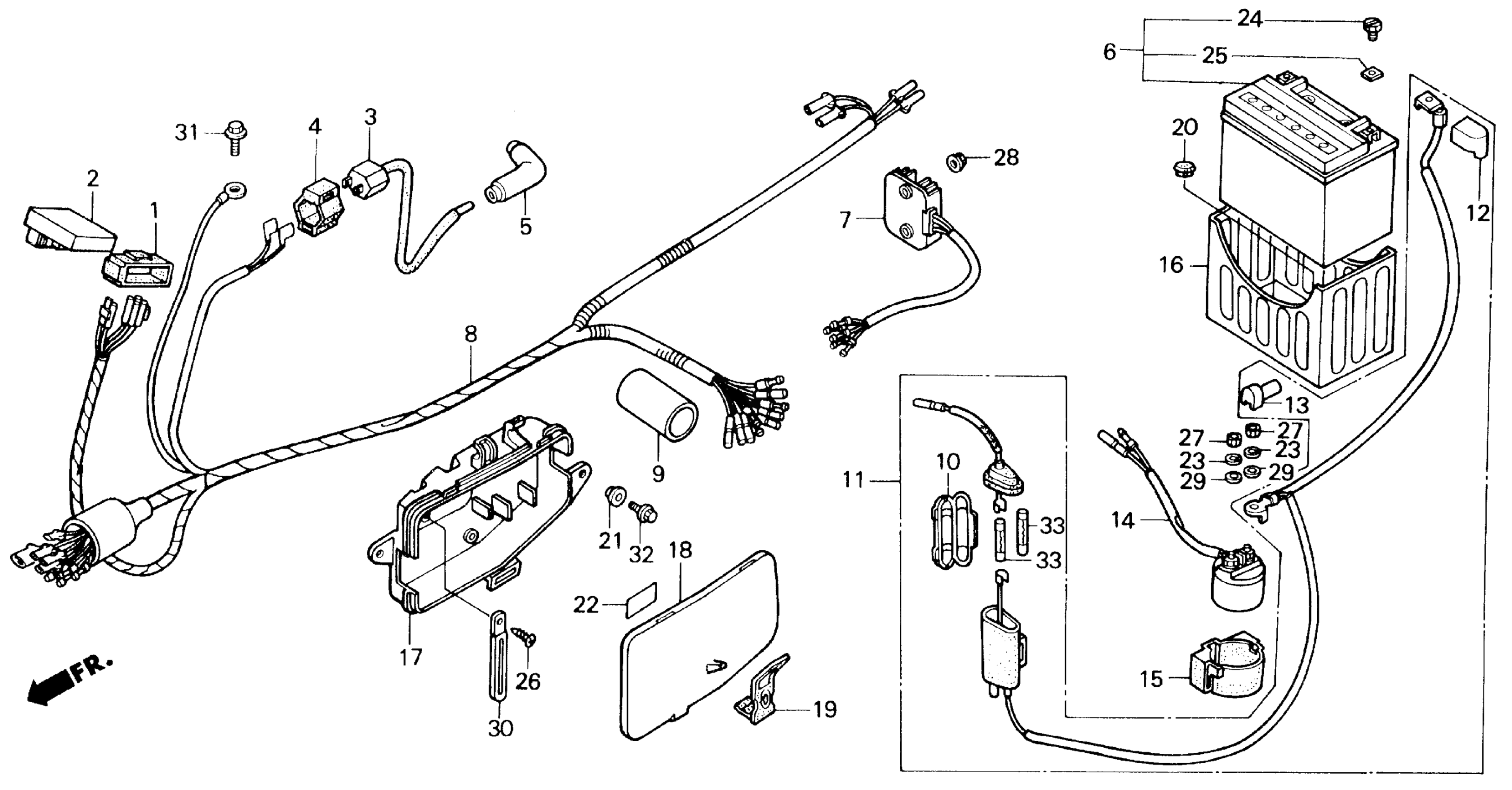

Honda TRX200SXA (88) FOURTRAX 200SX, JPN, VIN# JH3TE030-JK200003 WIRE HARNESS Diagram

#

Description
Price

1

CUSHION, IGNITION CONTROL MODULE (CDI) This part replaces 30401-HA0-000.

30401-KYY-900

$4.02

1

RUBBER, IGNITION CONTROL MODULE

30401-HB3-000

Unavailable

2

MODULE, IGNITION CONTROL (CDI) This part replaces 30410-HB3-015.

30410-HB3-018

Unavailable

2

MODULE, IGNITION CONTROL (CDI)

30410-HB3-018

Unavailable

3

COIL, IGNITION This part replaces 30501-HB3-000.

30510-KT0-405

$70.98

3

COIL, IGNITION

30510-KT0-405

$70.98

4

SUSPENSION, IGNITION COIL This part replaces 30506-KK4-000.

30506-VM6-000

Unavailable

4

SUSPENSION, IGNITION COIL

30506-VM6-000

Unavailable

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-HB3-003.

30700-HB3-013

$39.43

5

CAP ASSY., NOISE SUPPRESSOR

30700-HB3-013

$39.43

6

BATTERY (YTX12-BS) This part replaces 31500-HA0-681.

31500-HS0-AK1AH

Unavailable

6

BATTERY (YTX12-BS) This part replaces 31500-HA0-682.

31500-HS0-AK1AH

Unavailable

6

BATTERY (YTX12-BS) This part replaces 31500-HA0-683.

31500-HS0-AK1AH

Unavailable

6

BATTERY (YTX12-BS) This part replaces 31500-HA0-685.

31500-HS0-AK1AH

Unavailable

6

BATTERY (YTX12-BS) This part replaces 31500-HA0-686.

31500-HS0-AK1AH

Unavailable

6

BATTERY (YTX12-BS) This part replaces 31500-HF1-677.

31500-HS0-AK1AH

Unavailable

6

BATTERY (YTX12-BS) This part replaces 31500-HF1-678.

31500-HS0-AK1AH

Unavailable

6

BATTERY (YTX12-BS) This part replaces 31500-KM1-834.

31500-HS0-AK1AH

Unavailable

7

RECTIFIER, REGULATOR (NOT AVAILABLE)

31600-HB3-010

Unavailable

8

WIRE HARNESS (NOT AVAILABLE)

32100-HB3-000

Unavailable

9

COVER, CONNECTOR

32103-VM6-000

Unavailable

10

CASE, FUSE (15A)

32120-465-770

Unavailable

11

CABLE, BATTERY RELAY (NOT AVAILABLE)

32401-HB3-840

Unavailable

12

COVER, BATTERY TERMINAL

32412-HB3-000

Unavailable

13

COVER A, MAGNETIC SWITCH

32415-HB3-000

Unavailable

14

SWITCH ASSY., STARTING MAGNETIC

35850-HB3-771

Unavailable

15

RUBBER, MAGNETIC SHOCK

35856-425-000

$10.00

16

RUBBER, BATTERY

50334-HA0-000

Unavailable

17

CASE, ELECTRIC

61305-HB3-840

Unavailable

18

LID, ELECTRIC (NOT AVAILABLE)

61306-HB3-840

Unavailable

19

BAND, TOOL BOX This part replaces 80214-HA8-680.

80214-HM5-850

$2.29

19

BAND, TOOL BOX

80214-HM5-850

$2.29

23

WASHER, SPRING (6MM)

90052-ZA0-800

$1.00

24

BOLT, BATTERY TERMINAL

90122-HA0-007

$1.53

25

NUT, BATTERY TERMINAL This part replaces 90306-HA0-680.

90306-HA0-681

$1.84

25

NUT, BATTERY TERMINAL

90306-HA0-681

$1.84

26

SCREW, TAPPING (4X8)

93903-24120

$0.90

27

NUT, HEX. (6MM)

94002-06390-0S

$0.78

28

NUT, FLANGE (6MM) | Use up to Frame SN JK209737

94050-06080

$0.60

28

NUT, FLANGE (6MM) | Use from Frame SN JK209738

90302-187-000

$2.21

30

CLIP (4X100) This part replaces 94591-21000.

94591-41000

$4.01

30

CLIP (4X100)

94591-41000

$4.01

31

BOLT, FLANGE (6X10)

96300-06010-08

$1.76

31

BOLT, FLANGE (6X10) This part replaces 96500-06010-08.

96300-06010-08

$1.76

32

BOLT (6MM)

90109-434-000

$2.68

33

FUSE B (15A)

98200-21500

$0.99
