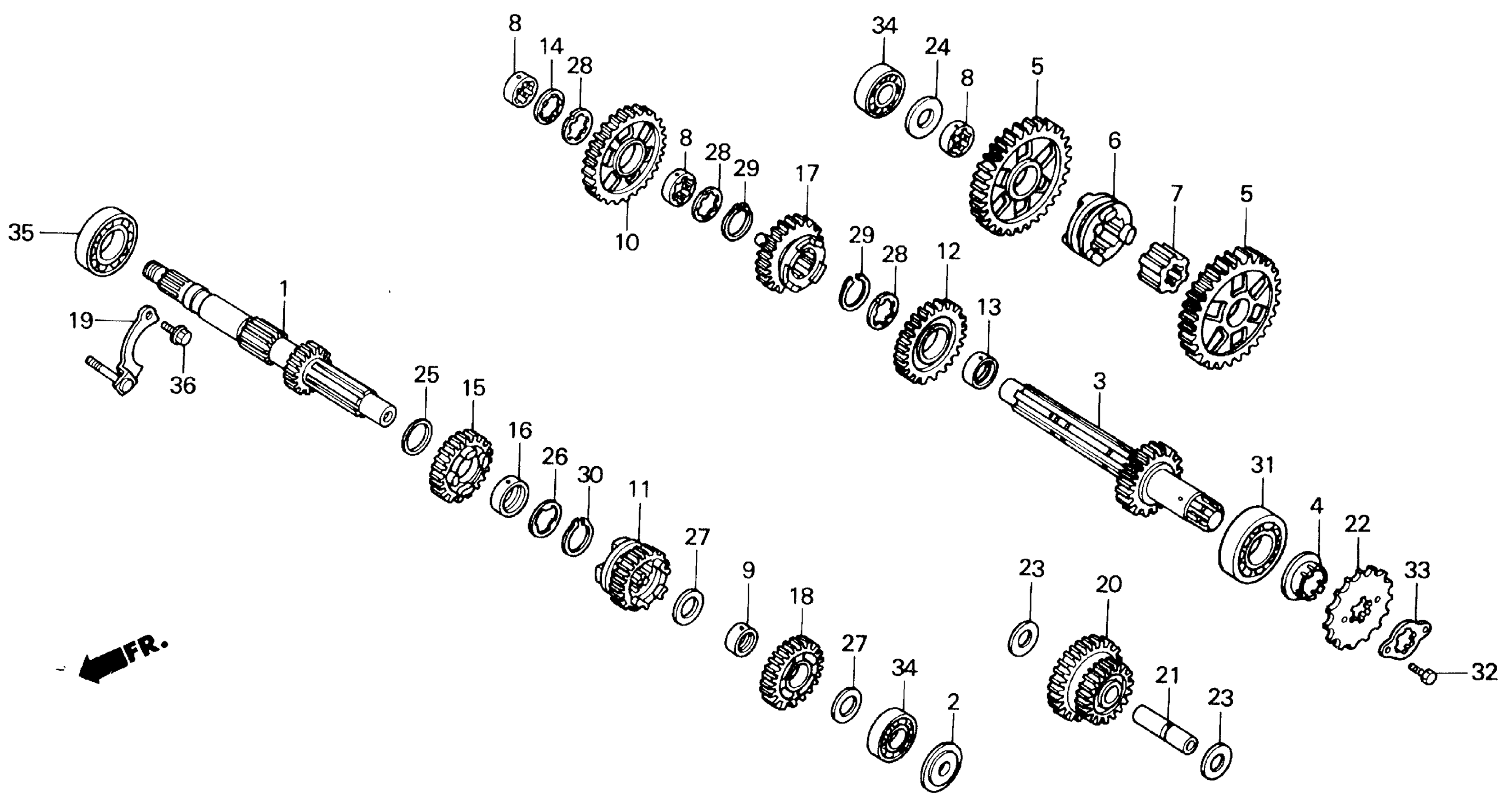

Honda TRX200SXA (88) FOURTRAX 200SX, JPN, VIN# JH3TE030-JK200003 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION

23211-HB3-000

$140.59

2

PLATE, OIL GUIDE

23219-HB3-000

Unavailable

3

COUNTERSHAFT

23220-HB3-000

Unavailable

4

COLLAR, COUNTERSHAFT

23223-HB3-000

Unavailable

5

GEAR, COUNTERSHAFT LOW & REVERSE (39T)

23411-HB3-000

Unavailable

6

SHIFTER, REVERSE COUNTERSHAFT LOW GEAR

23412-HB3-000

Unavailable

7

COLLAR, SPLINE

23413-HB3-000

$65.95

8

BUSH, SPLINE (22X8.5)

23414-HB3-000

$19.64

9

BUSH (15MM)

23415-HB3-000

$16.80

10

GEAR, COUNTERSHAFT SECOND (34T)

23431-HB3-000

Unavailable

11

GEAR, MAINSHAFT THIRD (19T)

23441-HB3-000

Unavailable

12

GEAR, COUNTERSHAFT THIRD (31T)

23451-HB3-000

Unavailable

13

BUSH (22MM)

23452-HB3-000

$19.64

14

WASHER, LOCK

23456-KA3-000

$5.87

15

GEAR, MAINSHAFT FOURTH (22T) This part replaces 23461-HB3-000.

23461-HF1-910

Unavailable

15

GEAR, MAINSHAFT FOURTH (22T)

23461-HF1-910

Unavailable

16

BUSH (20MM)

23462-HB3-000

$19.64

17

GEAR, COUNTERSHAFT FOURTH (27T)

23471-HB3-000

Unavailable

18

GEAR, MAINSHAFT FIFTH (25T) This part replaces 23481-HB3-000.

23481-HB3-010

Unavailable

18

GEAR, MAINSHAFT FIFTH (25T)

23481-HB3-010

Unavailable

19

PLATE, BEARING SETTING

23521-KT2-000

Unavailable

20

GEAR, REVERSE IDLE

23721-HB3-000

Unavailable

21

SHAFT, REVERSE IDLE

23731-HB3-000

$24.61

22

SPROCKET, DRIVE (12T)

23803-HB3-000

Unavailable

23

WASHER, THRUST (13X27X1)

90451-HB3-000

$3.20

24

WASHER, THRUST (15MM)

90452-HB3-000

$8.07

25

WASHER, THRUST (20MM)

90454-107-000

$1.80

26

WASHER A, SPLINE (20MM)

90455-107-000

$1.92

27

WASHER, THRUST (15X1)

90457-HB3-000

$2.89

28

WASHER, SPLINE (22MM)

90464-KE7-000

Unavailable

29

CIRCLIP (OUTER) (22MM)

90601-329-000

$2.67

30

SET-RING (20MM)

90605-200-000

$2.92

31

BEARING, BALL (62/22) (KOYO) This part replaces 91004-KK0-003.

91004-KW3-004

$31.42

31

BEARING, BALL (62/22) (KOYO)

91004-KW3-004

$31.42

32

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

32

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

32

BOLT, HEX. (6X10) This part replaces 92000-06010-0A.

92101-06010-0A

$1.49

33

PLATE B, FIXING | Use up to Engine SN 5210181

95014-92100

$1.49

33

PLATE A2, FIXING | Use from Engine SN 5210182

23811-KR3-600

$4.57

34

BEARING, RADIAL BALL (6202)

96100-62020-00

$9.18

35

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22

36

BOLT, FLANGE (6X14)

96300-06014-00

$1.49

36

BOLT, FLANGE (6X14) This part replaces 96500-06014-00.

96300-06014-00

$1.49
