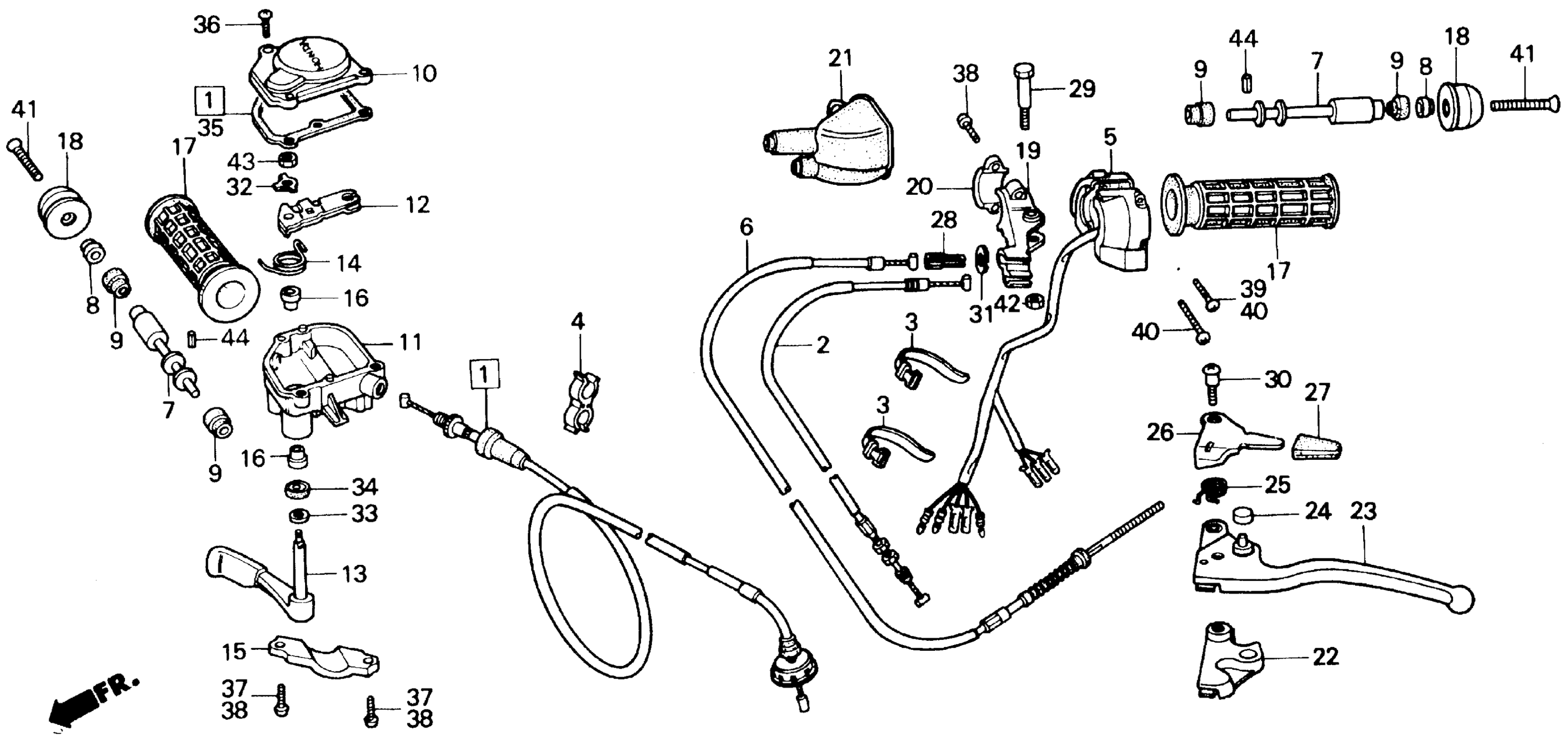

Honda TRX200SXA (88) FOURTRAX 200SX, JPN, VIN# JH3TE030-JK200003 SWITCH Diagram

#

Description
Price

1

CABLE SET, THROTTLE

17920-HB3-315

Unavailable

2

CABLE, REVERSE ASSIST

22880-HB3-000

Unavailable

3

BAND B1, CABLE

32161-404-000

$2.16

4

CLAMP, IGNITION WIRE

32802-MB2-000

Unavailable

5

SWITCH ASSY., LIGHTING & STOP This part replaces 35200-HB3-003.

35200-HB3-013

Unavailable

5

SWITCH ASSY., LIGHTING & STOP

35200-HB3-013

Unavailable

6

CABLE, HANDLE BRAKE

43460-HB3-405

Unavailable

6

CABLE, HANDLE BRAKE This part replaces 43460-HB3-770.

43460-HB3-405

Unavailable

7

WEIGHT B, HANDLEBAR

53101-MC7-000

Unavailable

8

COLLAR, HANDLE WEIGHT

53102-HB3-000

Unavailable

9

RUBBER, HANDLE WEIGHT

53107-121-730

Unavailable

10

COVER, THROTTLE CASE

53141-HC3-000

Unavailable

11

CASE, THROTTLE LEVER

53142-HC0-770

$38.21

12

ARM, THROTTLE

53144-HA0-010

$7.36

13

LEVER, THROTTLE

53145-HA0-770

$21.43

14

SPRING, THROTTLE RETURN

53146-HA0-000

$4.31

15

HOLDER, THROTTLE CASE

53147-HC3-000

$8.50

16

BUSH, THROTTLE PIVOT

53148-HA0-000

$7.64

17

GRIP, HANDLE

53165-958-010

$12.28

18

GUARD, HANDLE END

53167-HB3-000

Unavailable

19

BRACKET, BRAKE LEVER (NOT AVAILABLE) This part replaces 53172-HA8-681.

53172-HA8-682

Unavailable

19

BRACKET, BRAKE LEVER

53172-HA8-682

Unavailable

20

HOLDER, LEVER BRACKET

53173-376-000

$10.04

21

COVER, L. HANDLEBAR

53177-HA0-680

$10.75

22

ARM, REVERSE ASSIST

53179-HA6-000

$13.93

23

LEVER, RR. BRAKE

53180-HA8-770

$26.97

24

CAP, REVERSE PIN

53187-VM6-000

$3.71

25

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.31

26

LEVER, PARKING BRAKE LOCK This part replaces 53192-HA8-770.

53192-HA8-771

$10.56

26

LEVER, PARKING LOCK

53192-HA8-771

$10.56

27

CAP, PARKING LEVER

53193-HA0-770

$5.87

28

BOLT, WIRE ADJUSTING

53193-968-000

Unavailable

29

BOLT, HANDLE LEVER PIVOT | Use up to Frame SN 0209737

90114-HA6-000

Unavailable

29

BOLT, HANDLE LEVER PIVOT | Use from Frame SN 0209738

90114-HA0-770

$2.37

29

BOLT, HANDLE LEVER PIVOT | Use from Frame SN 0209738 This part replaces 90114-VM6-000.

90114-HA0-770

$2.37

30

SCREW, PARKING LEVER PIVOT

90115-HA6-000

$3.90

31

NUT, FIXING

90321-315-670

$6.97

31

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$6.97

32

WASHER, LOCK (6MM)

90501-HA0-000

$2.80

33

WASHER (9X20)

90504-HA0-000

$2.10

34

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.74

34

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.74

35

GASKET, THROTTLE CASE

91532-HA0-020

$5.87

36

SCREW, PAN (4X16)

93500-04016-0G

$0.82

37

SCREW, PAN (5X14)

93500-05014-0G

$3.40

38

SCREW, PAN (5X18)

93500-05018-0G

$0.43

40

SCREW, PAN (5X25)

93500-05025-0G

$0.69

41

SCREW, FLAT (6X40)

93600-06040-0G

$0.76

42

NUT, HEX. (6MM)

94001-06070-0S

$1.31

43

NUT, HEX. (6MM)

94002-06080-0S

$1.31

44

PIN, SPRING (4X22)

94305-40222

$1.72
