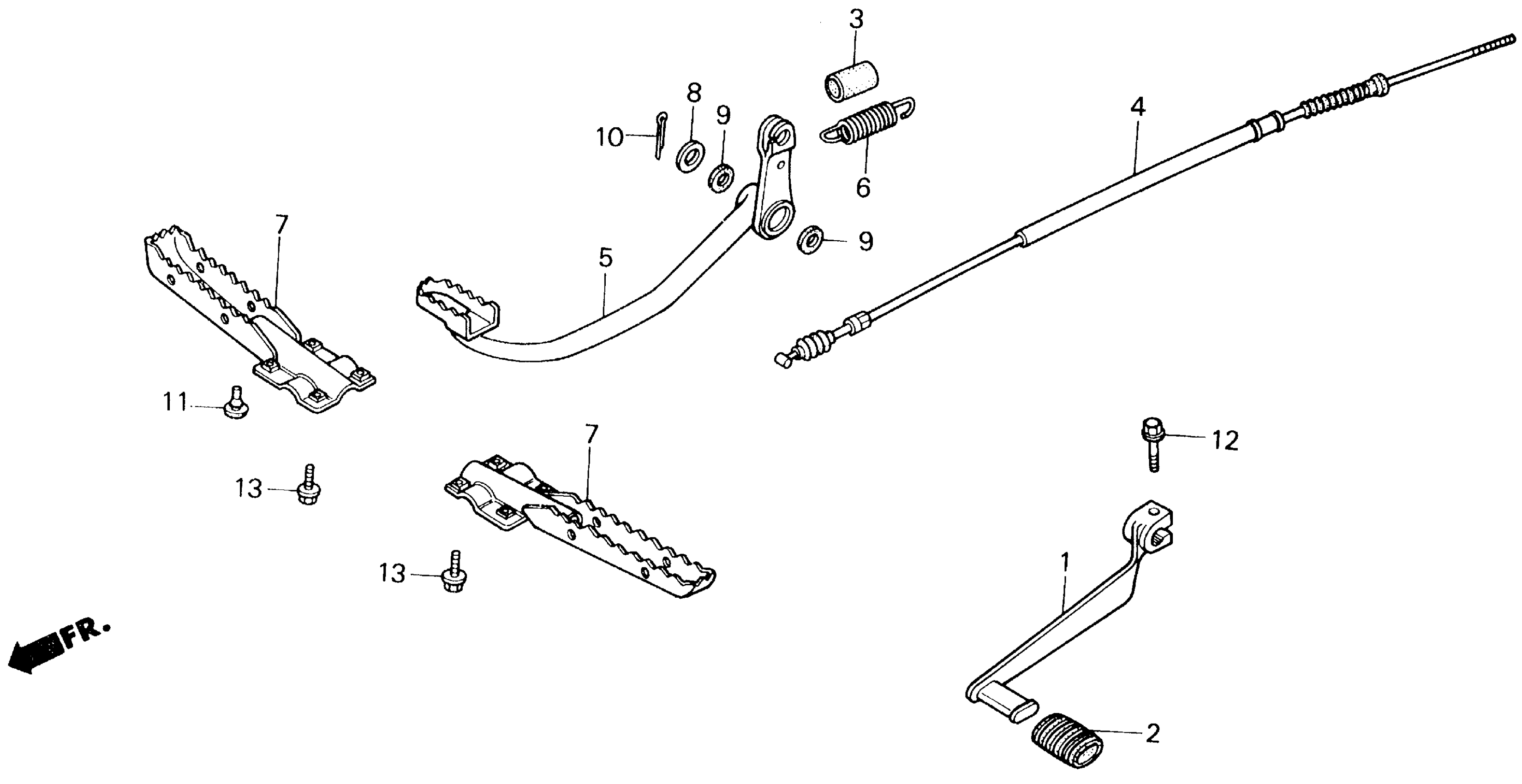

Honda TRX200SXA (88) FOURTRAX 200SX, JPN, VIN# JH3TE030-JK200003 STEP Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24701-HB3-000

Unavailable

2

RUBBER, GEARSHIFT PEDAL

24781-371-000

$5.13

3

TUBE, BRAKE PEDAL SPRING

41516-HB3-000

Unavailable

4

CABLE, FOOT BRAKE

43470-HB3-770

Unavailable

5

PEDAL, BRAKE

46500-HB3-000

Unavailable

6

SPRING, BRAKE RETURN (NOT AVAILABLE)

46514-HB3-000

Unavailable

7

BAR, STEP This part replaces 50610-HB3-000.

50610-HB3-405

Unavailable

7

BAR, STEP

50610-HB3-405

Unavailable

8

WASHER (17.5MM)

90512-303-000

$1.77

9

DUST SEAL (17X23X3)

91206-968-003

$3.69

10

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

10

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

10

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

10

PIN, COTTER (3.0X45)

94201-30450

$1.49

11

RUBBER, BRAKE STOPPER

90560-HB3-000

Unavailable

12

BOLT, FLANGE (6X20)

90118-968-000

$4.24

13

BOLT, FLANGE (8X16) | Use up to Frame SN JK209737

95701-08016-08

$1.80

13

BOLT, FLANGE (8X16) | Use up to Frame SN JK209737 This part replaces 95900-08016-0B.

95701-08016-08

$1.80

13

BOLT, FLANGE (8X16) | Use up to Frame SN JK209737 This part replaces 95900-08016-08.

95701-08016-08

$1.80

13

BOLT, FLANGE (8X16) | Use up to Frame SN JK209737 This part replaces 96500-08016-08.

95701-08016-08

$1.80

13

BOLT, FLANGE (8X16) | Use from Frame SN JK209738

96300-08016-07

$1.49

13

BOLT, FLANGE (8X16) | Use from Frame SN JK209738 This part replaces 96500-08016-07.

96300-08016-07

$1.49
