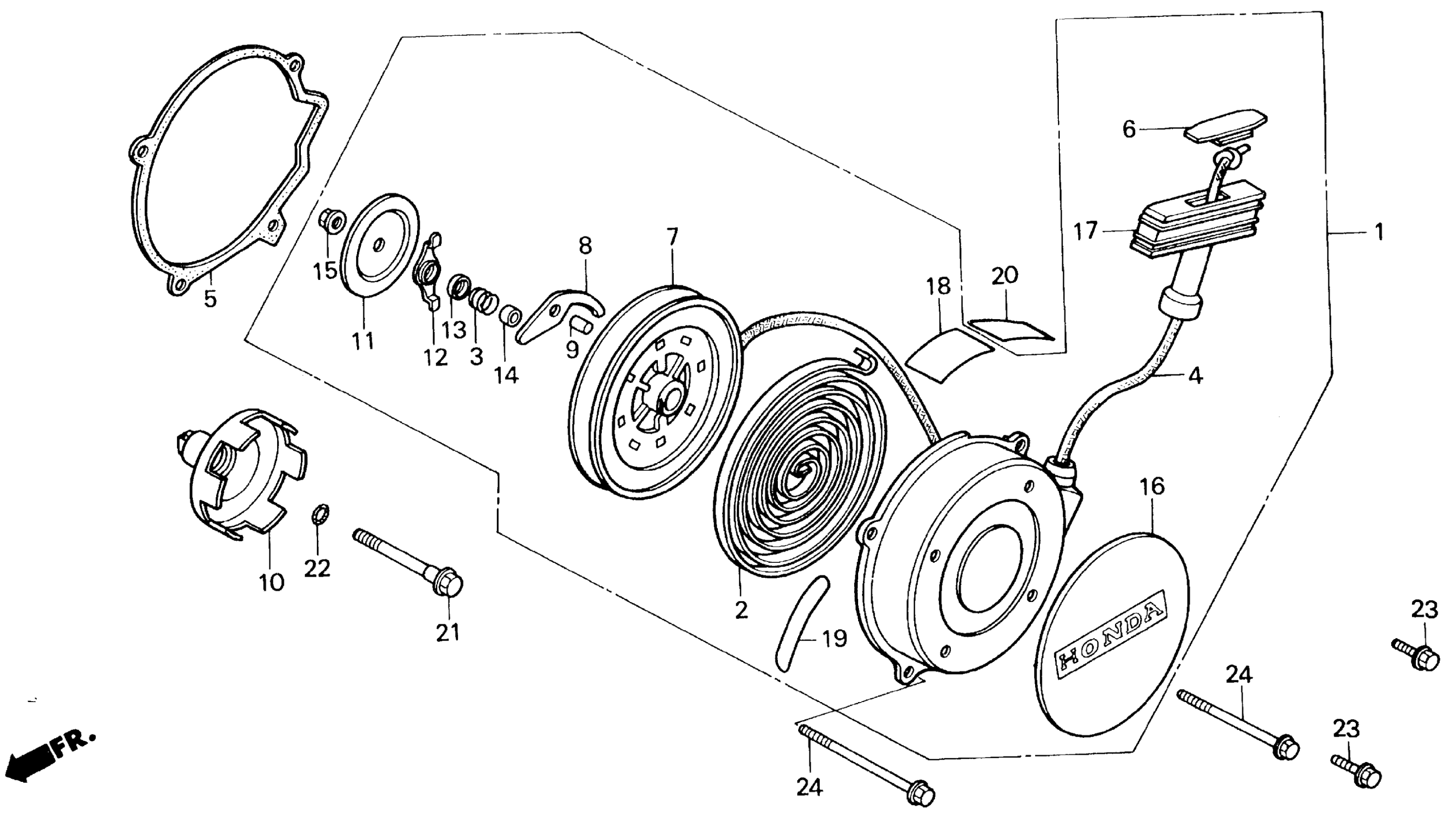

Honda TRX200SXA (88) FOURTRAX 200SX, JPN, VIN# JH3TE030-JK200003 RECOIL STARTER Diagram

#

Description
Price

1

STARTER ASSY., RECOIL

28400-HB3-841

Unavailable

2

SPRING, RECOIL STARTER

28402-968-004

Unavailable

3

SPRING, FRICTION

28404-968-004

$3.38

4

ROPE, RECOIL STARTER This part replaces 28407-HB3-004.

28407-HE0-004

Unavailable

4

ROPE, RECOIL STARTER

28407-HE0-004

Unavailable

6

CAP, KNOB

28414-958-004

Unavailable

7

REEL, STARTER

28420-968-004

Unavailable

8

RATCHET, STARTER

28422-ZE1-003

$4.80

9

PIN, STARTER RATCHET

28423-968-004

Unavailable

10

PULLEY, RECOIL

28430-HB3-000

Unavailable

11

PLATE, FRICTION

28431-ZE1-003

$5.08

12

GUIDE, RATCHET

28433-968-004

Unavailable

13

COVER, SPRING

28446-968-004

$5.84

14

SHAFT, SUB

28447-968-004

Unavailable

15

NUT

28448-ZE1-003

Unavailable

16

COVER, RECOIL STARTER

28450-HB3-004

Unavailable

17

KNOB, STARTER

28461-958-003

Unavailable

18

MARK, NEUTRAL CAUTION

87103-HC3-000

Unavailable

19

LABEL, SHIFT PATTERN

87104-HB3-000

Unavailable

20

LABEL, DECOMPRESSION CAUTION

87105-HB3-000

Unavailable

21

BOLT, SPECIAL (8MM)

90081-HB3-000

Unavailable

22

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.92

23

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

23

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

24

BOLT, FLANGE (6X65) This part replaces 96000-06065-00.

96001-06065-00

$2.34

24

BOLT, FLANGE (6X65)

96001-06065-00

$2.34
