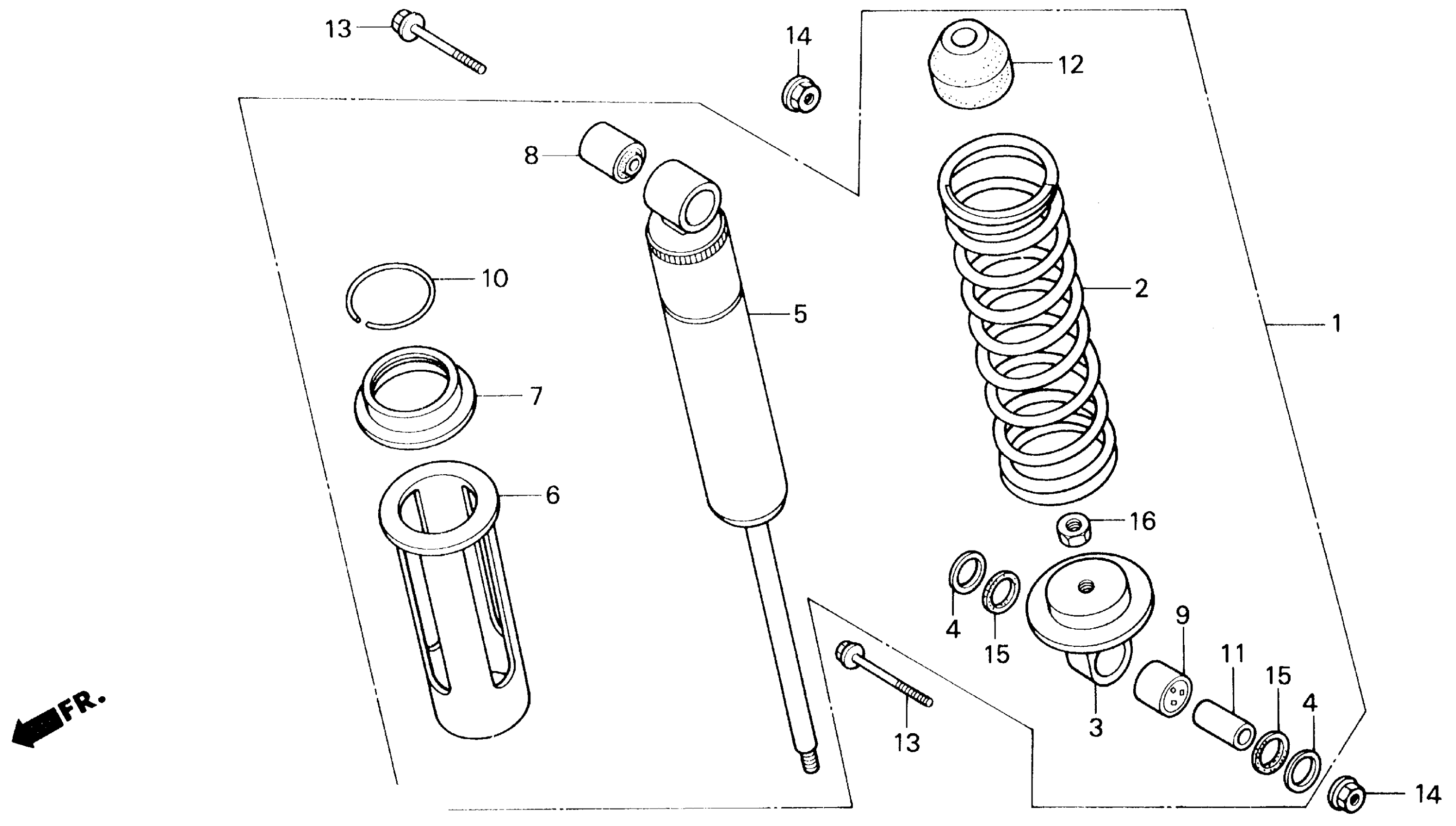

Honda TRX200SXA (88) FOURTRAX 200SX, JPN, VIN# JH3TE030-JK200003 REAR SHOCK ABSORBER Diagram

SHOCK ABSORBER ASSY., RR.

52400-HB3-003

Unavailable

SPRING, RR. SHOCK ABSORBER (SHOWA) (NOT AVAILABLE)

52401-HB3-003

Unavailable

METAL (LOWER)

52403-HB3-003

Unavailable

CAP, DUST SEAL

52406-KB7-003

$6.48

DAMPER, RR.

52410-HB3-003

Unavailable

GUIDE, SPRING (NOT AVAILABLE)

52423-VM0-003

Unavailable

METAL, BUSH

52425-GC5-003

Unavailable

BUSH, SHOCK ABSORBER

52451-HA6-003

Unavailable

BUSH, SHOCK ABSORBER (UPPER)

52452-KB7-003

$15.55

RING C, STOPPER

52460-446-003

Unavailable

COLLAR, SHOCK ABSORBER (UPPER)

52486-KB7-003

$14.81

RUBBER, STOPPER

52517-VM0-771

Unavailable

BOLT, FLANGE (10X55)

90153-KF0-000

$9.92

NUT, U (10MM)

90304-GE8-003

$3.67

DUST SEAL B

91351-KB7-003

$3.49

NUT, HEX. (12MM)

94002-12000-0S

$2.06
