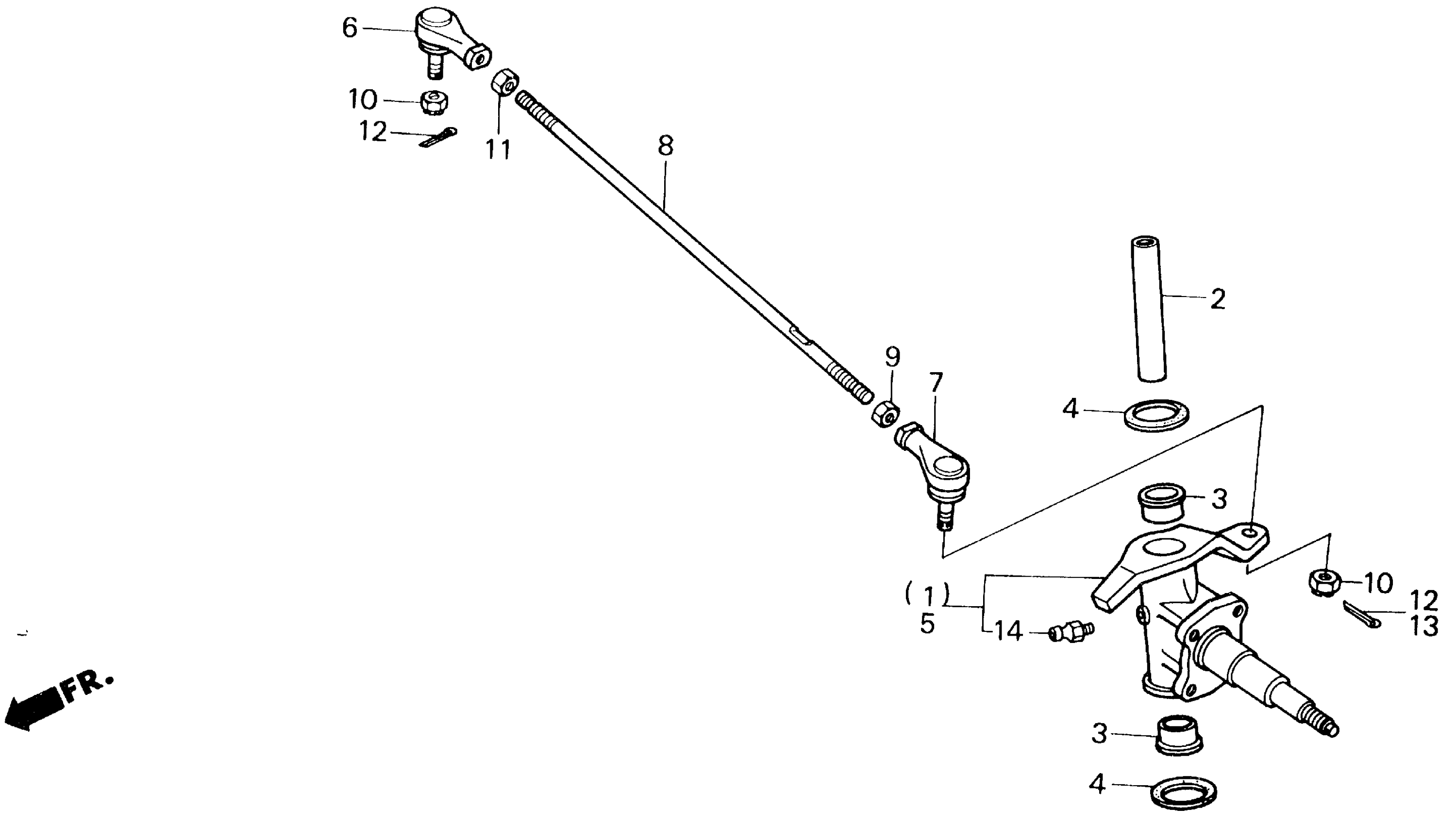

Honda TRX200SXA (88) FOURTRAX 200SX, JPN, VIN# JH3TE030-JK200003 KNUCKLE Diagram

#

Description
Price

1

KNUCKLE, R.

51210-HB3-010

Unavailable

2

COLLAR, KINGPIN

51214-HB3-000

Unavailable

3

BUSH, KINGPIN This part replaces 51215-VM6-000.

51215-VM6-003

$19.89

3

BUSH, KINGPIN

51215-VM6-003

$19.89

4

DUST SEAL, KINGPIN This part replaces 51217-VM5-000.

51217-VM5-003

$4.67

4

DUST SEAL, KINGPIN

51217-VM5-003

$4.67

4

DUST SEAL, KINGPIN This part replaces 51217-VM5-004.

51217-VM5-003

$4.67

5

KNUCKLE, L. (NOT AVAILABLE)

51220-HB3-010

Unavailable

6

JOINT, BALL (RIGHT HAND THREAD)

53150-HB3-003

$68.76

7

JOINT, BALL (LEFT HAND THREAD)

53158-HB3-003

$64.05

8

TIE ROD

53521-HB3-770

Unavailable

9

NUT, HEX. (10MM) (LEFT HAND THREAD)

90311-VM5-010

$2.92

10

NUT, CASTLE (10MM)

90320-601-000

$9.85

11

NUT, HEX. (10MM)

94030-10200

$1.49

12

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

12

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

12

PIN, COTTER (2.5MM)

94201-25300

$1.49

13

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

13

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

13

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

13

PIN, COTTER (3.0X45)

94201-30450

$1.49

14

FITTING, GREASE (A.76)

96201-10000

$2.52
