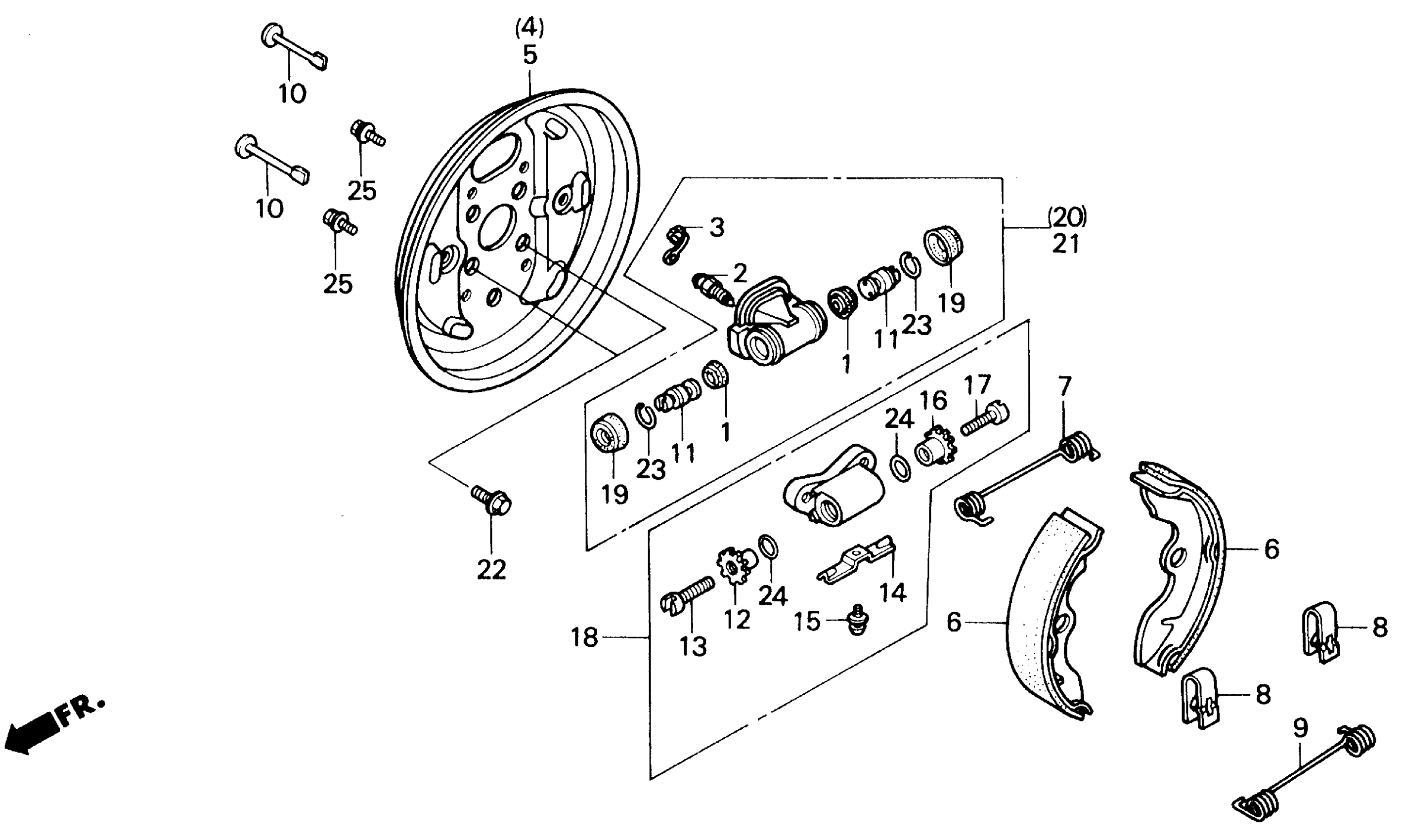

Honda TRX200SXA (88) FOURTRAX 200SX, JPN, VIN# JH3TE030-JK200003 FRONT BRAKE PANEL Diagram

#

Description
Price

NI

SHOE KIT, BRAKE

451A5-HB3-003

$26.83

1

CUP, WHEEL CYLINDER This part replaces 43341-659-003.

43341-659-003P

Unavailable

1

CUP, WHEEL CYLINDER

43341-659-003P

Unavailable

2

SCREW, BLEEDER

43352-568-003

$7.95

3

CAP, BLEEDER

43353-461-771

$5.05

4

PLATE, R. BACK

45110-HB3-003

Unavailable

5

PLATE, L. BACK

45120-HB3-003

Unavailable

6

SHOE, FR. BRAKE (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45151-HB3-003

Unavailable

7

BRAKE, SPRING A (NOT AVAILABLE)

45171-HB3-003

$3.25

8

SPRING, SHOE CLAMP (NISSIN)

45172-HB3-003

$6.34

9

BRAKE, SPRING B (NOT AVAILABLE)

45173-HB3-003

Unavailable

10

PIN, TENSIONER

45175-VM0-003

$3.77

11

PISTON, WHEEL CYLINDER (NOT AVAILABLE)

45314-HB3-003

Unavailable

12

NUT, R. ADJUSTER

45316-VM0-003

$9.18

13

SCREW, R. FR. ADJUSTING

45317-634-013

$5.78

14

SPRING, LOCK

45318-HB3-003

$6.28

15

SCREW-WASHER (4X6)

45319-634-003

$2.48

16

NUT, L. ADJUSTER

45336-VM0-003

$9.74

17

SCREW, L. ADJUSTING

45337-634-013

$5.78

18

ADJUSTER ASSY. (NISSHIN)

45340-HB3-003

$53.16

19

BOOT, WHEEL CYLINDER

45342-HB3-003

$6.16

20

CYLINDER ASSY., R. (NISSHIN)

45350-HB3-003

Unavailable

21

CYLINDER ASSY., L. (NISSHIN)

45370-HB3-003

Unavailable

22

BOLT, FLANGE (8X12)

90190-MG3-000

$3.58

23

CLIP, PISTON (NOT AVAILABLE)

90651-HB3-003

Unavailable

24

O-RING (14X1.5)

91351-VM0-003

$2.61

25

BOLT-WASHER (6X12)

93402-06012-08

$1.62

25

BOLT-WASHER (6X12) This part replaces 93412-06012-08.

93402-06012-08

$1.62

25

BOLT-WASHER (6X12) This part replaces 93492-06012-08.

93402-06012-08

$1.62
