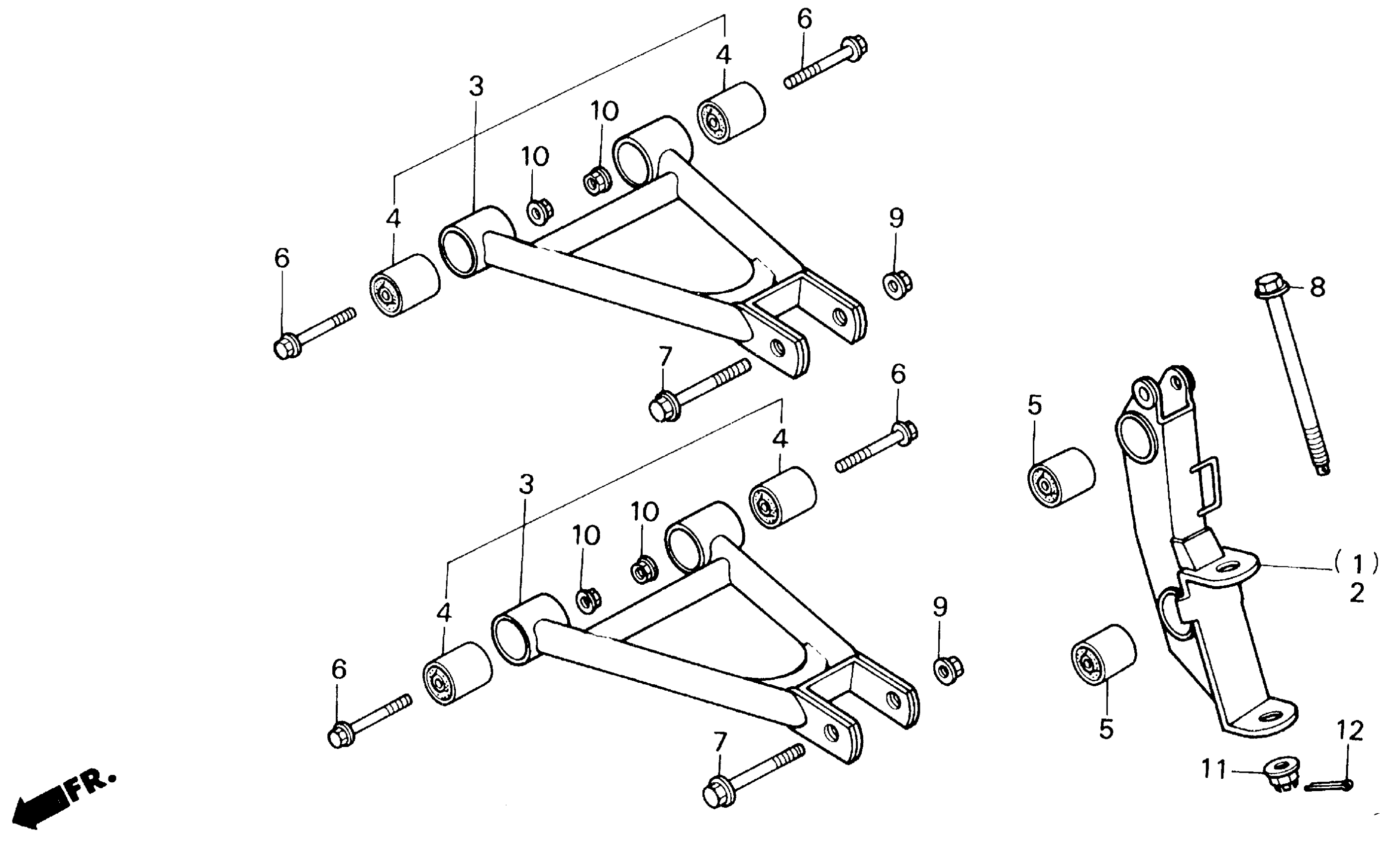

Honda TRX200SXA (88) FOURTRAX 200SX, JPN, VIN# JH3TE030-JK200003 FRONT ARM Diagram

HOLDER, R. KNUCKLE

51310-HB3-770

Unavailable

HOLDER, L. KNUCKLE (NOT AVAILABLE)

51320-HB3-770

Unavailable

ARM ASSY., FR. *NH1* (BLACK)

51350-HB3-770ZA

Unavailable

BUSH, FR. ARM (INNER)

51392-HB3-000

Unavailable

BUSH, FR. ARM (OUTER) | Use up to Frame SN JK210101

51393-HB3-000

Unavailable

BOLT, FLANGE (8X62)

90113-HB3-000

Unavailable

BOLT, FLANGE (10X70)

96400-10070-00

Unavailable

BOLT, KINGPIN (12X115)

90198-HB3-000

Unavailable

NUT, SELF-LOCK (10MM)

90212-671-005

$1.49

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

NUT, FLANGE (8MM)

90309-428-731

$3.35

NUT, CASTLE (12MM)

94011-12280-0S

Unavailable

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, COTTER (3.0X45)

94201-30450

$1.49
