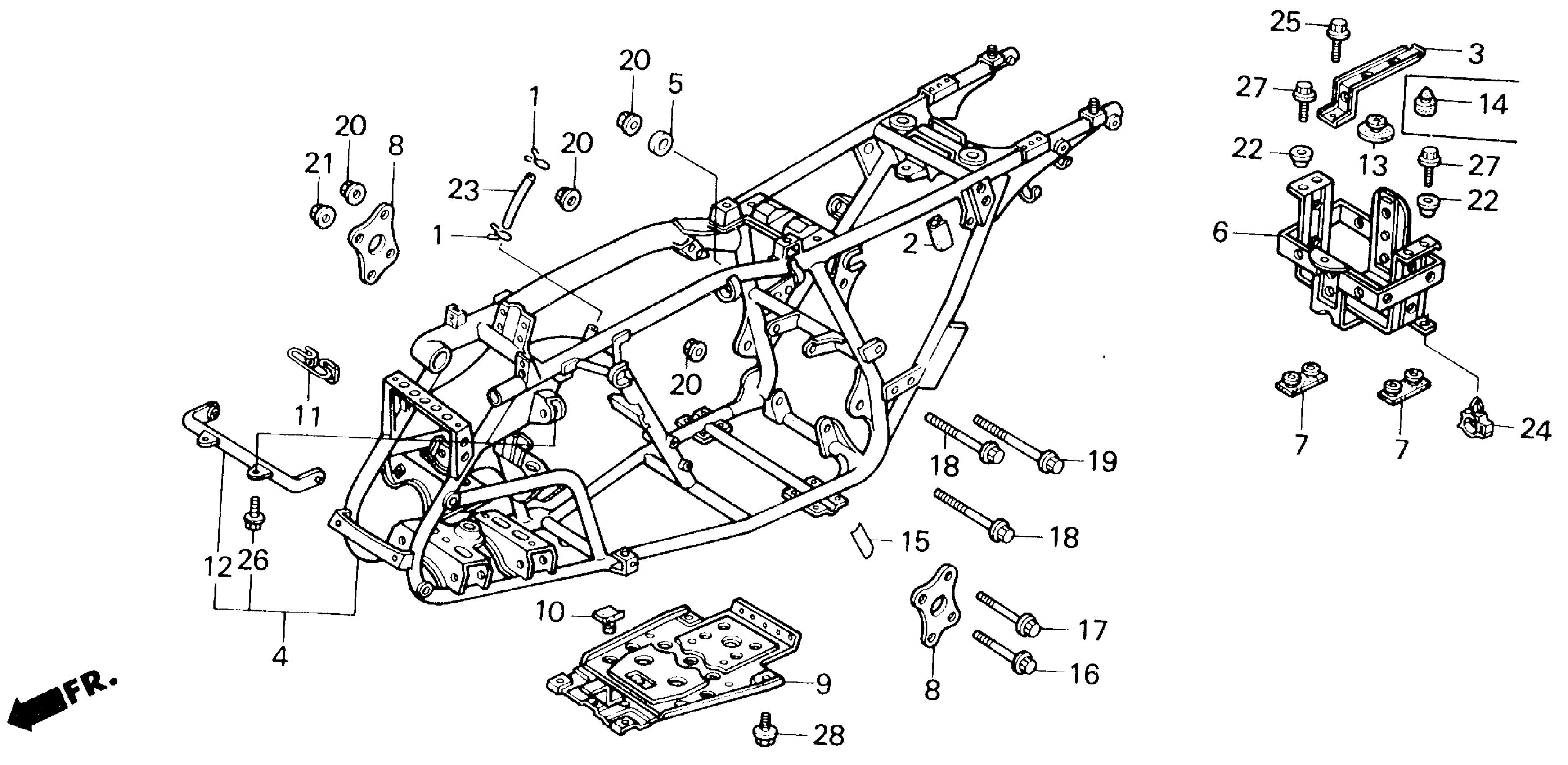

Honda TRX200SXA (88) FOURTRAX 200SX, JPN, VIN# JH3TE030-JK200003 FRAME Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

17316-611-000

$9.23

2

PROTECTOR, HARNESS

32106-HB3-770

Unavailable

3

BAND, BATTERY (NOT AVAILABLE)

31512-HB3-770

Unavailable

4

FRAME *NH1* (BLACK)

50100-HB3-840ZA

Unavailable

5

COLLAR, ENGINE SETTING (UPPER)

50251-HB3-000

Unavailable

6

BOX, BATTERY (NOT AVAILABLE)

50310-HB3-010

Unavailable

7

GROMMET, BATTERY BOX

50317-HB3-000

Unavailable

8

HANGER, FR. ENGINE (NOT AVAILABLE)

50351-HB3-770

Unavailable

9

PLATE, DUST GUARD (NOT AVAILABLE)

50353-HB3-000

Unavailable

10

RUBBER A, STOPPER (NOT AVAILABLE)

50361-HA0-000

Unavailable

11

GUIDE, WIRE

50365-HB3-000

Unavailable

12

STAY, FR. FENDER (UPPER)

61103-HB3-000

Unavailable

13

RUBBER, SEAT STOPPER

77103-GK4-000

$4.48

16

BOLT, FLANGE (8X85)

90105-HB3-000

Unavailable

17

BOLT, FLANGE (10X85)

90106-HB3-000

Unavailable

18

BOLT, FLANGE (10X100) This part replaces 90107-HB3-000.

90107-KV0-700

Unavailable

19

BOLT, FLANGE (10X135)

90151-HA5-000

Unavailable

20

NUT, U (10MM)

90304-GE8-003

$3.67

21

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

21

NUT, FLANGE (8MM)

90309-428-731

$3.35

22

COLLAR, CANISTER MOUNTING

19052-MB4-880

$3.69

23

TUBE, BREATHER

90550-HB3-000

Unavailable

24

CLIP, WIRE HARNESS

90650-SD9-003

$6.43

25

BOLT, RECESSED (6X12) This part replaces 92300-06012-0A.

92301-06012-0A

$1.49

25

BOLT, RECESSED (6X12)

92301-06012-0A

$1.49

26

BOLT, FLANGE (6X10)

96300-06010-08

$1.77

26

BOLT, FLANGE (6X10) This part replaces 96500-06010-08.

96300-06010-08

$1.77

27

BOLT, FLANGE (6X18)

96300-06018-08

Unavailable

27

BOLT, FLANGE (6X18) This part replaces 96500-06018-08.

96300-06018-08

Unavailable

28

BOLT, FLANGE (8X12)

96500-08012-08

Unavailable
