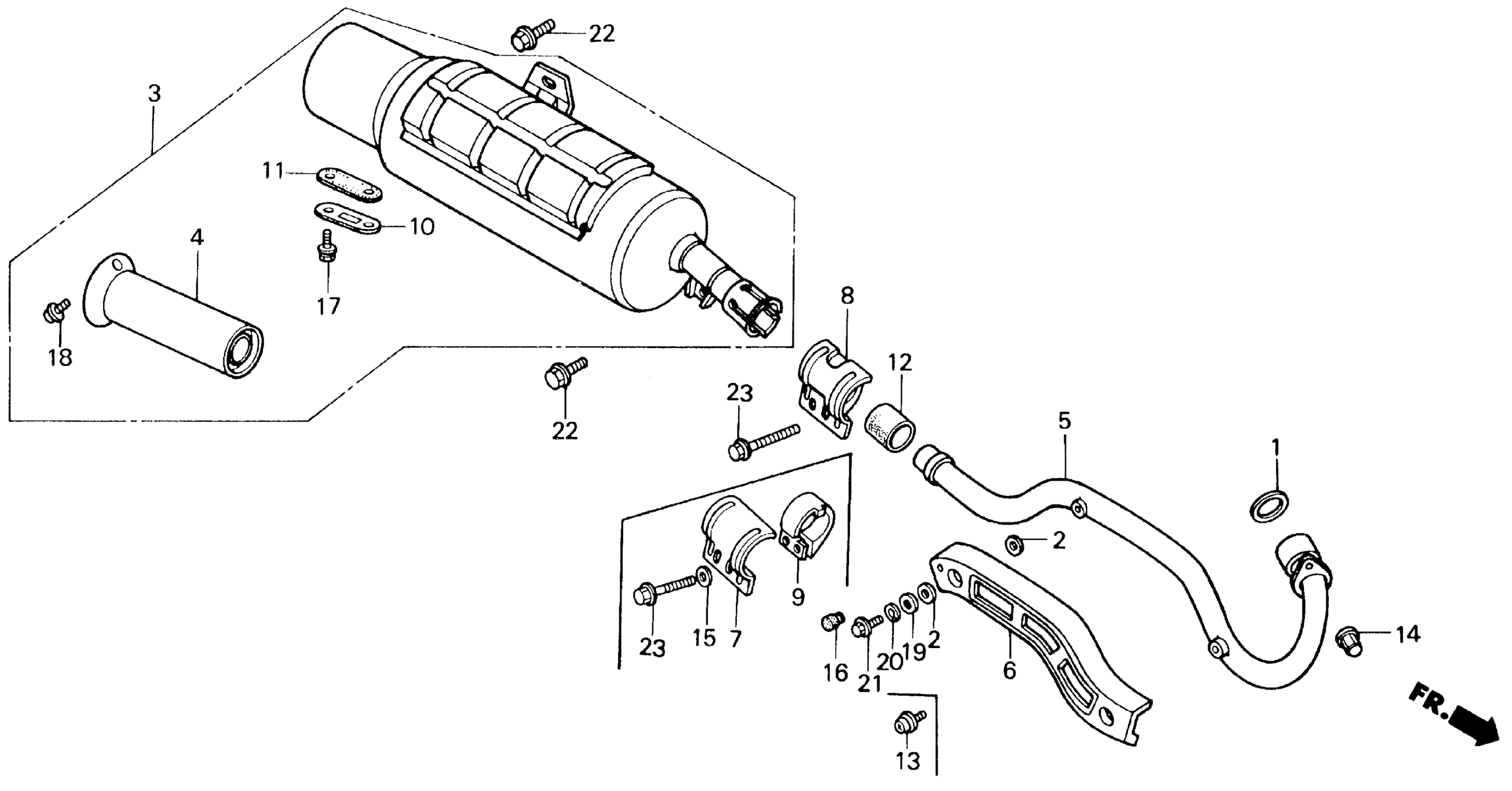

Honda TRX200SXA (88) FOURTRAX 200SX, JPN, VIN# JH3TE030-JK200003 EXHAUST MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-MN5-650

$3.52

1

GASKET, EX. PIPE This part replaces 18291-216-000.

18291-MN5-650

$3.52

2

GASKET, PROTECTOR This part replaces 18292-KF9-900.

18292-MM9-740

$2.81

2

GASKET, PROTECTOR

18292-MM9-740

$2.81

2

GASKET, PROTECTOR This part replaces 18292-415-000.

18292-MM9-740

$2.81

3

MUFFLER

18310-HB3-840

Unavailable

5

PIPE, EX.

18320-HB3-000

Unavailable

6

PROTECTOR, EX. PIPE

18321-HB3-010

Unavailable

8

BAND, MUFFLER

18370-HB3-000

Unavailable

10

LID, MUFFLER

18373-429-010

$8.22

11

GASKET, MUFFLER LID

18374-MN1-880

$3.90

11

GASKET, MUFFLER LID This part replaces 18374-429-000.

18374-MN1-880

$3.90

12

GASKET, MUFFLER

18391-958-306

$17.01

12

GASKET, MUFFLER This part replaces 18391-958-681.

18391-958-306

$17.01

14

NUT, SPECIAL (6MM)

90304-HB3-771

$5.64

16

RUBBER, EX. PIPE PROTECTOR CUSHION

90899-HB3-000

Unavailable

17

BOLT-WASHER (6X12)

93401-06012-07

Unavailable

17

BOLT-WASHER (6X12) This part replaces 93411-06012-07.

93401-06012-07

Unavailable

17

BOLT-WASHER (6X12) This part replaces 93481-06012-07.

93401-06012-07

Unavailable

19

WASHER, PLAIN (6MM)

94101-06200

$0.62

20

WASHER, SPRING (6MM)

94111-06000

$0.86

21

BOLT, FLANGE (6X10)

96001-06010-02

$1.41

22

BOLT, FLANGE (10X16)

96300-10016-08

$1.54

22

BOLT, FLANGE (10X16) This part replaces 96500-10016-08.

96300-10016-08

$1.54

23

BOLT, FLANGE (8X32)

96300-08032-08

$2.20

23

BOLT, FLANGE (8X32) This part replaces 96500-08032-08.

96300-08032-08

$2.20
