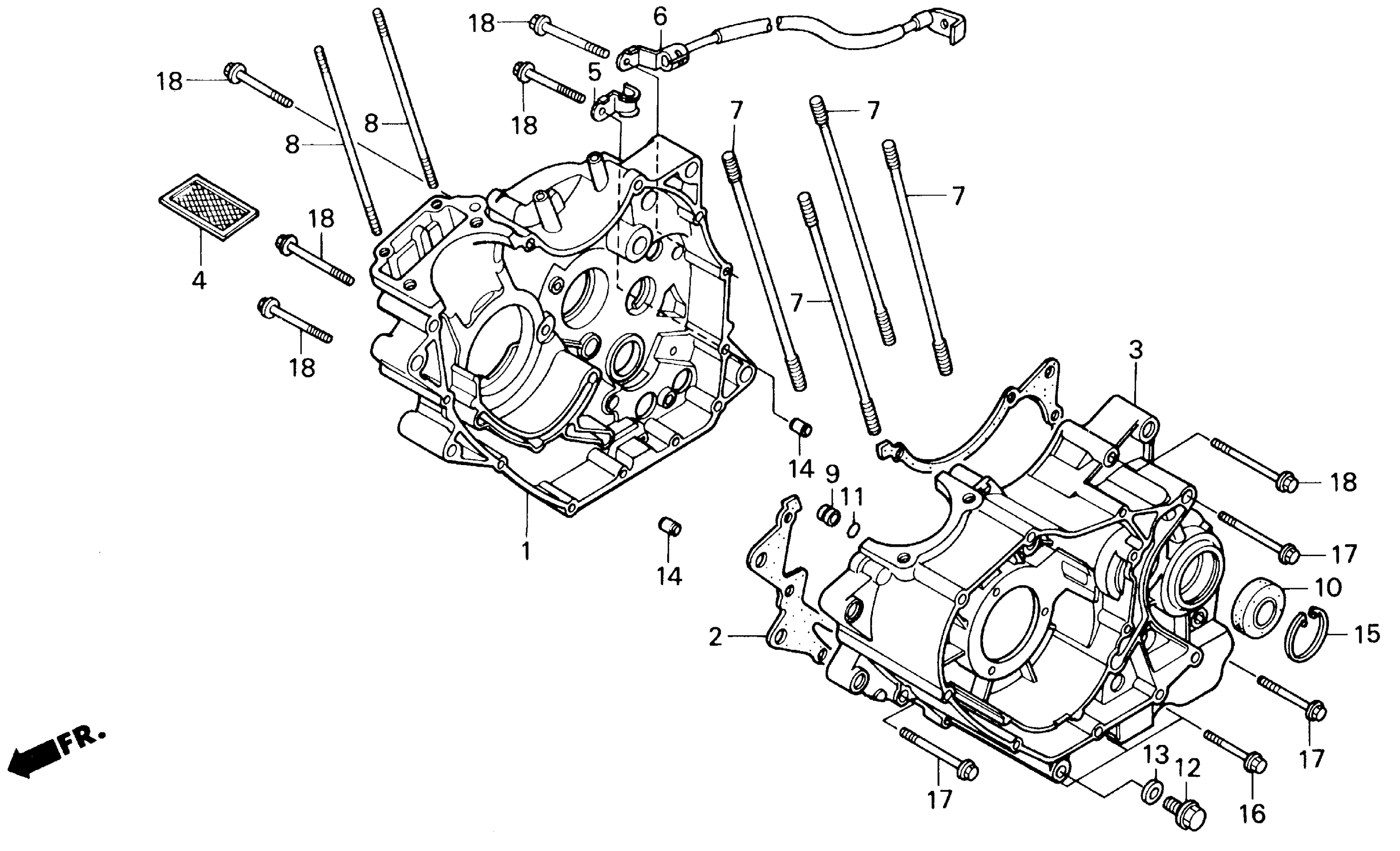

Honda TRX200SXA (88) FOURTRAX 200SX, JPN, VIN# JH3TE030-JK200003 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R.

11100-HB3-840

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-HB3-000.

11191-HF1-910

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-HB3-306.

11191-HF1-910

Unavailable

2

GASKET, CRANKCASE

11191-HF1-910

Unavailable

3

CRANKCASE, L.

11200-HB3-840

Unavailable

4

SCREEN, OIL FILTER

15421-KK0-000

$7.70

5

CLIP, OVERFLOW TUBE

16310-HB3-000

Unavailable

6

CABLE, BATTERY GROUND (NOT AVAILABLE)

32601-HB3-000

Unavailable

7

BOLT A, CYLINDER STUD

90031-HB3-000

Unavailable

8

BOLT, STUD (6X105)

90034-HB3-000

Unavailable

9

ORIFICE (1.2MM)

90805-HB7-000

Unavailable

10

OIL SEAL (22X36X6)

91206-HB3-003

$8.98

11

O-RING (7.5X1.5)

91302-HB3-004

$2.18

12

BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000.

90131-896-650

$3.98

12

BOLT, DRAIN PLUG

90131-896-650

$3.98

13

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

14

PIN A, DOWEL (8X14)

94301-08140

$2.25

15

CIRCLIP (INNER) (36MM)

94520-36000

$1.49

16

BOLT, FLANGE (6X40)

96300-06040-00

$2.00

17

BOLT, FLANGE (6X50)

96300-06050-00

Unavailable

18

BOLT, FLANGE (6X65)

96300-06065-00

$2.51
