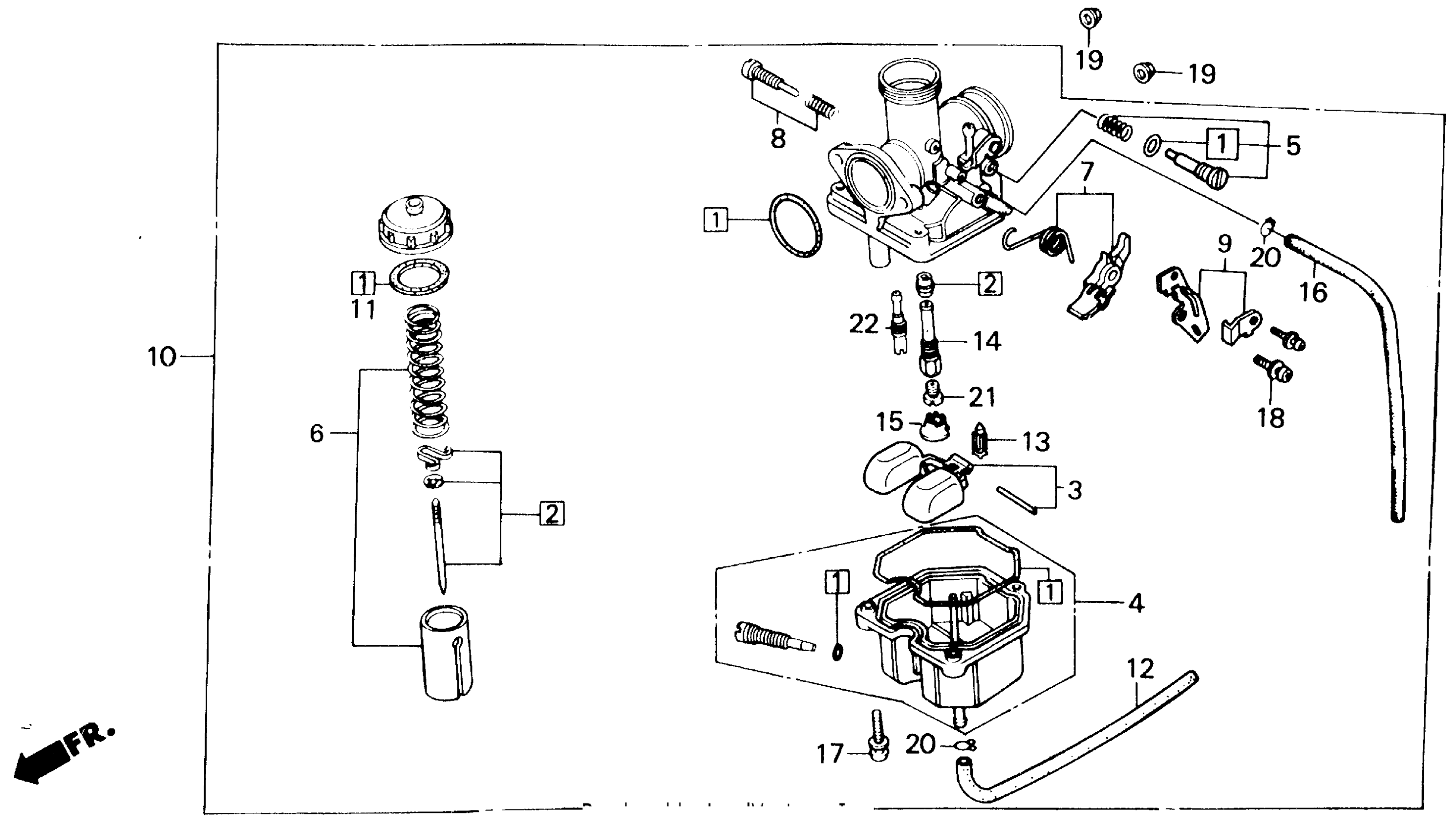

Honda TRX200SXA (88) FOURTRAX 200SX, JPN, VIN# JH3TE030-JK200003 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-364-770.

16010-439-305

$21.05

1

GASKET SET

16010-439-305

$21.05

2

NEEDLE SET, JET

16012-HB3-004

Unavailable

3

FLOAT SET

16013-439-921

$76.36

4

CHAMBER SET, FLOAT This part replaces 16015-HB3-004.

16015-KFC-910

Unavailable

5

SCREW SET A This part replaces 16016-HB3-004.

16016-HB7-305

Unavailable

6

VALVE SET, THROTTLE

16022-HB3-004

Unavailable

7

LEVER SET, CHOKE

16025-427-004

$29.95

8

SCREW SET B This part replaces 16028-402-004.

16028-KB1-D11

$5.98

9

PLATE SET, STAY

16035-427-004

Unavailable

10

CARBURETOR ASSY. (NOT AVAILABLE)

16100-HB3-771

Unavailable

11

GASKET, TOP

16110-KN4-651

$7.69

12

TUBE, FUEL This part replaces 16143-413-751.

16199-KG4-405

$9.49

13

VALVE, FLOAT

16155-397-971

$41.45

14

HOLDER, NEEDLE JET

16165-958-681

$29.60

15

HOLDER, JET

16168-382-014

$9.81

16

TUBE, AIR VENT This part replaces 16199-HB3-004.

16199-428-405

$3.10

16

TUBE, AIR VENT

16199-428-405

$3.10

17

SCREW-WASHER (4X16)

93892-04016-08

$1.49

18

SCREW-WASHER (5X12)

93892-05012-08

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM)

94001-06200-0S

$1.49

20

CLIP, TUBE (B6.5)

95002-02650

$1.49

21

JET, MAIN (#98)

99101-GHB-0980

$6.40

21

JET, MAIN (#98) This part replaces 99101-393-0980.

99101-GHB-0980

$6.40

22

JET, SLOW (#35)

99103-440-0350

$13.18
