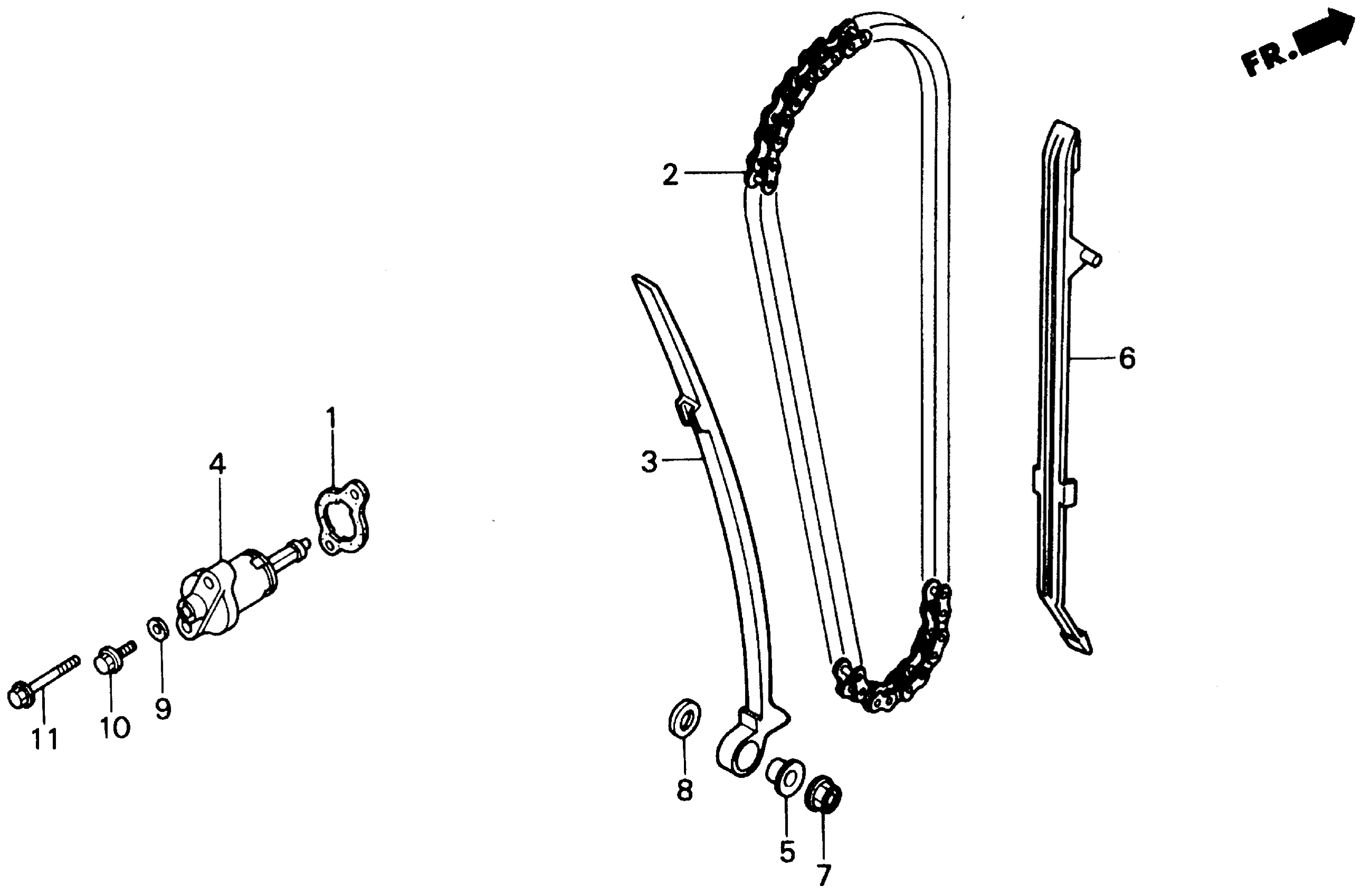

Honda TRX200SXA (88) FOURTRAX 200SX, JPN, VIN# JH3TE030-JK200003 CAM CHAIN Diagram

#

Description

Price

1

GASKET, TENSIONER HOLE This part replaces 12194-HB3-000.

12194-KW3-880

$2.33

1

GASKET, TENSIONER HOLE This part replaces 12194-HB3-306.

12194-KW3-880

$2.33

1

GASKET, TENSIONER HOLE

12194-KW3-880

$2.33

2

CHAIN, CAM (100L) (DAIDO)

14401-958-003

$84.25

3

TENSIONER, CAM CHAIN

14510-HB3-000

Unavailable

4

LIFTER, TENSIONER

14520-HB3-003

Unavailable

5

COLLAR, TENSIONER

14521-HB3-000

Unavailable

6

GUIDE, CAM CHAIN

14610-HB3-000

Unavailable

7

NUT, U (6MM)

90301-473-003

$4.07

8

WASHER (6.1MM)

90435-HB3-000

$2.92

9

WASHER, SEALING (6MM)

90442-397-000

$2.28

10

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

10

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

11

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

11

BOLT, FLANGE (6X25)

95701-06025-00

$1.80
