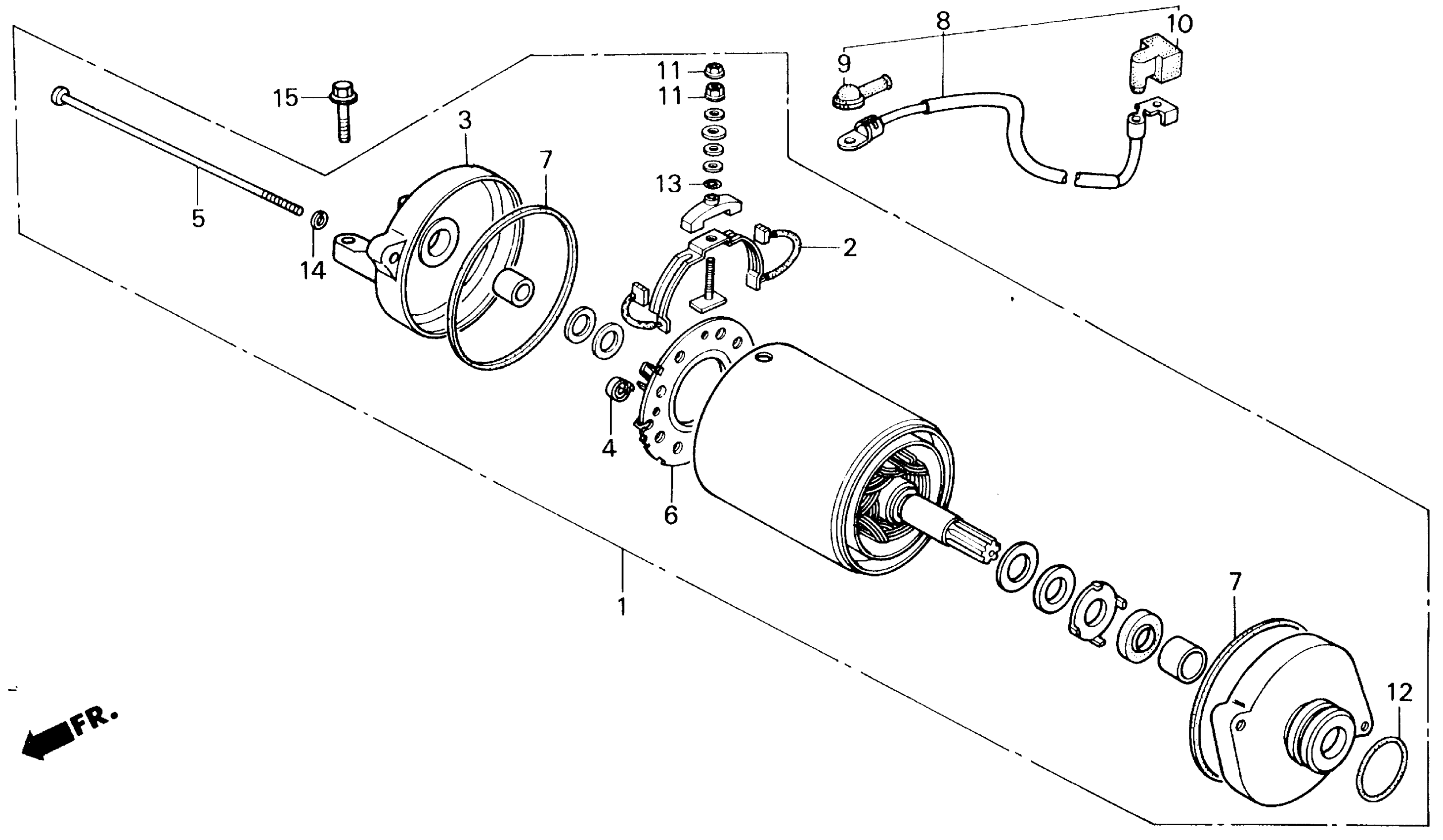

Honda TRX200SXA (87) FOURTRAX 200SX, JPN, VIN# JH3TE030-HK100004 TO JH3TE030-HK109673 STARTING MOTOR Diagram

#

Description
Price

1

STARTER MOTOR ASSY. | Use up to Engine SN 5100205 This part replaces 31200-HB3-003.

31200-HB3-405

Unavailable

1

STARTER MOTOR ASSY. | Use from Engine SN 5100206 This part replaces 31200-HB3-013.

31200-HB3-405

Unavailable

2

TERMINAL SET, BRUSH | Use up to Engine SN 5100205 This part replaces 31201-KK6-008.

31201-KM3-000

Unavailable

2

TERMINAL SET, BRUSH | Use up to Engine SN 5100205

31201-KM3-000

Unavailable

2

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) | Use from Engine SN 5100206

31201-KG7-000

$31.18

4

SPRING, CARBON BRUSH

31204-MA6-000

$5.72

5

BOLT, SETTING This part replaces 31205-KJ9-000.

31205-MN4-008

$5.80

5

BOLT, SETTING

31205-MN4-008

$5.80

6

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) | Use up to Engine SN 5100205 This part replaces 31206-KK6-008.

31206-MM5-008

$19.33

6

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)

31206-MM5-008

$19.33

6

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) | Use from Engine SN 5100206 This part replaces 31206-HA0-771.

31206-MM5-008

$19.33

7

RING, SEAL

31207-179-711

$4.22

8

CABLE, STARTER MOTOR

32402-HB3-000

Unavailable

9

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

9

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

10

COVER B, MAGNETIC SWITCH

32416-HB3-000

Unavailable

11

NUT-WASHER (6MM)

90071-MB0-000

$1.97

12

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

12

O-RING (24.4X3.1)

91312-MG7-003

$6.34

13

O-RING

91320-MB0-000

$2.43

14

WASHER, SPRING (5MM)

94111-05000

$1.49

15

BOLT, FLANGE (6X25) This part replaces 95800-06025-00.

95801-06025-00

$1.49

15

BOLT, FLANGE (6X25)

95801-06025-00

$1.49
