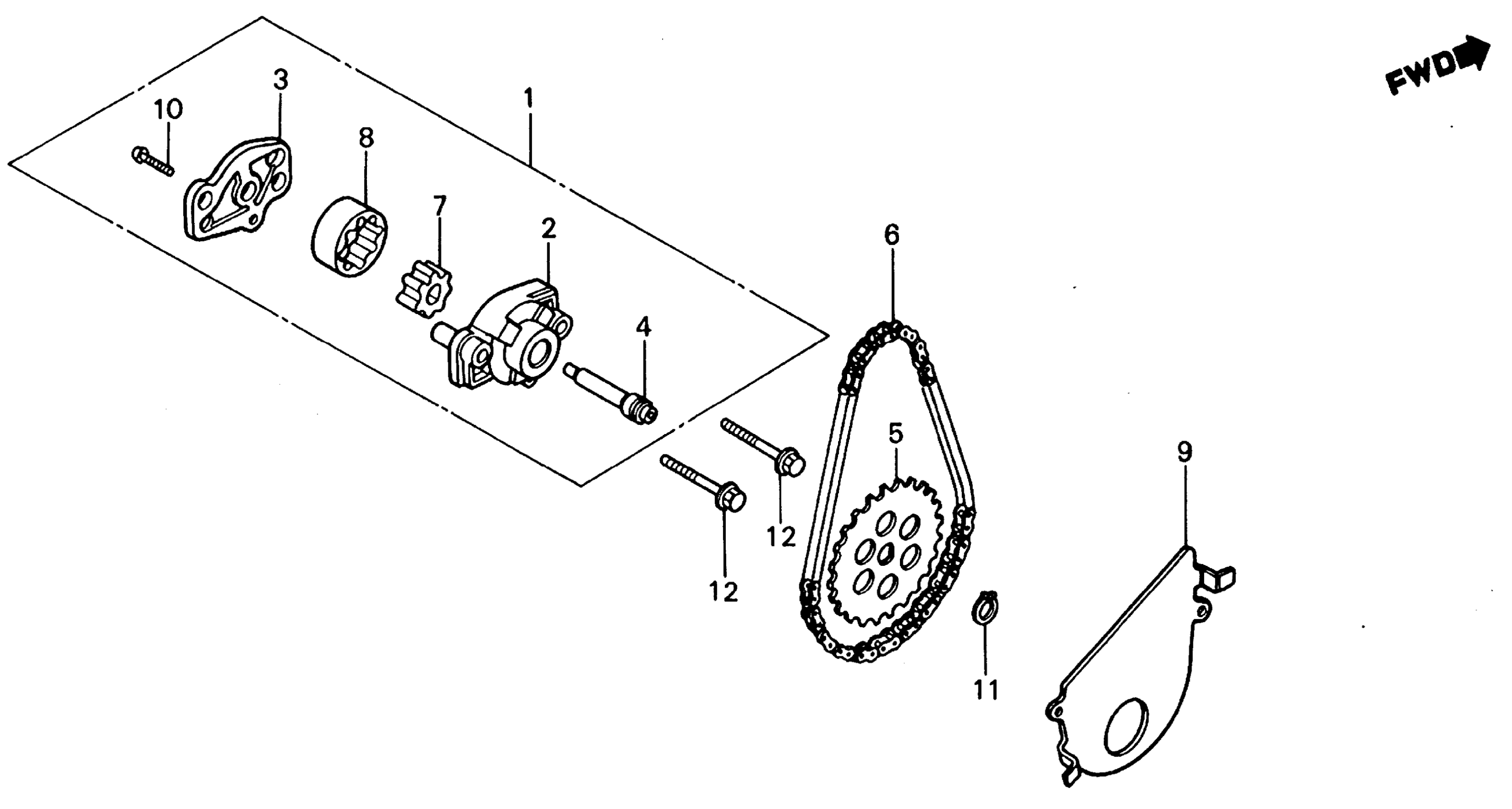

Honda TRX200SXA (87) FOURTRAX 200SX, JPN, VIN# JH3TE030-HK100004 TO JH3TE030-HK109673 OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY., OIL

15100-HB3-840

Unavailable

1

PUMP ASSY., OIL This part replaces 15100-HB5-000.

15100-HB3-840

Unavailable

2

BODY, OIL PUMP (NOT AVAILABLE)

15101-HB5-000

Unavailable

3

PLATE, OIL PUMP

15116-HB5-000

Unavailable

4

SHAFT, OIL PUMP

15132-HB3-000

Unavailable

5

SPROCKET, OIL PUMP DRIVEN (28T) This part replaces 15133-HB3-000.

15133-KT2-000

Unavailable

5

SPROCKET, OIL PUMP DRIVEN (28T)

15133-KT2-000

Unavailable

6

CHAIN, OIL PUMP

15141-HB3-000

Unavailable

7

ROTOR SET, OIL PUMP This part replaces 15331-958-000.

15021-958-000

$35.25

8

ROTOR SET, OIL PUMP This part replaces 15332-958-000.

15021-958-000

$35.25

9

SEPARATOR, OIL

15711-HB3-000

Unavailable

10

SCREW, PAN (3X12)

93500-03012-0A

$1.49

10

SCREW, PAN (3X12) This part replaces 93500-03012-1A.

93500-03012-0A

$1.49

11

CIRCLIP (OUTER) (10MM)

94510-10000

$1.49

12

BOLT, FLANGE (6X35)

96300-06035-00

Unavailable
