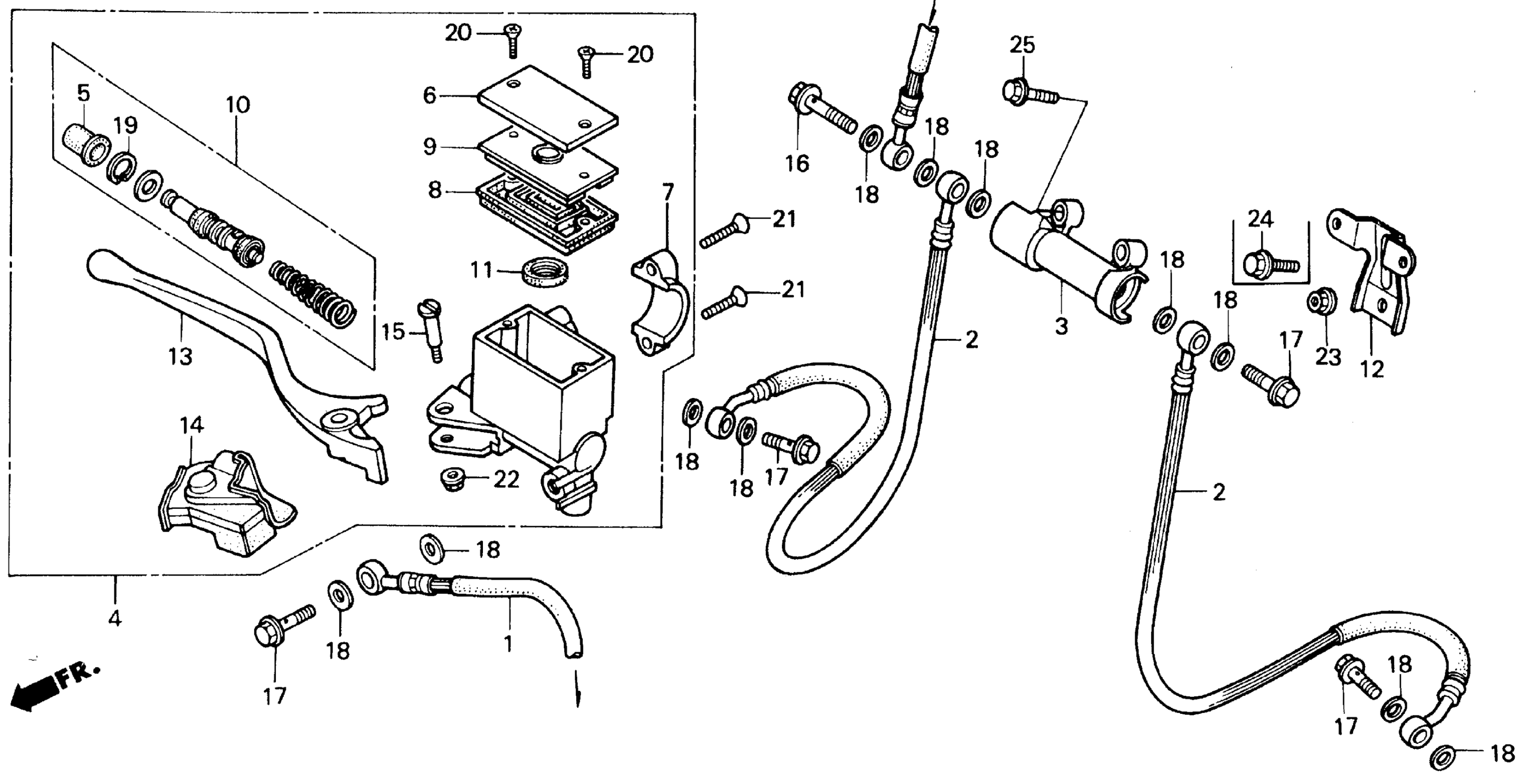

Honda TRX200SXA (87) FOURTRAX 200SX, JPN, VIN# JH3TE030-HK100004 TO JH3TE030-HK109673 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

HOSE, FR. BRAKE FIRST (NOT AVAILABLE)

45123-HB3-003

Unavailable

2

HOSE, FR. BRAKE SECOND (NOT AVAILABLE)

45126-HB3-003

Unavailable

3

JOINT, TWO-WAY (NISSIN) (NOT AVAILABLE)

45127-MA1-003

Unavailable

4

MASTER CYLINDER ASSY., FR. BRAKE (NOT AVAILABLE)

45500-HB3-006

Unavailable

5

BOOT

45504-410-003

$12.16

6

CAP, MASTER CYLINDER

45513-HA2-006

$27.55

7

HOLDER, MASTER CYLINDER

45517-961-000

Unavailable

8

DIAPHRAGM

45520-MG7-006

$10.61

9

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

10

MASTER CYLINDER SET

45530-471-831

$40.86

11

SEPARATOR

46666-961-013

$8.68

12

STAY, TWO-WAY JOINT

50141-HB3-000

Unavailable

13

LEVER, R. HANDLEBAR

53175-HC4-010

$22.79

13

LEVER, R. HANDLEBAR This part replaces 53175-961-010.

53175-HC4-010

$22.79

14

COVER, R. HANDLE LEVER (NOT AVAILABLE)

53176-HA2-006

Unavailable

15

BOLT, HANDLEBAR PIVOT

90114-166-006

$6.51

16

BOLT, OIL (10X34) This part replaces 90145-MG5-670.

90145-MR8-014

$7.28

16

BOLT, OIL (10X34) This part replaces 90145-MR8-004.

90145-MR8-014

$7.28

17

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

17

BOLT, OIL (10X22)

90145-KM3-751

$11.02

18

WASHER, OIL BOLT

90545-300-000

$3.99

19

CIRCLIP

90651-MA5-671

$2.66

20

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

20

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

21

SCREW, OVAL (6X25)

93700-06025-0G

Unavailable

21

SCREW, OVAL (6X25) This part replaces 93700-06025-07.

93700-06025-0G

Unavailable

22

NUT, FLANGE (6MM)

94050-06000

$1.49

23

NUT, FLANGE (6MM)

94050-06080

$1.49

25

BOLT, FLANGE (6X16)

96300-06016-08

$1.90

25

BOLT, FLANGE (6X16) This part replaces 96500-06016-08.

96300-06016-08

$1.90
