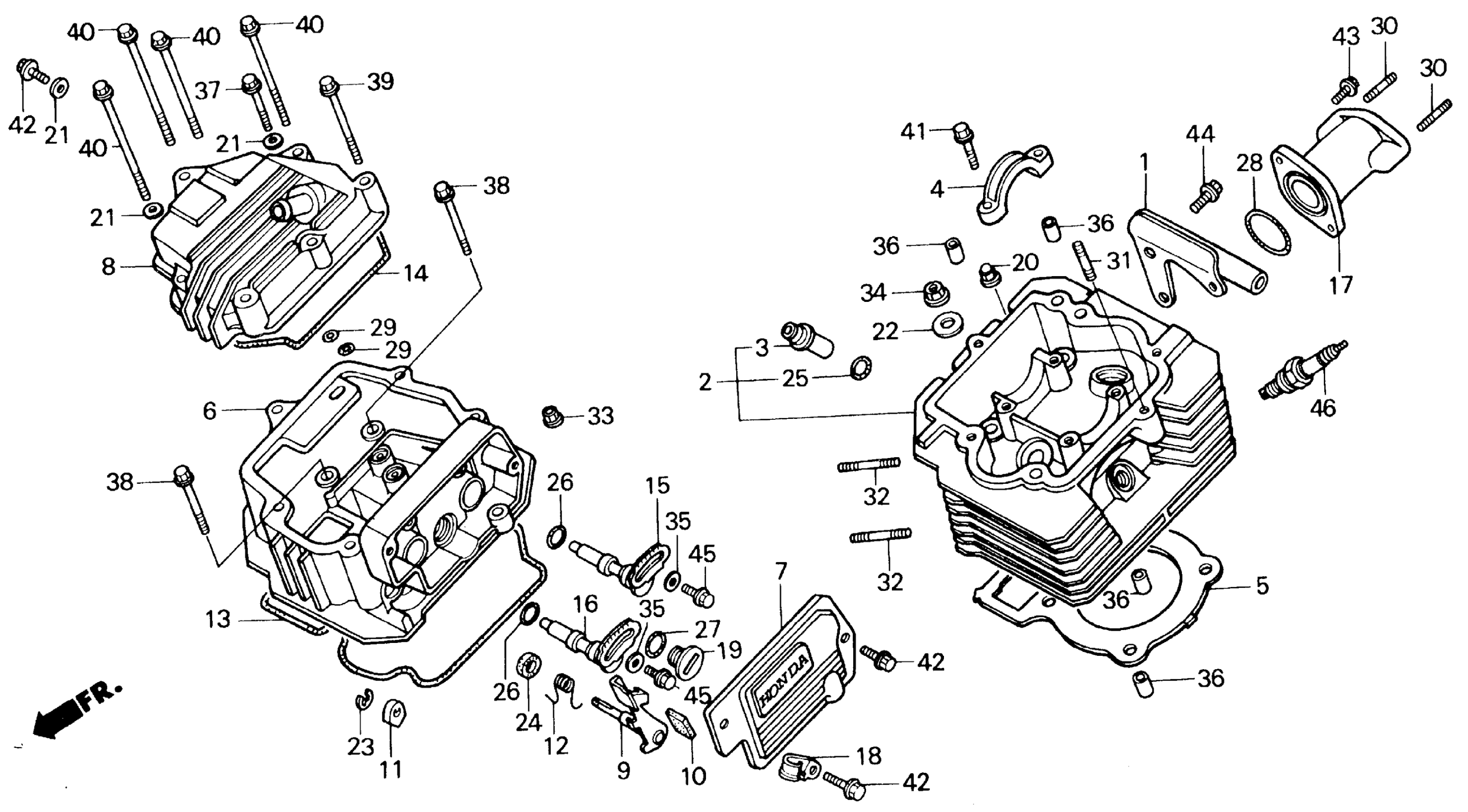

Honda TRX200SXA (87) FOURTRAX 200SX, JPN, VIN# JH3TE030-HK100004 TO JH3TE030-HK109673 CYLINDER HEAD Diagram

#

Description
Price

1

PLATE, CYLINDER HEAD HANGER

11851-HB3-000

Unavailable

2

CYLINDER HEAD (NOT AVAILABLE)

12200-HB3-000

Unavailable

3

GUIDE, VALVE

12204-HB3-300

Unavailable

3

GUIDE, VALVE This part replaces 12204-HB3-305.

12204-HB3-300

Unavailable

4

HOLDER, CAM

12211-HB3-000

Unavailable

5

GASKET, CYLINDER HEAD

12251-HB3-003

$20.70

5

GASKET, CYLINDER HEAD (OS 0.75-1.00) | (Optional).

12252-HB3-305

Unavailable

6

COVER, CYLINDER (NOT AVAILABLE)

12310-HB3-000

Unavailable

7

COVER, TAPPET ADJUSTING HOLE (NOT AVAILABLE)

12311-HB3-000

Unavailable

8

COVER, BREATHER (NOT AVAILABLE)

12315-HB3-000

Unavailable

9

LIFTER, VALVE

12320-HB3-000

Unavailable

10

COVER, LEVER

12323-HB3-000

Unavailable

11

CAM, VALVE LIFTER

12325-HB3-003

Unavailable

12

SPRING, CAM DECOMPRESSION

12352-HB3-000

Unavailable

13

GASKET, HEAD COVER (NOT AVAILABLE) This part replaces 12391-HB3-000.

12391-HB3-004

$8.76

13

GASKET, HEAD COVER (NOT AVAILABLE) This part replaces 12391-HB3-003.

12391-HB3-004

$8.76

13

GASKET, HEAD COVER

12391-HB3-004

$8.76

13

GASKET, HEAD COVER (NOT AVAILABLE) This part replaces 12391-HB3-013.

12391-HB3-004

$8.76

14

GASKET, BREATHER COVER

12396-HB3-003

Unavailable

15

SHAFT, ROCKER ARM IN.

14450-HB3-010

Unavailable

16

SHAFT, ROCKER ARM EX.

14460-HB3-010

Unavailable

17

INSULATOR, CARBURETOR

16210-HB3-000

Unavailable

18

CLIP, IGNITION WIRE

32906-HB3-000

Unavailable

19

CAP (14MM) This part replaces 90084-HB5-000.

90084-MN8-010

$12.82

19

CAP (14MM) This part replaces 90084-HB3-000.

90084-MN8-010

$12.82

19

CAP (14MM)

90084-MN8-010

$12.82

20

NUT, FLANGE CAP (6MM)

90301-MA6-003

$2.33

21

WASHER, SEALING (6MM)

90441-706-000

$1.49

22

WASHER (8MM)

90465-MC4-000

$2.51

23

CIRCLIP (OUTER) (6MM) (NOT AVAILABLE)

90602-KA4-741

$2.89

24

OIL SEAL (8X15X6)

91203-HB3-004

Unavailable

25

O-RING (10X1.6)

91301-200-000

$3.01

26

O-RING (9.8X1.9) This part replaces 91301-812-000.

91305-PE2-003

$2.45

26

O-RING (9.8X1.9) This part replaces 91302-PJ4-000.

91305-PE2-003

$2.45

26

O-RING (9.8X1.9) This part replaces 91302-PJ4-004.

91305-PE2-003

$2.45

26

O-RING (9.8X1.9) This part replaces 91303-HB3-003.

91305-PE2-003

$2.45

26

O-RING (9.8X1.9) This part replaces 91303-729-720.

91305-PE2-003

$2.45

26

O-RING (9.8X1.9) This part replaces 91303-729-721.

91305-PE2-003

$2.45

26

O-RING (9.8X1.9)

91305-PE2-003

$2.45

27

O-RING (13.8X2.5)

91303-377-000

$3.42

28

O-RING (33.5X3.0)

91304-HB3-003

$7.70

29

O-RING (4.8X1.9) (NOK)

91313-MA6-005

$2.61

30

BOLT, STUD (6X28)

92712-06028-0B

$1.49

31

BOLT 2, STUD (6X20)

92900-06020-0B

$1.72

32

BOLT 2, STUD (6X20)

92900-06020-3B

Unavailable

33

NUT, FLANGE (6MM)

94050-06000

$1.49

34

NUT, FLANGE (8MM)

94050-08000

$1.49

35

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

35

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

35

WASHER, PLAIN (6MM)

94101-06800

$1.49

36

PIN A, DOWEL (10X14)

94301-10140

$2.28

37

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

37

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

38

BOLT, FLANGE (6X55) This part replaces 95700-06055-00.

95701-06055-00

$2.16

38

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

39

BOLT, FLANGE (6X70) This part replaces 95700-06070-00.

95701-06070-00

$2.19

39

BOLT, FLANGE (6X70)

95701-06070-00

$2.19

40

BOLT, FLANGE (6X80) This part replaces 95700-06080-00.

95701-06080-00

$2.34

40

BOLT, FLANGE (6X80)

95701-06080-00

$2.34

41

BOLT, FLANGE (6X22)

95701-06022-08

$1.72

41

BOLT, FLANGE (6X22) This part replaces 95800-06022-08.

95701-06022-08

$1.72

41

BOLT, FLANGE (6X22) This part replaces 95801-06022-08.

95701-06022-08

$1.72

42

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

42

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

43

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.80

43

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

44

BOLT, FLANGE (8X22)

96300-08022-00

$2.16

44

BOLT, FLANGE (8X22) This part replaces 96400-08022-00.

96300-08022-00

$2.16

45

BOLT, FLANGE (6X14)

96300-06014-00

$1.49

45

BOLT, FLANGE (6X14) This part replaces 96500-06014-00.

96300-06014-00

$1.49

46

SPARK PLUG (DR8ES-L) (NGK) This part replaces 98069-38716.

98069-38719

$2.62

46

SPARK PLUG (DR8ES-L) (NGK)

98069-38719

$2.62

46

SPARK PLUG (X24ESR-U) (DENSO)

98069-58726

$2.54
