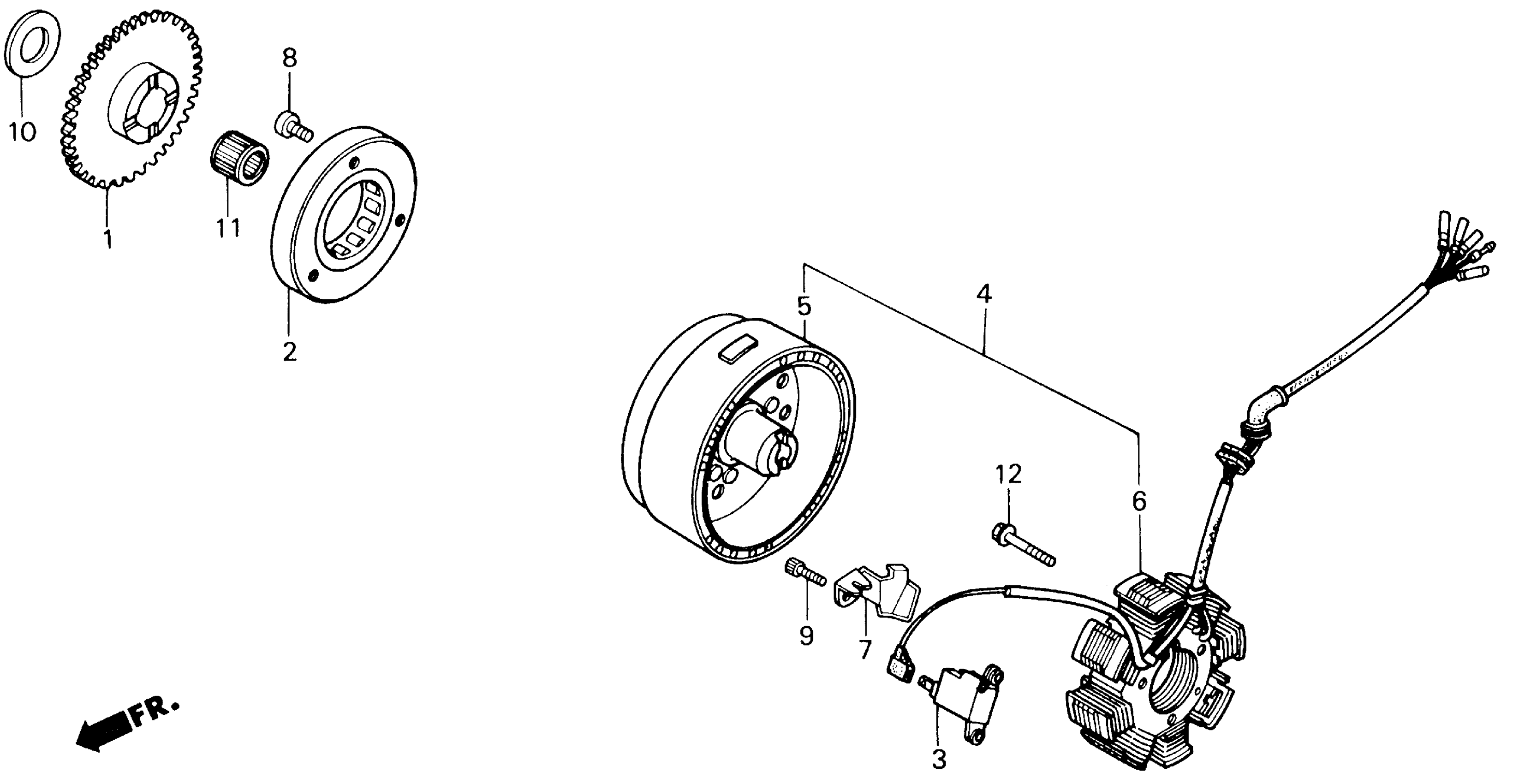

Honda TRX200SXA (87) FOURTRAX 200SX, JPN, VIN# JH3TE030-HK100004 TO JH3TE030-HK109673 ALTERNATOR Diagram

GEAR, STARTING DRIVEN (48T)

28110-HB3-000

Unavailable

CLUTCH, STARTER (OUTER)

28120-HB3-010

Unavailable

GENERATOR ASSY., PULSE (TEC) This part replaces 30300-HA0-013.

30300-HA0-033

$36.58

GENERATOR ASSY., PULSE (TEC) This part replaces 30300-HA0-023.

30300-HA0-033

$36.58

GENERATOR, PULSE (TOYO)

30300-HA0-033

$36.58

ALTERNATOR ASSY., FLYWHEEL TYPE This part replaces 31100-HB3-004.

31100-HB3-014

Unavailable

ALTERNATOR ASSY., FLYWHEEL TYPE

31100-HB3-014

Unavailable

FLYWHEEL

31110-HB3-004

Unavailable

STATOR (NOT AVAILABLE) This part replaces 31120-HB3-004.

31120-HB3-014

Unavailable

CLAMP, PULSER WIRE

32111-HB3-000

Unavailable

BOLT, SOCKET (8X18)

90010-KM1-000

$4.78

BOLT, SOCKET (5X14)

90089-HB3-000

$3.01

WASHER, THRUST (26MM) (NOT AVAILABLE)

90407-415-000

$5.13

BEARING, NEEDLE (22X27X20) This part replaces 91007-HB3-003.

91007-HB3-013

$21.93

BEARING, NEEDLE (22X27X20) This part replaces 91007-HB3-004.

91007-HB3-013

$21.93

BEARING, NEEDLE (22X27X20)

91007-HB3-013

$21.93

BEARING, NEEDLE (22X27X20) This part replaces 91007-HB3-014.

91007-HB3-013

$21.93

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

Unavailable

BOLT, FLANGE (6X28)

96001-06028-00

Unavailable
