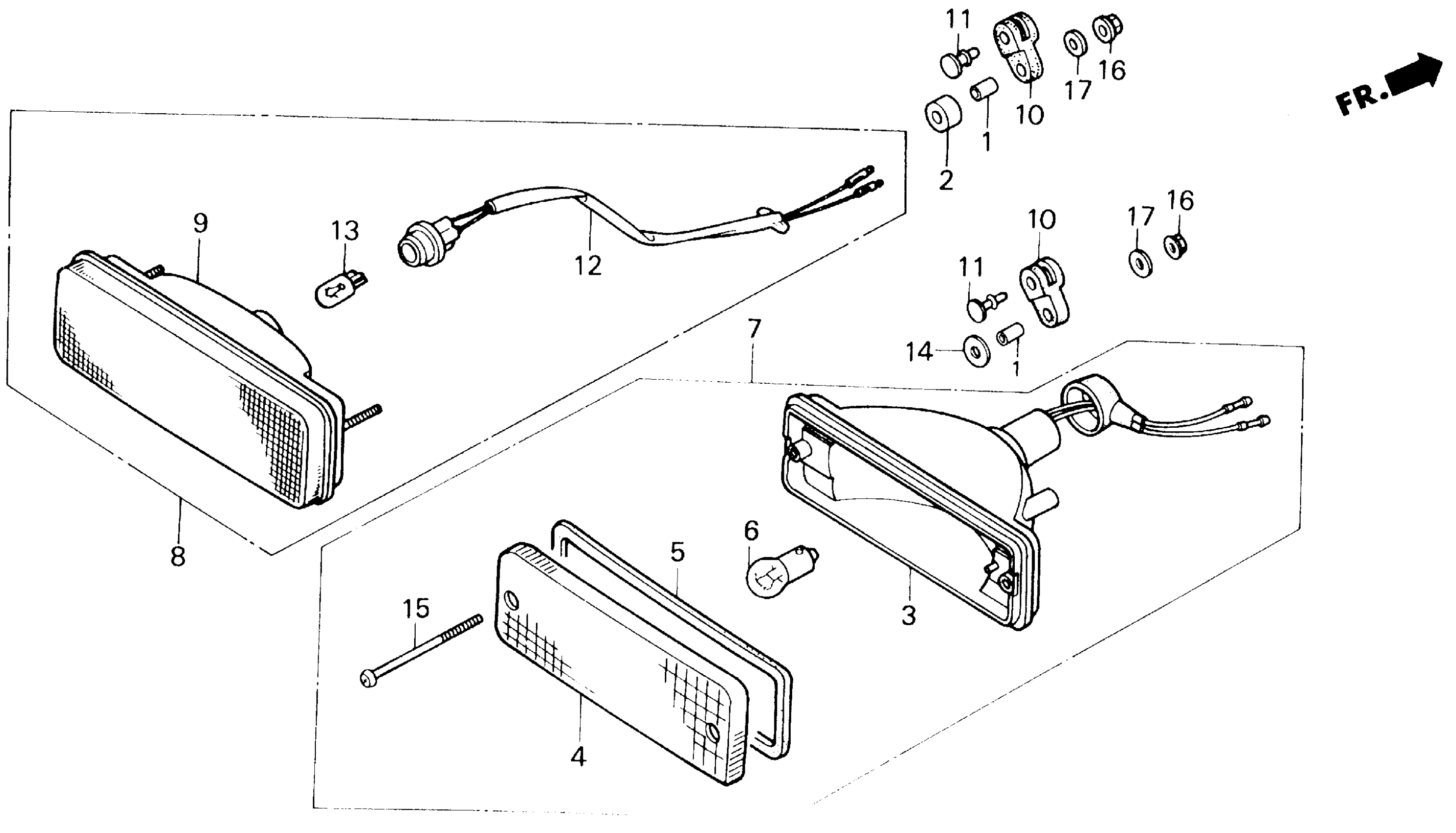

Honda TRX200SXA (86) FOURTRAX 200SX, JPN, VIN# JH3TE030-GK000030 TO JH3TE030-GK064061 TAILLIGHT 86 Diagram

COLLAR, TAILLIGHT MOUNTING (NOT AVAILABLE)

17201-HB3-000

Unavailable

COLLAR, TAILLIGHT (NOT AVAILABLE) | Use from Frame SN GK054378

17207-VM6-000

Unavailable

HOUSING (NOT AVAILABLE) | Use up to Frame SN GK054377

33300-HB3-000

Unavailable

LENS, TAILLIGHT | Use up to Frame SN GK054377

33302-958-013

$19.40

GASKET, TAILLIGHT LENS | Use up to Frame SN GK054377

33303-958-003

Unavailable

BULB (12V5W) (STANLEY) (NOT AVAILABLE) | Use up to Frame SN GK054377 This part replaces 33310-594-601.

34910-504-003

Unavailable

TAILLIGHT ASSY. (NOT AVAILABLE) | Use up to Frame SN GK054377

33700-HB3-000

Unavailable

TAILLIGHT ASSY. (NOT AVAILABLE) | Use from Frame SN GK054378

33700-HB6-003

Unavailable

LENS, TAILLIGHT (NOT AVAILABLE) | Use from Frame SN GK054378

33710-HB6-003

Unavailable

RUBBER, TAILLIGHT SETTING

33715-VM6-000

$6.21

PIN, TAILLIGHT SETTING

33716-964-000

$3.81

SOCKET, TAILLIGHT (NOT AVAILABLE) | Use from Frame SN GK054378 This part replaces 33720-HB6-003.

33705-HA6-003

Unavailable

BULB (12V5W) (STANLEY) | Use from Frame SN GK054378

34351-657-921

$3.41

WASHER (4.5X18) | Use up to Frame SN GK054377

90502-KK9-910

$3.10

SCREW, PAN (4X45) | Use up to Frame SN GK054377

93500-04045-0A

Unavailable

NUT, FLANGE (4MM)

94050-04080

$1.49

WASHER, PLAIN (4MM)

94103-04800

$1.49
