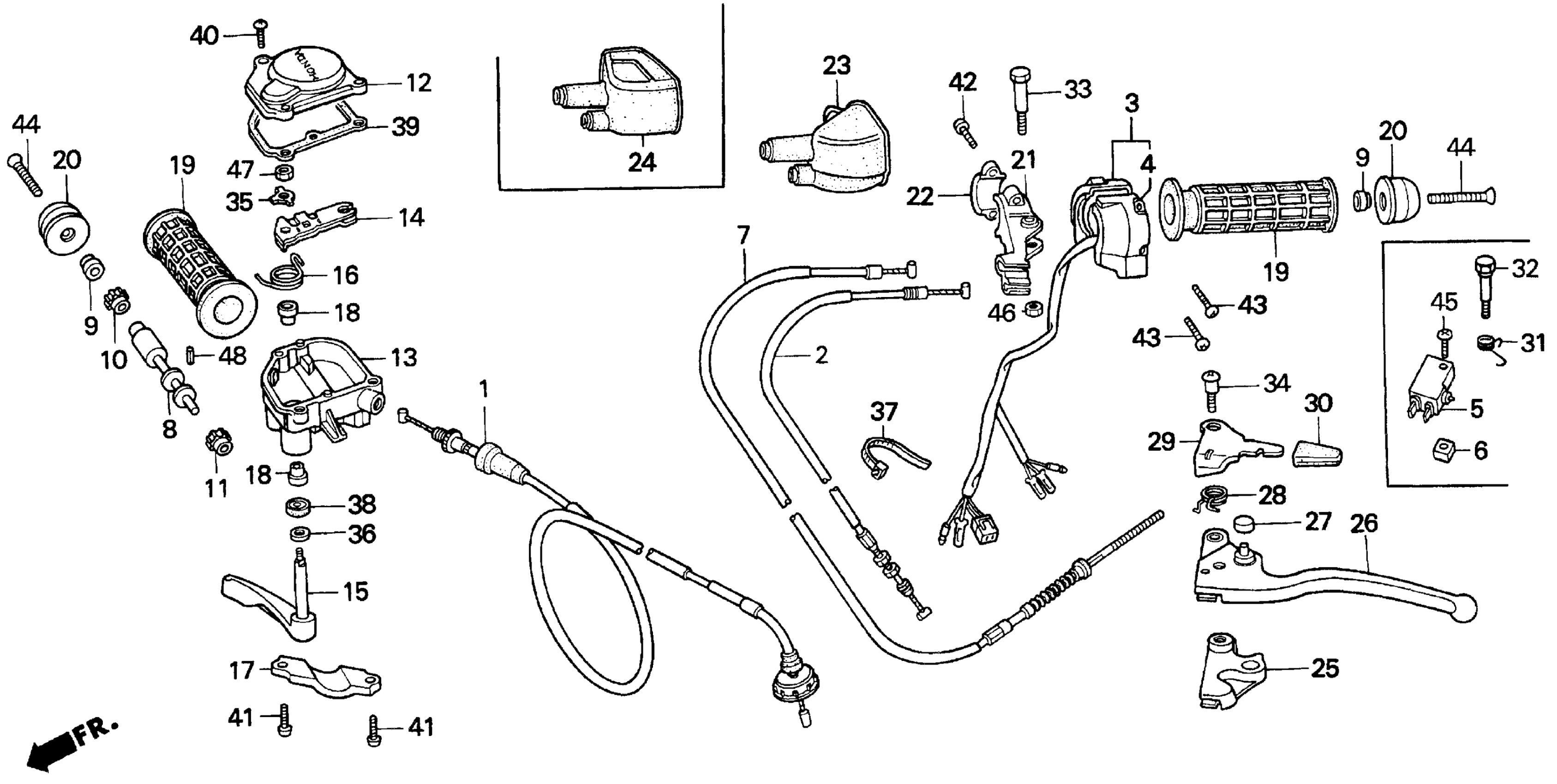

Honda TRX200DAN (97) FOURTRAX 200 TYPE II, JPN, VIN# 1HFTE173-VA700001 HANDLE SWITCH Diagram

#

Description
Price

1

CABLE SET, THROTTLE

17920-HF1-305

Unavailable

2

CABLE, REVERSE ASSIST (NOT AVAILABLE)

22880-HF1-670

Unavailable

3

SWITCH ASSY., LIGHTING ENGINE STARTER (NOT AVAILABLE)

35200-HF1-670

Unavailable

4

COVER, SWITCH

35201-HB7-671

$13.47

5

SWITCH ASSY., FR. STOP (COO)

35340-HR0-305

$18.57

5

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

$18.57

6

COLLAR, STOP SWITCH

35345-HF1-830

$6.01

7

CABLE, HAND BRAKE (NOT AVAILABLE)

43460-HF1-631

Unavailable

8

WEIGHT B, HANDLEBAR (NOT AVAILABLE)

53101-MC7-000

Unavailable

9

COLLAR, HANDLE WEIGHT (NOT AVAILABLE)

53102-HB3-000

Unavailable

10

RUBBER B, HANDLE WEIGHT

53107-KM9-000

$3.90

11

RUBBER, HANDLE WEIGHT

53107-121-730

Unavailable

12

COVER, THROTTLE CASE

53141-HC3-000

Unavailable

13

CASE, THROTTLE LEVER

53142-HC0-770

$41.34

14

ARM, THROTTLE

53144-HA0-010

$7.72

15

LEVER, THROTTLE This part replaces 53145-HA0-305.

53145-HA0-770

$24.05

15

LEVER, THROTTLE

53145-HA0-770

$24.05

16

SPRING, THROTTLE RETURN

53146-HA0-000

$4.53

17

HOLDER, THROTTLE CASE

53147-HM5-850

$3.71

18

BUSH, THROTTLE PIVOT

53148-HA0-000

$8.00

19

GRIP, HANDLE

53165-958-010

$13.38

20

GUARD, HANDLE END

53167-HB3-000

Unavailable

21

BRACKET, HANDLE LEVER

53172-HM7-000

$35.57

22

HOLDER, LEVER BRACKET

53173-376-000

$10.95

24

COVER, L. HANDLE

53177-HF1-830

Unavailable

25

ARM, REVERSE ASSISTANT

53179-HA6-000

$15.17

26

LEVER, RR. BRAKE

53180-HA8-770

$29.38

27

CAP, REVERSE PIN

53187-VM6-000

$3.89

28

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.47

29

LEVER, PARKING BRAKE LOCK

53192-HA8-771

$11.52

30

CAP, PARKING LEVER

53193-HA0-770

$6.16

31

SPRING, LEVER RETURN

53193-HF1-830

$6.28

32

BOLT, HANDLE LEVER PIVOT

90114-HF1-830

Unavailable

34

SCREW, PARKING LEVER PIVOT

90115-HA6-000

$4.08

35

WASHER, LOCK (6MM)

90501-HA0-000

$2.92

36

WASHER (9X20)

90504-HA0-000

$2.28

37

BAND, WIRE HARNESS

90651-MA6-720

$3.73

38

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.92

38

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.92

39

GASKET, THROTTLE CASE

91532-HA0-020

$6.16

40

SCREW, PAN (4X16)

93500-04016-0G

$1.49

41

SCREW, PAN (5X14)

93500-05014-0G

$3.67

42

SCREW, PAN (5X18)

93500-05018-0G

$1.49

43

SCREW, PAN (5X25)

93500-05025-0G

$1.49

44

SCREW, FLAT (6X40)

93600-06040-0G

$1.49

45

SCREW-WASHER (4X20)

93893-04020-07

$1.49

46

NUT, HEX. (6MM)

94001-06070-0S

$1.49

47

NUT, HEX. (6MM)

94002-06000-0S

$1.49

48

PIN, SPRING (4X22)

94305-40222

$1.83
