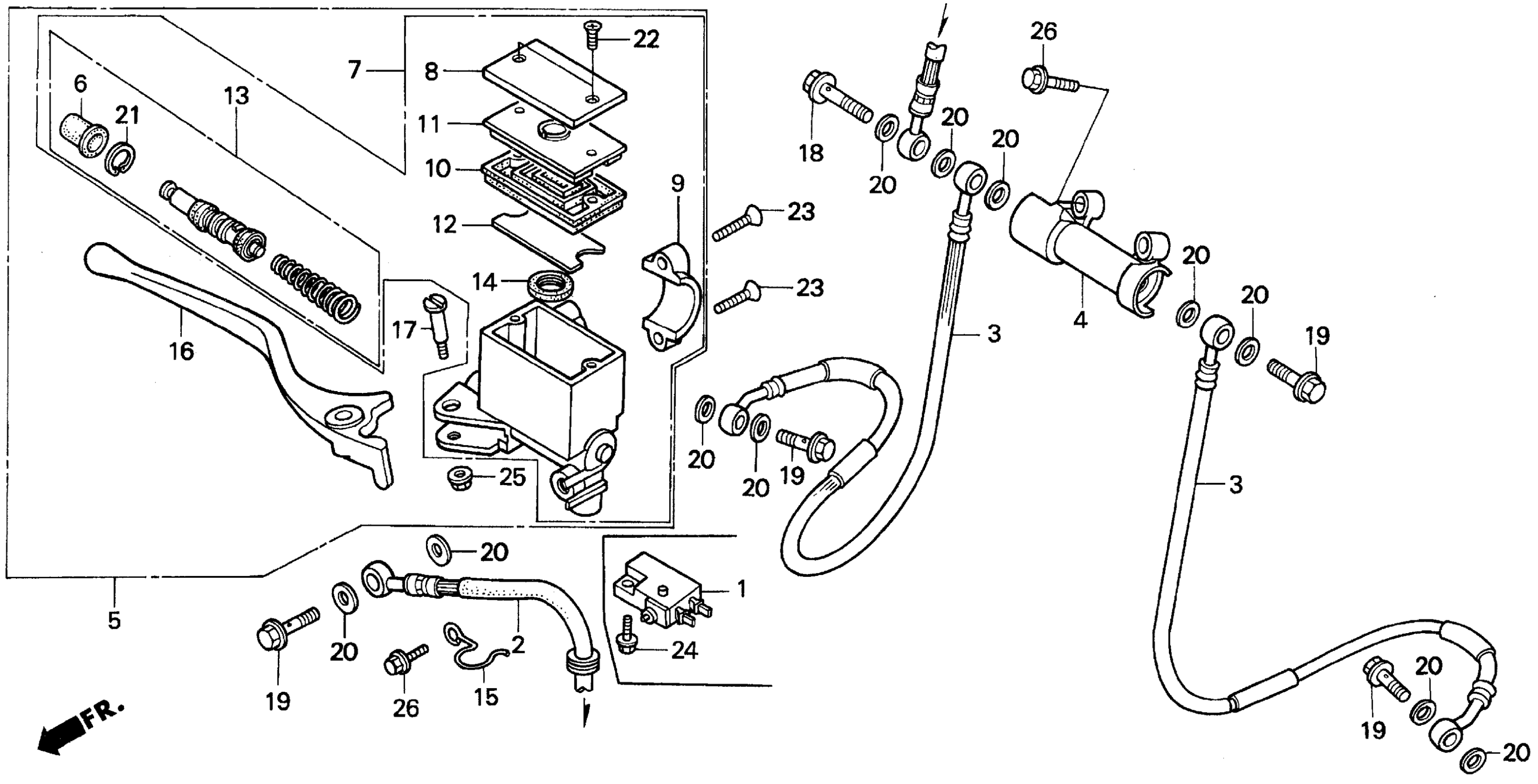

Honda TRX200DAN (96) FOURTRAX 200 TYPE II, USA, VIN# 1HFTE173-TA600001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP (COO)

35340-HR0-305

$15.99

1

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

$15.99

2

HOSE, FR. BRAKE (UPPER)

45123-HF1-961

Unavailable

3

HOSE, FR. BRAKE (LOWER)

45126-HF1-961

Unavailable

4

JOINT (TWO-WAY) (NISSIN)

45127-ML0-003

Unavailable

6

BOOT

45504-410-003

$11.17

7

MASTER CYLINDER SUB-ASSY., FR.

45510-HC4-305

$212.10

8

CAP, MASTER CYLINDER

45513-HA2-006

$25.29

9

HOLDER, MASTER CYLINDER

45517-166-006

$12.44

10

DIAPHRAGM

45520-MG7-006

$9.73

11

PLATE, DIAPHRAGM

45521-HA2-006

$9.96

12

FLOAT, FR. MASTER CYLINDER (NISSIN)

45523-HC4-841

Unavailable

13

MASTER CYLINDER SET

45530-471-831

Unavailable

14

SEPARATOR

46666-HB9-006

$8.64

15

CLAMP, BRAKE HOSE

51202-HF1-670

Unavailable

16

LEVER, R. HANDLEBAR

53175-HC4-010

$21.00

17

BOLT, HANDLE LEVER PIVOT

90114-166-006

$6.20

18

BOLT, OIL (10X34) This part replaces 90145-MR8-004.

90145-MR8-014

$6.72

18

BOLT, OIL (10X34)

90145-MR8-014

$6.72

19

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$6.99

19

BOLT, OIL (10X22)

90145-MS9-612

$6.99

20

WASHER, OIL BOLT

90545-300-000

$6.56

21

CIRCLIP

90651-MA5-671

$2.38

22

SCREW, FLAT (4X12)

93600-04012-0G

$0.84

22

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.84

23

BOLT, FLANGE (6X22)

96001-06022-07

$1.71

24

SCREW-WASHER (4X14)

93893-04014-07

$1.25

25

NUT, FLANGE (6MM)

94050-06000

$0.60

26

BOLT, FLANGE (6X20)

95701-06020-00

$1.63
