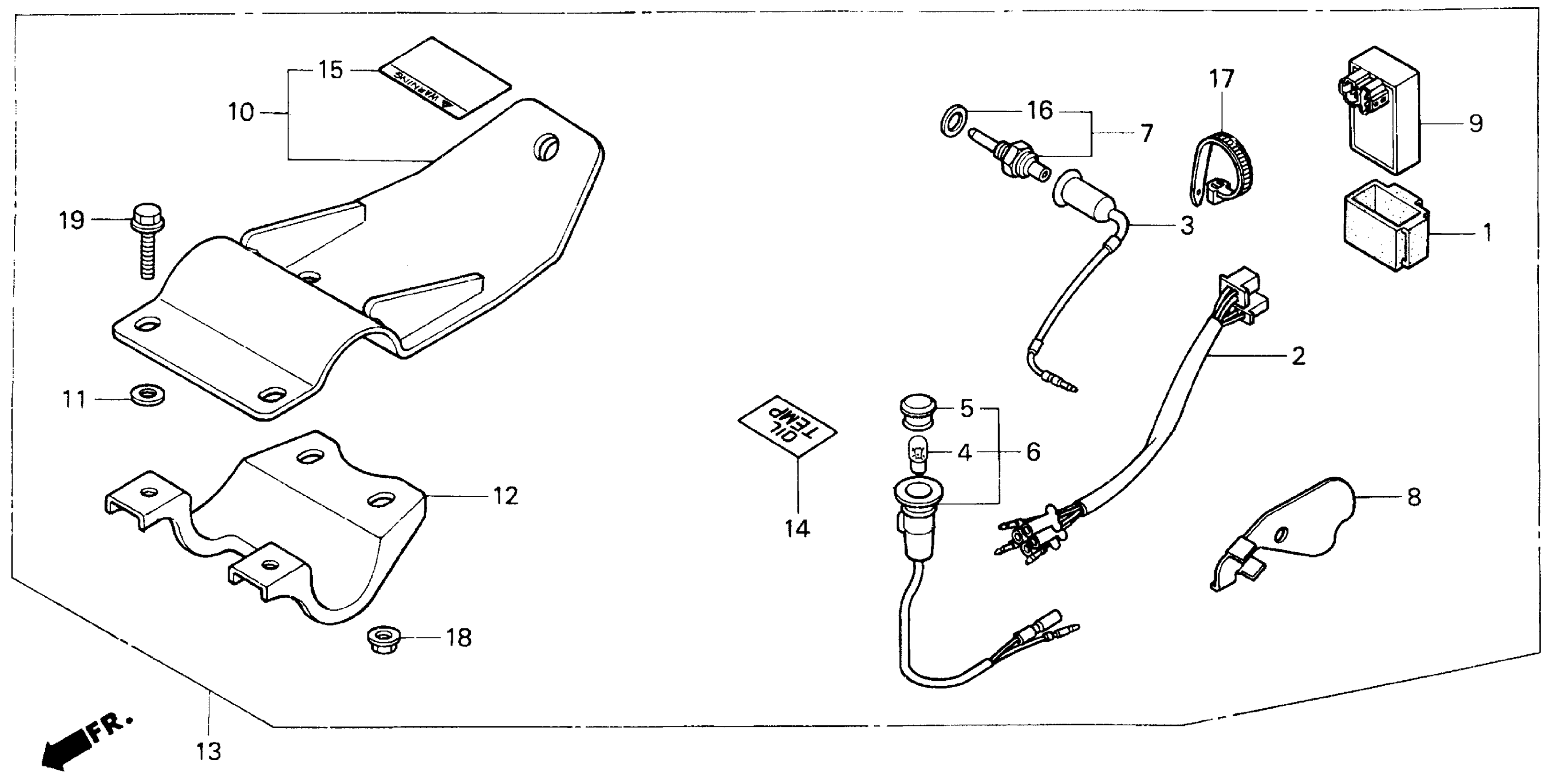

Honda TRX200DA (97) FOURTRAX 200 TYPE II, JPN, VIN# 1HFTE170-VA700001 TRAILER HITCH SET Diagram

#

Description
Price

1

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-GB6-000

$5.17

2

HARNESS C, TRAILER HITCH

32105-HF1-770

Unavailable

3

HARNESS B, TRAILER HITCH

32410-HF1-770

Unavailable

4

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

4

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

4

BULB (14V 3.4W) (NS)

37237-SA5-003

$4.17

4

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

5

LENS, SPEED WARNING (RED)

37561-MR7-000

$11.42

6

HARNESS A, TRAILER HITCH

37600-HF1-770

Unavailable

7

SENSOR ASSY., THERMOSTAT OIL (TOYO) This part replaces 37750-HA8-034.

37750-HC4-751

$62.59

7

SENSOR ASSY., THERMOSTAT OIL (TOYO)

37750-HC4-751

$62.59

7

SENSOR ASSY., THERMOSTAT OIL (TOYO) This part replaces 37750-HM5-630.

37750-HC4-751

$62.59

8

COVER, SWITCH HARNESS

37751-HF1-770

Unavailable

9

ALARM (NOT AVAILABLE)

38710-HC4-003

Unavailable

10

HITCH, TRAILER (NOT AVAILABLE)

50810-HF1-770

Unavailable

11

SPACER, TRAILER HITCH

50811-HF1-770

Unavailable

12

BRACKET, TRAILER HITCH (UPPER)

50812-HC4-000

Unavailable

13

HITCH SET, TRAILER (NOT AVAILABLE)

50820-HF1-750

Unavailable

14

LABEL, OIL TEMPERATURE

87128-HF1-770

Unavailable

14

LABEL, OIL TEMPERATURE This part replaces 87128-HF1-960.

87128-HF1-770

Unavailable

15

LABEL, TRAILER HITCH

87508-HF1-770

Unavailable

16

WASHER, SEALING

90401-HA8-000

$3.81

16

WASHER, SEALING This part replaces 90401-HC4-750.

90401-HA8-000

$3.81

17

BAND, WIRE HARNESS

90650-MA6-720

$4.15

18

NUT, FLANGE (10MM)

94050-10080

$3.24

19

BOLT, FLANGE (10X30)

95701-10030-08

$2.30
