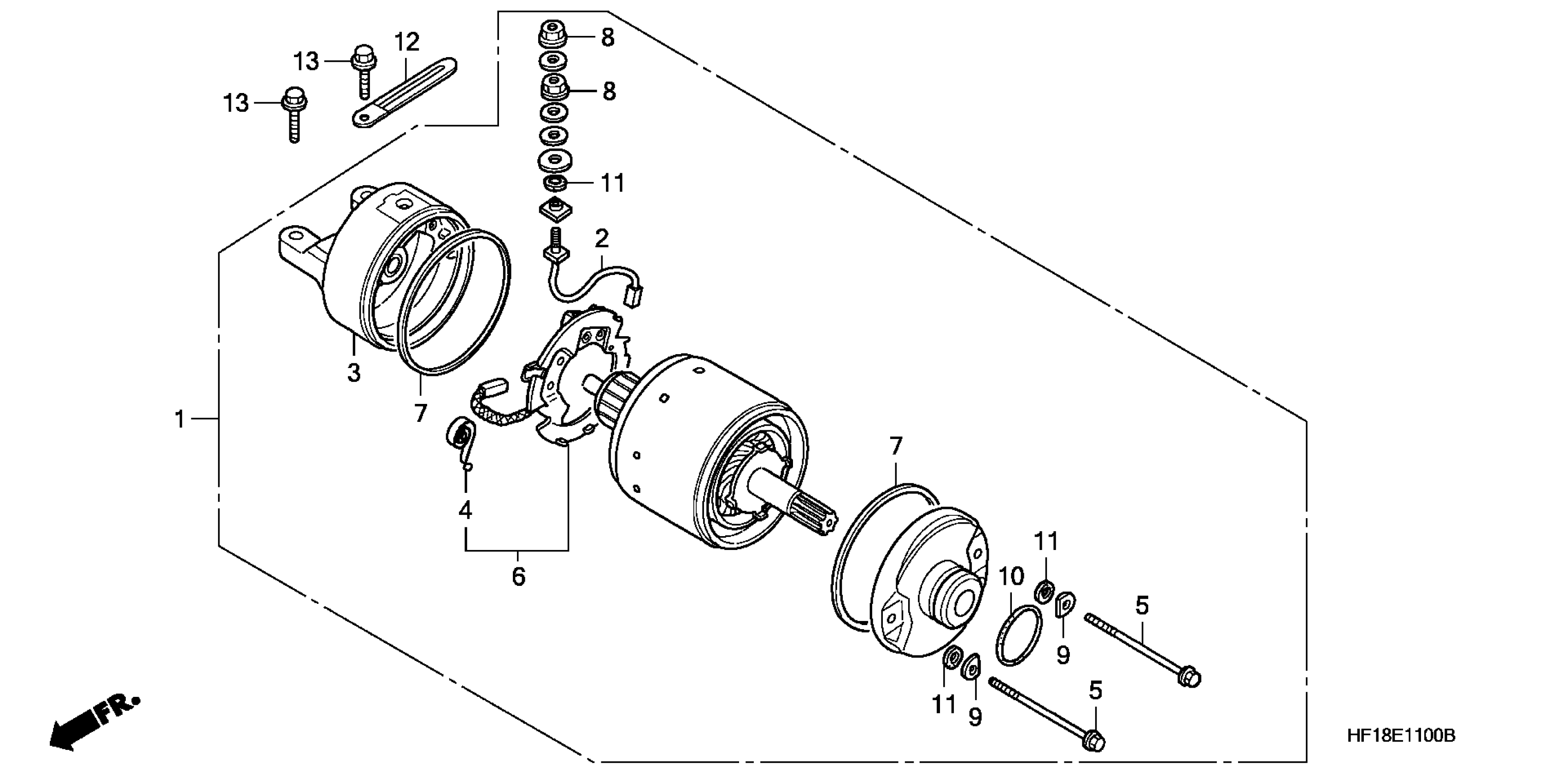

Honda TRX200DA (97) FOURTRAX 200 TYPE II, JPN, VIN# 1HFTE170-VA700001 STARTER MOTOR Diagram

#

Description

Price

1

STARTER MOTOR ASSY. (MITSUBA)

31200-HF1-013

Unavailable

2

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31201-KS5-901

$24.71

3

BRACKET, RR.

31203-HF1-003

Unavailable

4

SPRING, CARBON BRUSH

31204-KS5-901

$2.92

5

BOLT, SETTING

31205-KL8-711

$4.51

6

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31206-KW1-901

$26.42

7

RING

31207-KS5-901

$3.12

8

NUT-WASHER (6MM)

90071-MB0-000

$1.97

9

WASHER, STEEL PLATE

90122-MN4-008

$2.97

10

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

10

O-RING (24.4X3.1)

91312-MG7-003

$6.34

11

O-RING (4X2)

91320-MB0-000

$2.43

12

CLIP, WIRE

91405-671-000

$9.00

13

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

13

BOLT, FLANGE (6X22) This part replaces 95801-06022-00.

95701-06022-00

$1.80
