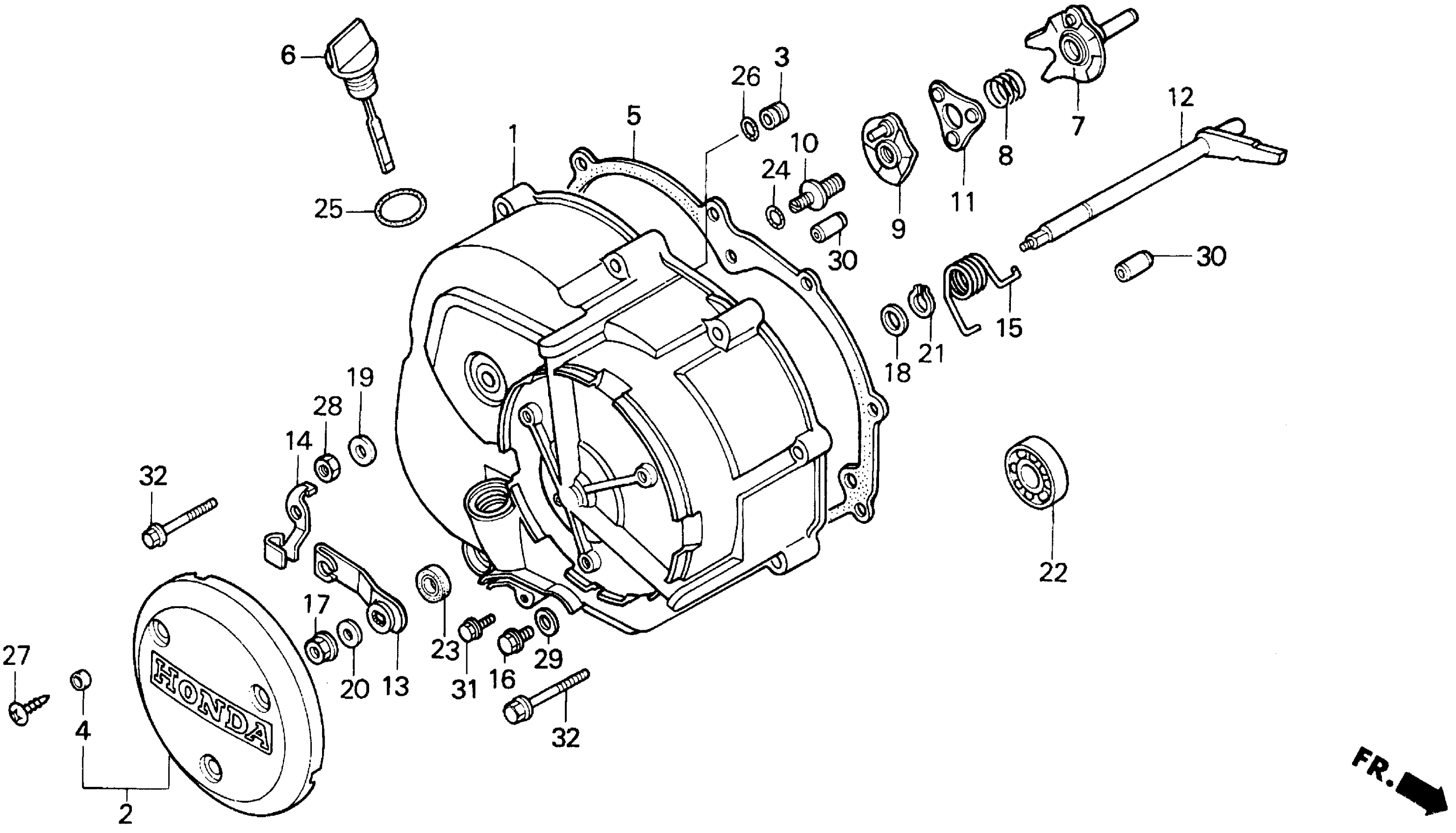

Honda TRX200DA (97) FOURTRAX 200 TYPE II, JPN, VIN# 1HFTE170-VA700001 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE

11330-HF1-670

Unavailable

2

PROTECTOR (NOT AVAILABLE)

11332-HB3-000

Unavailable

3

ORIFICE, OIL (1.5MM) (NOT AVAILABLE)

11334-HB7-000

Unavailable

4

COLLAR (NOT AVAILABLE)

11336-958-000

Unavailable

5

GASKET, R. CRANKCASE COVER

11393-HF1-910

Unavailable

6

DIPSTICK, OIL This part replaces 15650-HB3-840.

15650-HB3-000

Unavailable

7

PLATE, CLUTCH CAM

22820-HB3-020

Unavailable

8

SPRING, CAM PLATE SIDE

22825-HB3-003

$2.57

9

PLATE, CLUTCH LIFTER

22830-HB6-000

$21.17

10

BOLT, CLUTCH ADJUSTING

22846-HB3-000

$6.07

11

RETAINER, BALL

22860-HB3-000

$7.81

12

SHAFT, REVERSE STOPPER

24860-HB3-840

Unavailable

13

LEVER, REVERSE STOPPER

24865-HB3-840

Unavailable

14

HOLDER, REVERSE WIRE (NOT AVAILABLE)

24866-HB3-000

Unavailable

15

SPRING, REVERSE STOPPER

24867-HB3-000

Unavailable

16

BOLT, SPECIAL (12MM)

90132-HF1-670

Unavailable

17

NUT, U (6MM)

90301-473-003

$4.07

18

WASHER, THRUST (9X1)

90453-HB3-000

Unavailable

19

WASHER (8MM)

90485-040-000

$1.77

20

WASHER (6MM)

90502-HB3-000

$3.41

21

CIRCLIP (OUTER) (9MM) (NOT AVAILABLE)

90601-147-000

Unavailable

22

BEARING, RADIAL BALL (15X32X9)

91009-HF1-671

$22.40

23

OIL SEAL (9X18X5)

91204-HB3-004

$3.92

24

O-RING (8X1.7) (ARAI)

91306-HB3-003

$1.81

25

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

26

O-RING (5.5X1.4)

91319-ME5-003

$1.85

27

SCREW, TAPPING (6X16)

93903-36280

Unavailable

28

NUT, HEX. (8MM)

94030-08000

$1.49

29

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

30

PIN, DOWEL (8X14)

94301-08140

$2.25

31

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

32

BOLT, FLANGE (6X35)

96001-06035-00

$1.49
