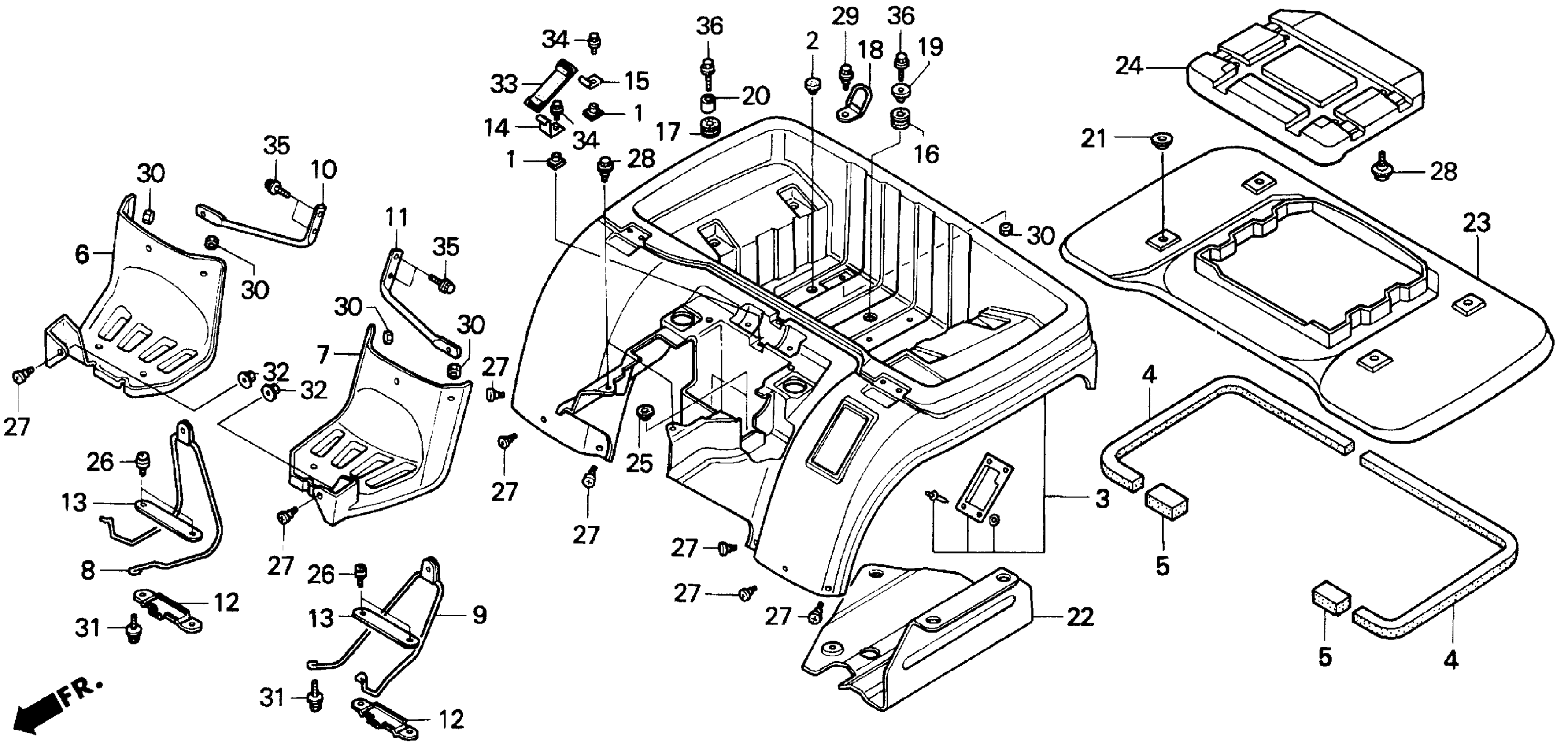

Honda TRX200DA (97) FOURTRAX 200 TYPE II, JPN, VIN# 1HFTE170-VA700001 REAR FENDER Diagram

#

Description
Price

1

NUT, SPECIAL (6MM)

61304-HB3-003

$2.78

2

RUBBER, SEAT STOPPER

77211-965-000

$8.67

3

FENDER, RR. *R109* (PASSION RED)

80100-HF1-960ZA

Unavailable

3

FENDER, RR. *G152* (ADVENTURE GREEN)

80100-HF1-960ZB

Unavailable

4

SEAL A, TRUNK LID (NOT AVAILABLE)

80102-HF1-960

Unavailable

5

SEAL B, TRUNK LID (NOT AVAILABLE)

80103-HF1-960

Unavailable

6

SPLASH GUARD, R. RR. *NH1* (BLACK)

80121-HF1-670ZA

Unavailable

7

SPLASH GUARD, L. RR. *NH1* (BLACK)

80122-HF1-670ZA

Unavailable

8

STAY, R. RR. SPLASH GUARD (NOT AVAILABLE)

80123-HF1-670

Unavailable

9

STAY, L. RR. SPLASH GUARD (NOT AVAILABLE)

80124-HF1-670

Unavailable

10

STAY, R. RR. FENDER

80125-HF1-670

Unavailable

11

STAY, L. RR. FENDER

80126-HF1-670

Unavailable

12

HOLDER, SPLASH GUARD (LOWER)

80127-HM5-850

$36.74

13

HOLDER, SPLASH GUARD (UPPER)

80128-HA7-830

$5.85

13

HOLDER, SPLASH GUARD (UPPER) This part replaces 80128-HM5-850.

80128-HA7-830

$5.85

14

STAY A, TOOL BOX

80131-HF1-910

Unavailable

15

STAY B, TOOL BOX

80132-HF1-910

Unavailable

16

RUBBER, RR. FENDER MOUNTING

80133-HF1-670

Unavailable

17

RUBBER, RR. FENDER MOUNTING

80133-HF1-880

Unavailable

18

HOOK A, RR. FENDER

80135-HF1-670

Unavailable

19

COLLAR (8X15)

80136-HF1-670

Unavailable

20

COLLAR (14X15)

80137-HF1-880

Unavailable

21

COLLAR (14X5) (NOT AVAILABLE)

80138-HF1-960

Unavailable

22

PROTECTOR, HEAT

80139-HF1-670

Unavailable

23

LID, RR. FENDER *R109* (PASSION RED)

80211-HF1-960ZA

Unavailable

23

LID, RR. FENDER *G152* (ADVENTURE GREEN) (NOT AVAILABLE)

80211-HF1-960ZB

Unavailable

24

SUB-LID, RR. FENDER *R109* (PASSION RED)

80213-HF1-880ZA

Unavailable

24

SUB-LID, RR. FENDER *G152* (ADVENTURE GREEN)

80213-HF1-880ZB

Unavailable

25

RUBBER, CONNECTOR BOX SETTING (NOT AVAILABLE)

83619-KV3-700

Unavailable

26

SCREW, SPLASH GUARD

90103-HC4-770

$2.23

27

SCREW, SPECIAL (6MM)

90103-HF1-670

$6.08

28

BOLT, FLANGE (6X14)

90111-HC4-000

$2.99

29

BOLT, FLANGE (6MM)

90111-HF1-670

Unavailable

30

NUT, FLANGE (6MM)

90301-634-670

$9.23

31

BOLT-WASHER (6X16)

93404-06016-07

$1.55

32

NUT, FLANGE (6MM)

94050-06070

$1.49

33

BAND A, BATTERY

95012-11001

$2.92

34

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

35

BOLT, FLANGE (6X16)

95701-06016-07

$1.55

36

BOLT, FLANGE (8X30)

95701-08030-07

$2.28
